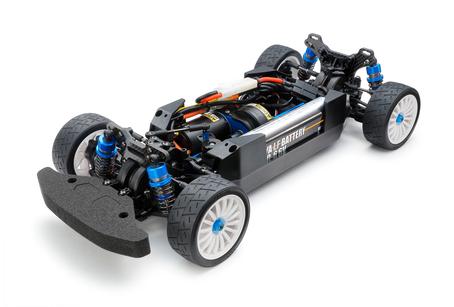

Tamiya Rc Xv-02Rs Pro Chassis Kit

The XV-02 RS Pro is an on-road variant of the rally XV-02 platform, built for precision and performance. Its carbon fiber-reinforced lower chassis, aluminum-cylinder oil dampers, and 3.5mm thick carbon fiber damper stays provide rigidity and excellent handling. The 4WD layout with adjustable differential gears, longitudinal battery placement, and fully independent double wishbone suspension ensures superb balance and cornering response, making it ideal for competitive on-road R/C enthusiasts.

Features

• Scale: 1/10
• Chassis: XV-02 with carbon fiber-reinforced rigid lower chassis

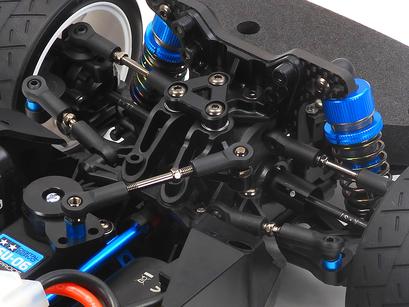

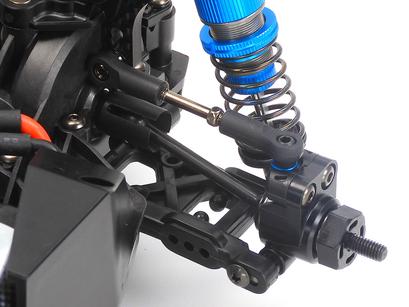

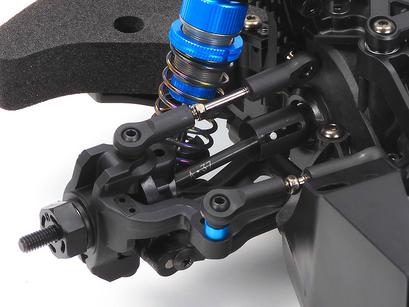

• Suspension: Fully independent double wishbone

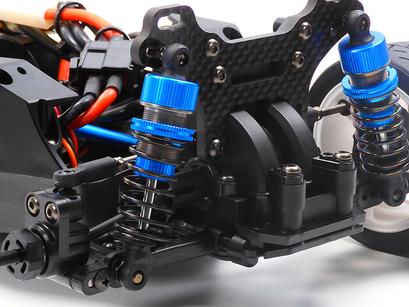

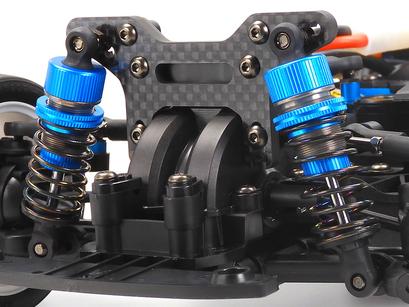

• Shock Dampers: Aluminum-cylinder oil-filled dampers with 3.5mm carbon fiber damper stays

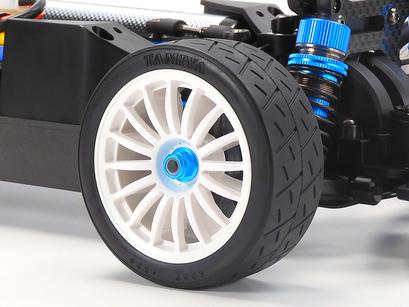

• Wheels/Tires: 18-spoke wheels with racing semi-slick tires

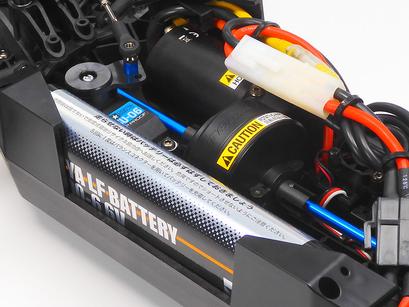

• Motor Layout: Front midship with equal-length front and rear drive shafts
• Differential Gears: Two 39T and one 40T gears for customizable drive balance

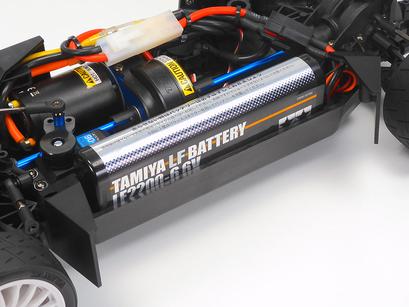

• Battery Placement: Longitudinal center-left for optimal balance
• Additional Features: Aluminum servo mount, front/rear universal drive shafts, flat chassis bottom, 6° caster blocks

Specifications

• Adjustable Gear Ratio: Yes
• Bearings: Full ball bearings
• Chassis Material: FRP (Fiberglass Reinforced Plastic)
• Construction Type: Assembly Kit
• Differential Type: Gear Oil-Filled
• Drive Type: 4WD
• Required to Complete: 2-channel radio, steering servo, ESC, 7.2–7.4V battery & charger, 540 motor, 190mm body set
• Shock Damper Type: Oil-filled
• Terrain: On-Road
