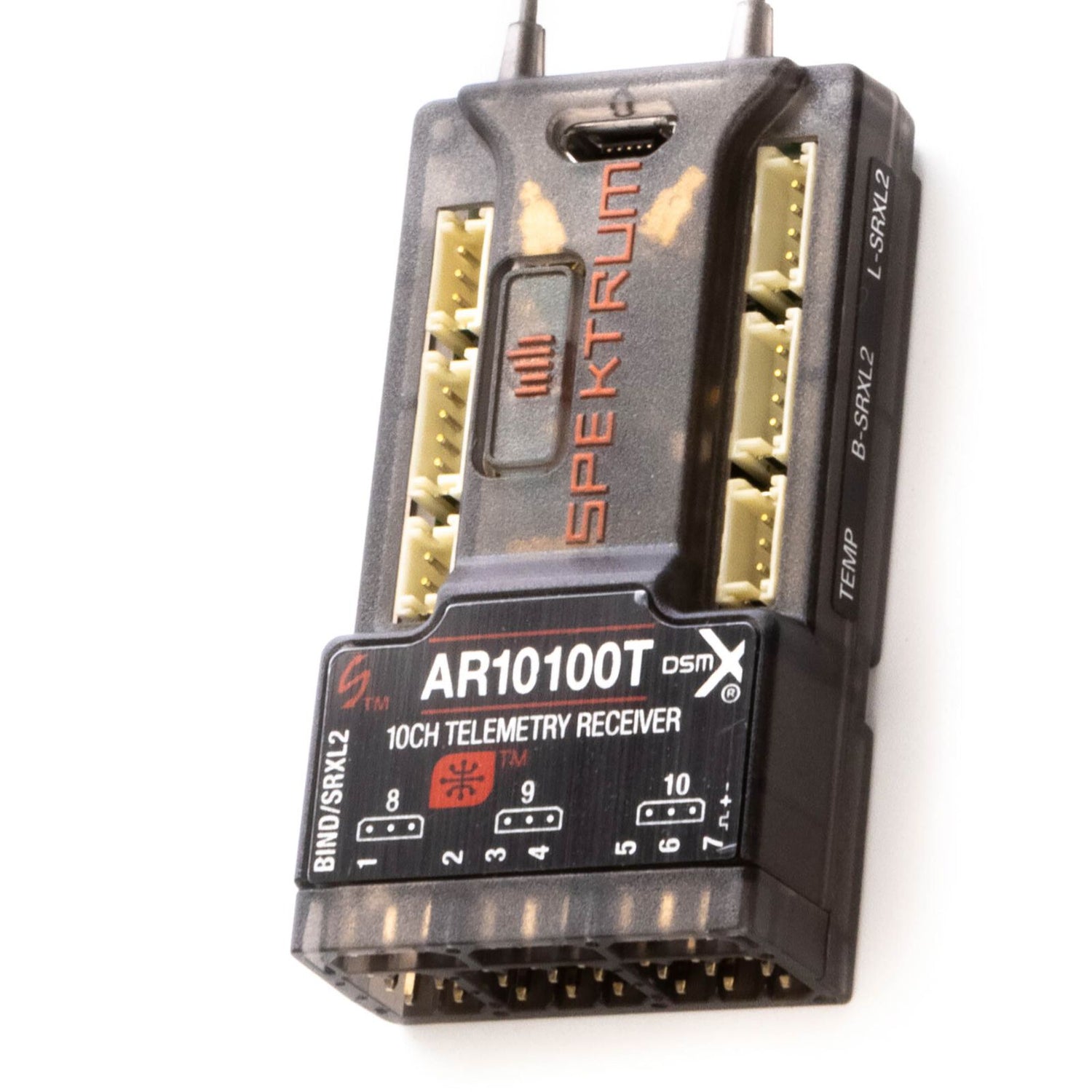

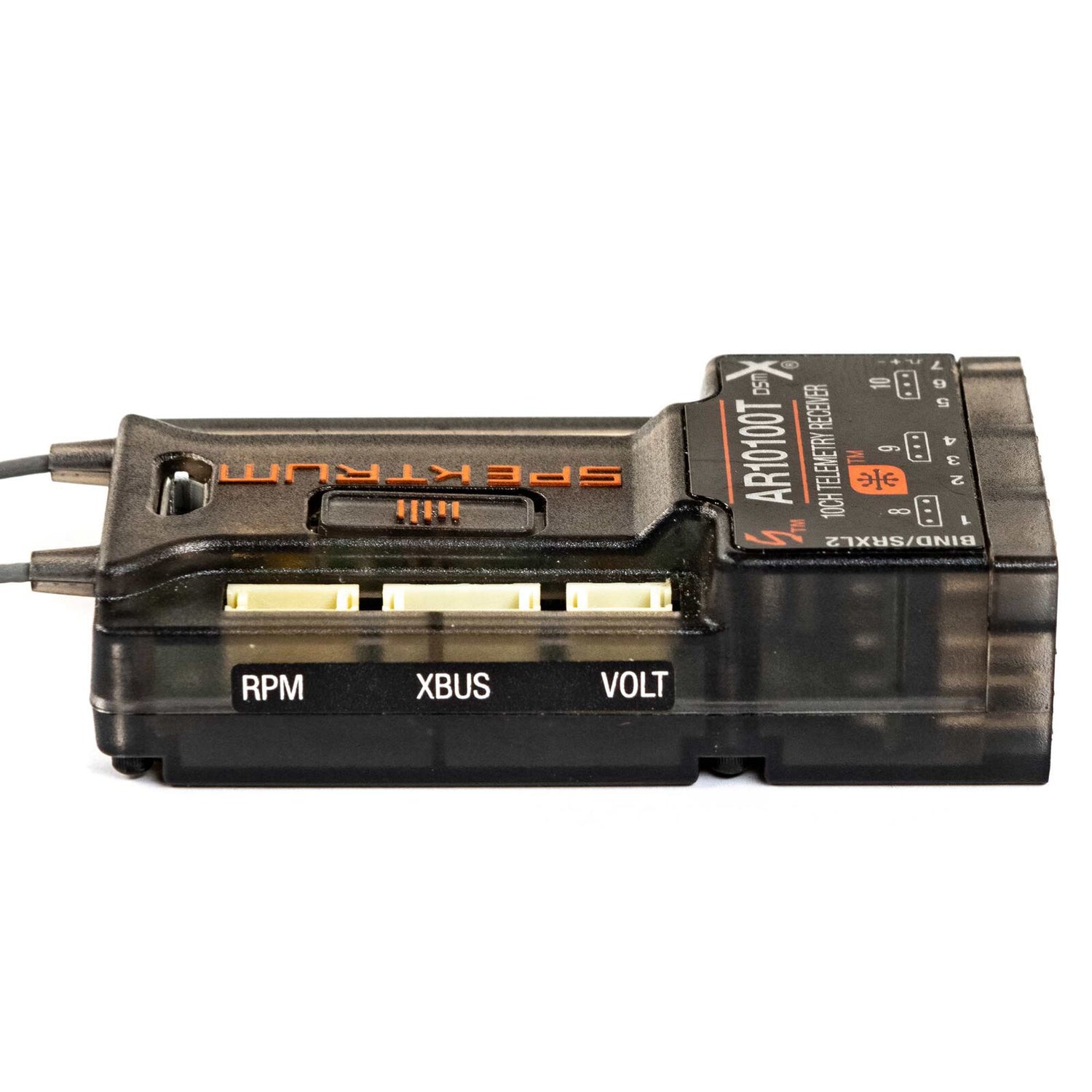

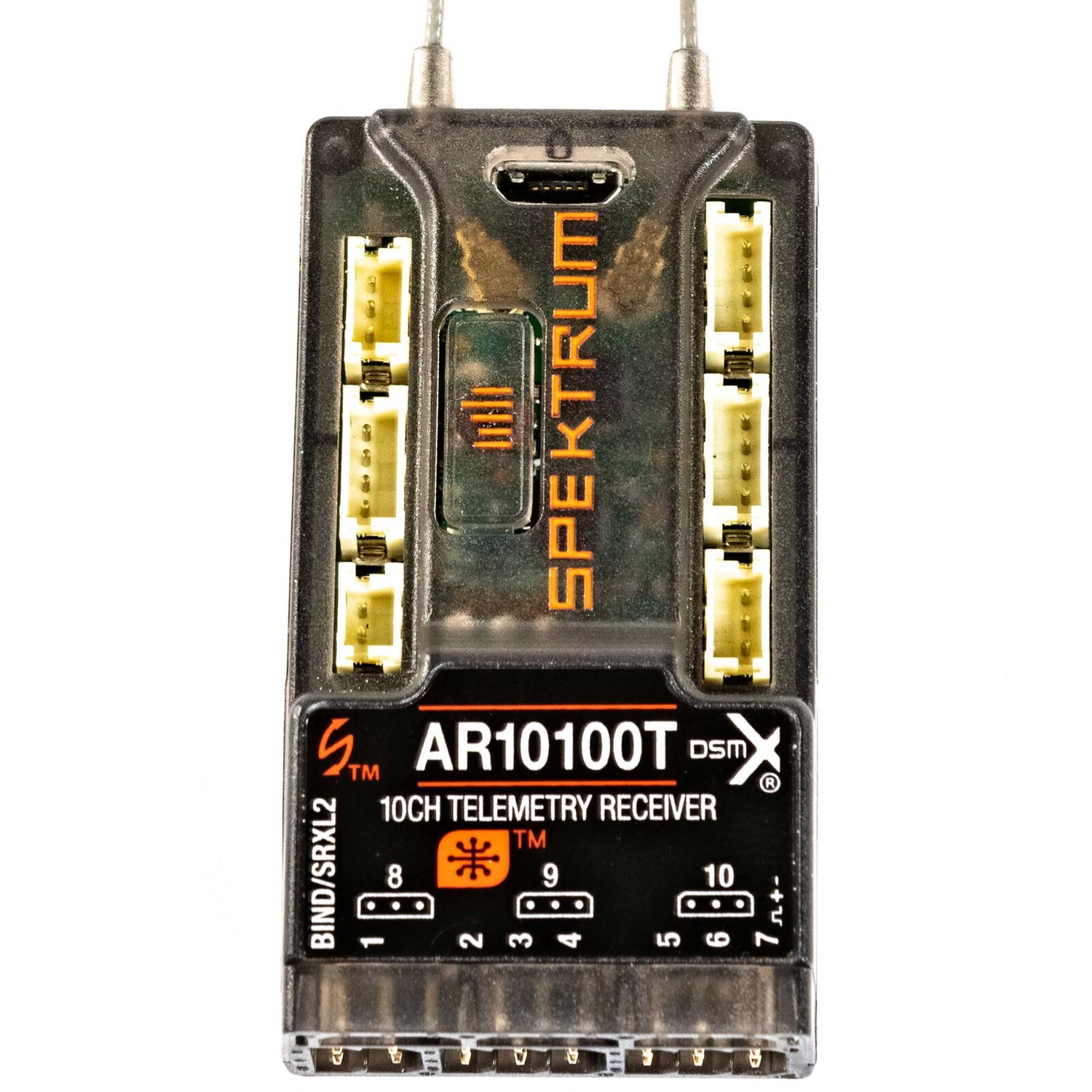

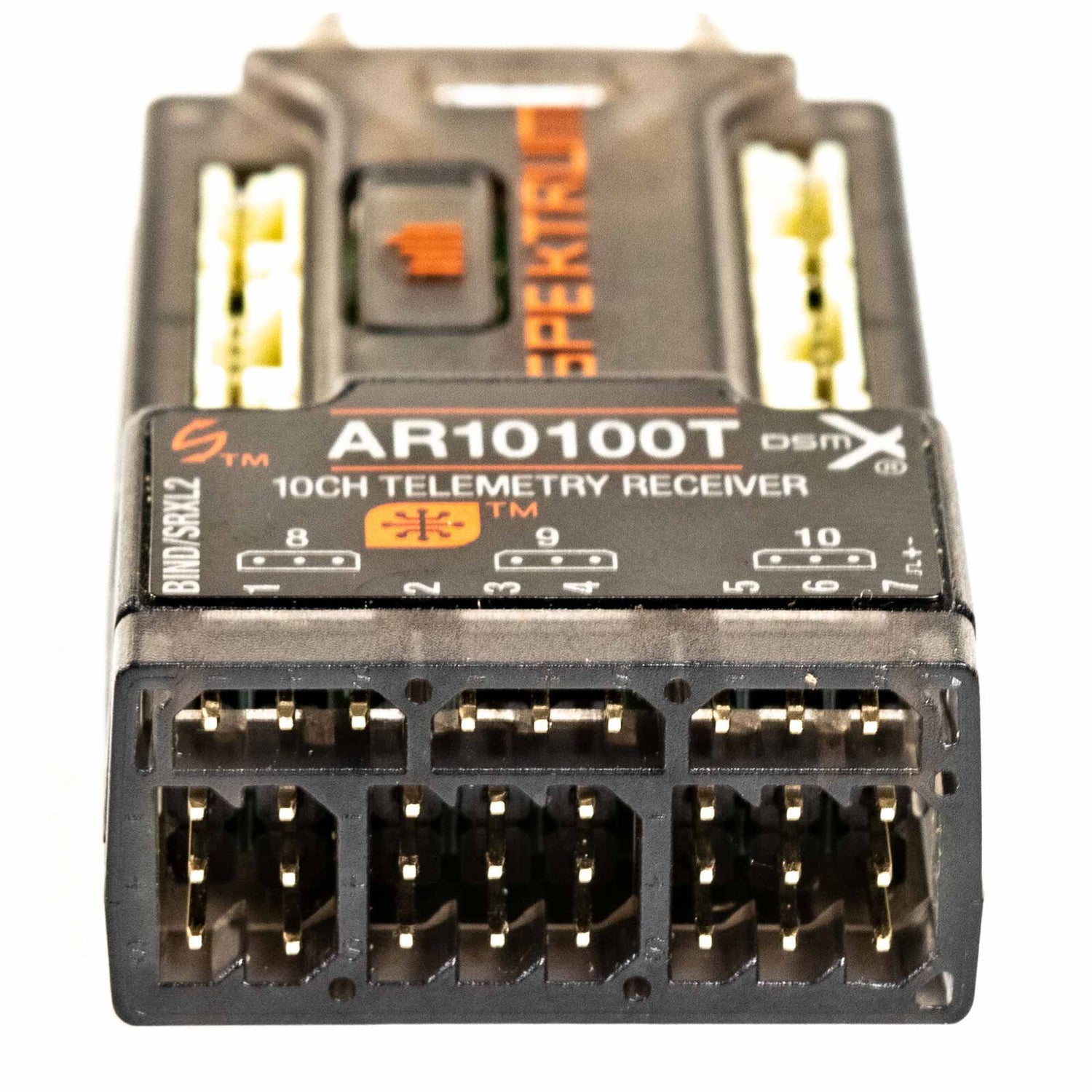

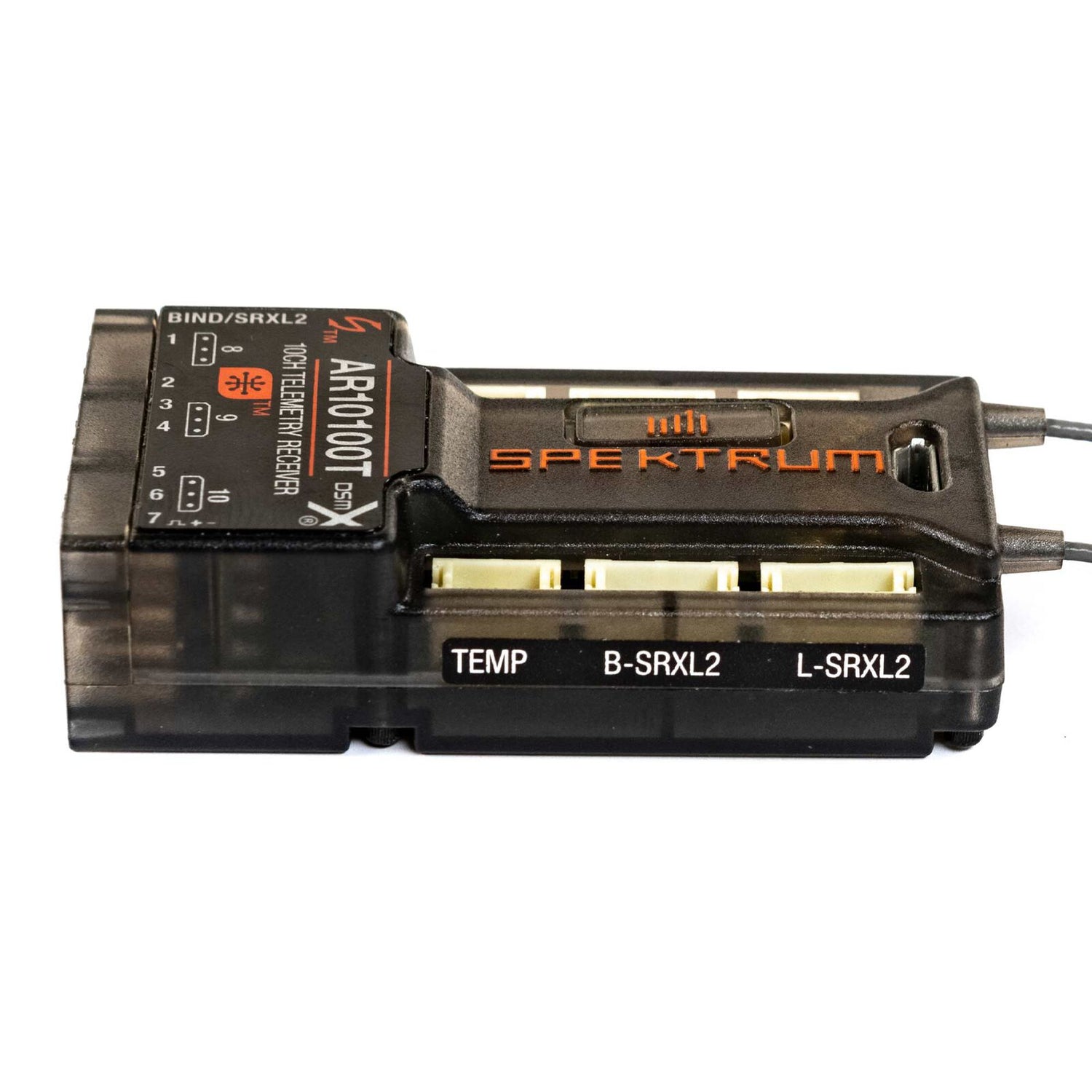

Spektrum AR10100T DSMX 10-Channel Telemetry Receiver

The Spektrum AR10100T is a 10-channel DSM2/DSMX receiver designed for a wide range of aircraft, offering full-range telemetry and an integrated barometer for altitude and vario data. It includes ports for XBUS, RPM, voltage, and temperature sensors, plus Smart ESC compatibility for simple one-wire telemetry. The receiver provides dual SRXL2 ports for remote receiver redundancy, a Micro USB port for firmware updates, and a bind button for easy setup. Forward Programming allows detailed failsafe and system configuration directly from compatible Spektrum transmitters.

Features

• Works with all Spektrum DSM2/DSMX transmitters
• Compact size fits parkflyers, sport models, and giant scale aircraft
• Full telemetry with built-in barometer for altitude/vario
• Ports for voltage, RPM, temperature, and XBUS expansion
• Micro USB port for firmware updates and registration
• Bind button for plug-free binding
• Dual external antennas for robust RF coverage
• Supports up to two SRXL2 remote receivers for redundancy
• Smart ESC compatible for one-wire telemetry
• End-pin layout for clean installation
• Forward Programming for customizable failsafe and system parameters

Specifications

• Antenna Length: 7.32" (186 mm)
• Band: 2.4GHz
• Bind Method: Bind Button
• Channels: 10
• Data Port: Yes
• Dimensions: 55 × 30 × 15 mm (2.16 × 1.18 × 0.59 in)
• Failsafe: Yes
• Forward Programming: Yes
• Input Voltage: 3.5–9V
• Integrated Variometer: Yes
• Modulation: DSMX / DSM2
• Product Application: Air, Helicopters, Sailplanes
• Product Weight: 18 g
• Programmable: Yes
• Range: Full
• Remote Receiver Ports: 2
• Serial Out: SRXL2
• Technology: Standard
• Telemetry: Yes
• Telemetry Range: Full
• Water-Resistant: No

In The Box

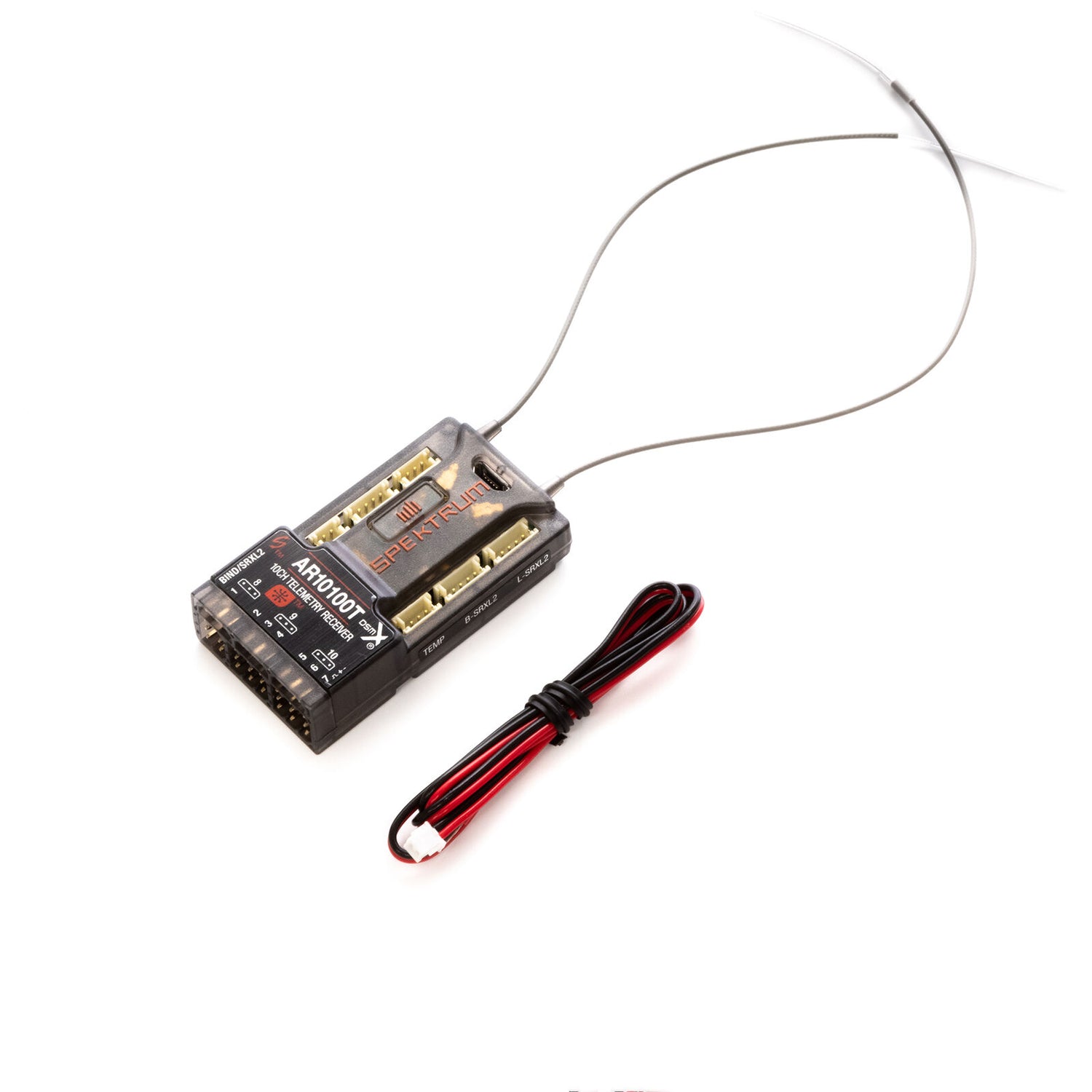

• AR10100T DSMX 10-Channel Telemetry Receiver (1)
• Spektrum Flight Pack Voltage Sensor (1)
• Product Manual (1)

Needed to Complete

• Telemetry-capable DSMX transmitter (1)
• Servo extensions if required
