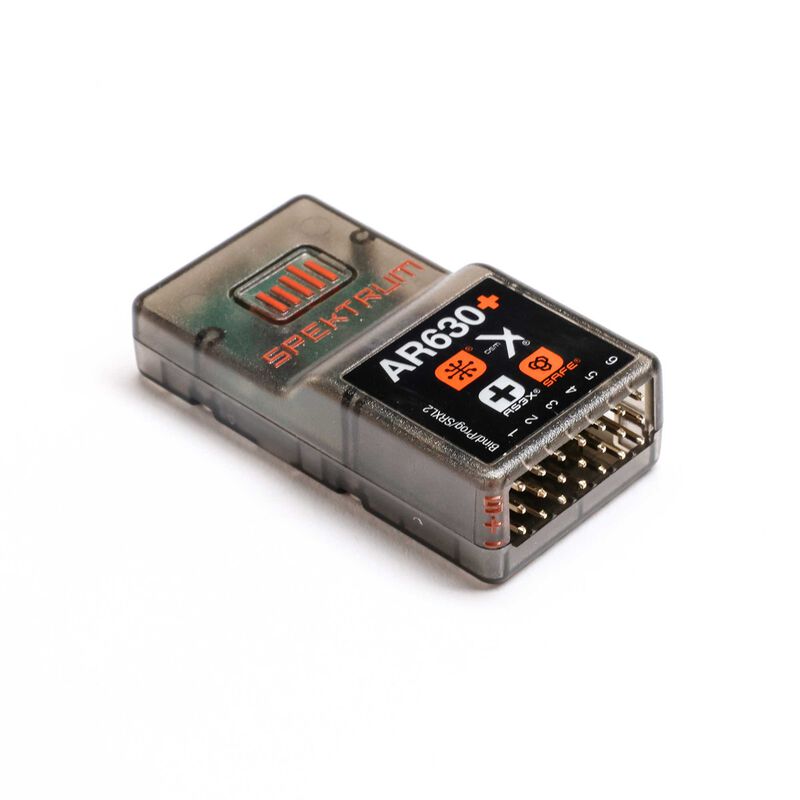

Spektrum AR630+ DSMX 6-Channel AS3X+ & SAFE Receiver

The AR630+ is a 6-channel AS3X+ and SAFE-capable receiver with fly-by-range telemetry, SmartSafe failsafe options, and a built-in bind button for plug-free binding. It supports Smart ESC and Smart battery telemetry, automatically detecting Smart-compatible ESCs through the throttle port. Designed for airplanes with forward programming compatibility, the AR630+ provides stabilized performance, Smart Model File support, and reliable DSMX operation.

Features

• End-pin lightweight hard-case design
• Bind button for quick, plug-free binding
• Fly-by telemetry support
• Standard servo connectors
• Improved gyro filtering and heading hold
• Stop Lock and Release Rate parameters
• Supports canard and thrust-vectoring setups

Specifications

• Application: Air
• Band: 2.4GHz
• Bind Method: Bind Button
• Channels: 6
• Dimensions: 1.85 × 0.98 × 0.51 in (47 × 25 × 13 mm)
• Failsafe: Yes
• Forward Programming: Yes
• Input Voltage: 3.5–9V
• Integrated Variometer: No
• Modulation: DSMX / DSM2
• Product Height: 0.51" (13 mm)
• Product Length: 1.85" (47 mm)
• Product Weight: 0.34 oz (9.5 g)
• Product Width: 0.98" (25 mm)
• Range: Full
• Remote Receiver Ports: 0
• Resolution: 2048
• Serial Out: SRXL2
• Technology: AS3X+, SAFE
• Telemetry: Yes
• Telemetry Range: Fly-By
