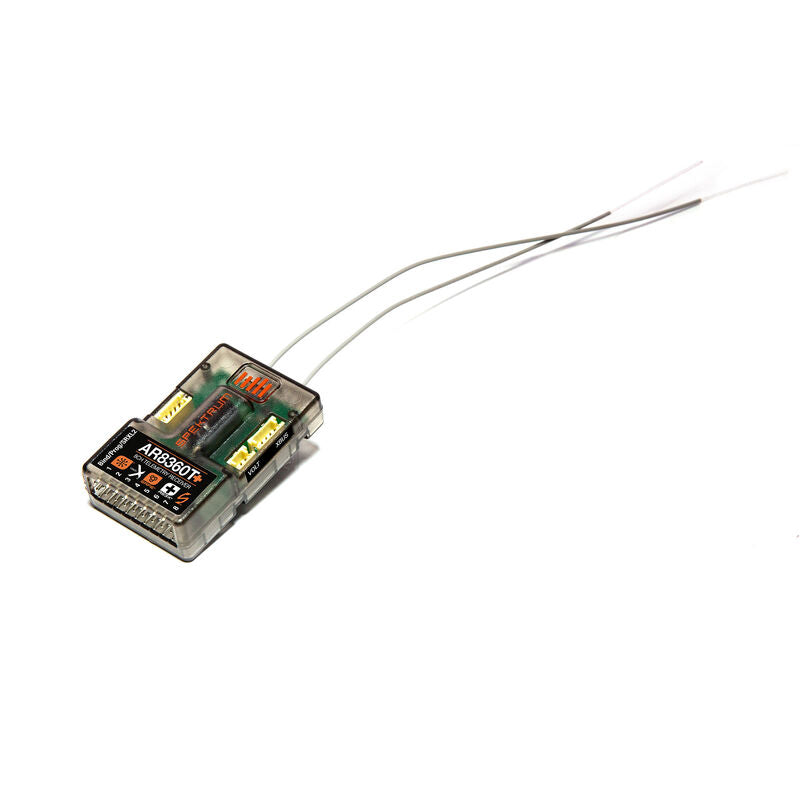

Spektrum AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver

The AR8360T+ is an 8-channel telemetry receiver with full-range performance, integrated barometer for altitude and vario data, and SmartSafe failsafe options. It supports SRXL2 remote receivers for added RF redundancy and provides one-wire Smart ESC telemetry. Setup for AS3X+ and SAFE is done directly through forward programming on compatible Spektrum transmitters. Designed for airplanes and sailplanes, it offers reliable control, simplified binding, and expanded telemetry capability through XBUS and temperature ports.

Features

• Bind button for simple plug-free binding
• Dual external antennas for strong all-angle RF coverage
• Supports SRXL2 remote receiver for added redundancy
• Compact end-pin layout for easier installation
• AS3X+ and SAFE setup via forward programming
• Compatible with Smart ESCs for one-wire telemetry
• Forward Programming for detailed failsafe and tuning options
• Improved gyro filtering and heading hold
• Stop Lock and Release Rate parameters
• Supports canard and thrust vectoring configurations

Specifications

• Antenna Length: 6.1" (155 mm)
• Application: Airplane, Sailplane
• Band: 2.4GHz
• Bind Method: Bind Button
• Channels: 8
• Failsafe: Yes
• Forward Programming: Yes
• Input Voltage: 3.5–9V
• Integrated Variometer: Yes
• Modulation: DSMX
• Product Height: 0.59" (15 mm)
• Product Length: 1.92" (49 mm)
• Product Weight: 0.56 oz (16 g)
• Product Width: 1.2" (30 mm)
• Range: Full
• Remote Receiver Ports: 1
• Resolution: 2048
• Serial Out: SRXL2
• Technology: AS3X+, SAFE
• Telemetry: Yes
• Telemetry Range: Full

In The Box

• AR8360T+ DSMX 8-Channel AS3X+ & SAFE Telemetry Receiver (1)
• Product Manual (1)

Needed to Complete

• Spektrum Telemetry-Capable Transmitter (1)
