HORIZON HOBBY  |  SKU: CSE010011507

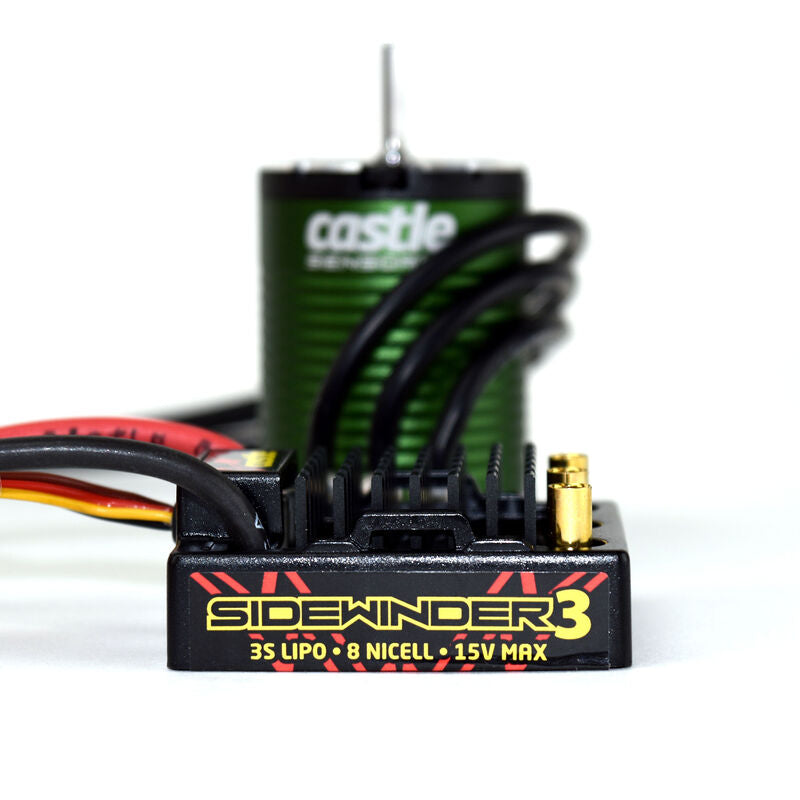

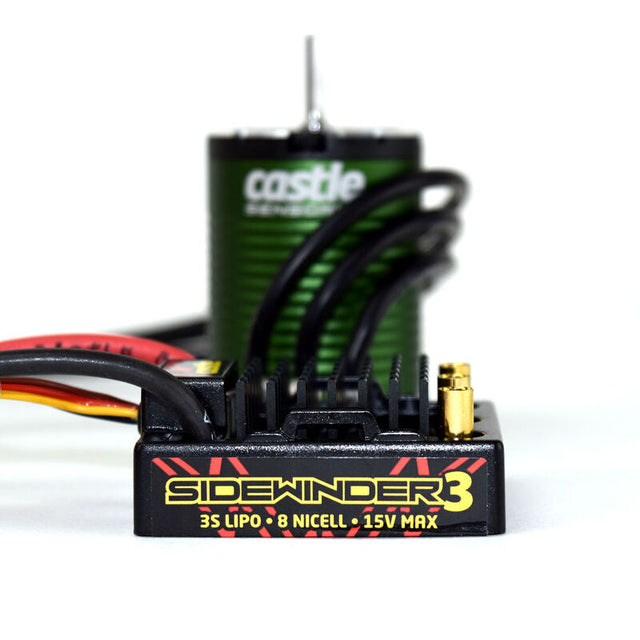

1/10 SV3 Sidewinder Waterproof ESC/1406-6900Kv Brushless Motor Combo: 4mm Bullet - CSE010011507

Regular price $139.95


Overview

The Sidewinder 3, is the perfect waterproof (not intended for operation while completely submerged in liquid) combo for 1:10 scale off-road and on-road vehicles running up to 3S LiPo. It sports updated circuitry for faster response time and improved reliability. This combo now comes with our improved 4-pole, 12-slot sensored motor that boasts exceptional efficiency. While the sensored capabilities of the motor cannot be utilized with the Sidewinder 3 (motor will operate in sensorless mode), users will benefit as the sensored motor is rebuildable (parts available soon), and this design even allows modelers to replace damaged motor wires. The Sidewinder 3 is ready to run out of the box and is programmable via your transmitter. There are also many more programmable features that may be accessed using your Windows PC and a Castle Link USB adapter (sold separately) or a Field Link card (sold separately). Drivers can tune their favorite settings such as brake and throttle curves, throttle response, drag brake and many other parameters as well as download new firmware updates and feature upgrades as they become available. This combo includes a Sidewinder 3 ESC and 1406-6900Kv sensored motor. The 1406-6900kv motor is a great upgrade for 1/10th scale on-road cars for 2s use. It can also be used in some lighter off-road 1/10th stadium trucks and buggies with conservative gearing. This combo is not for use in 2WD or 4WD short-course trucks. This Sidewinder 3 Combo packs a lot power and will deliver exceptional response and performance right out of the box!

Key Features

  • Input voltage MAX: 3s LiPo
  • ESC Size: Length: 1.93 in Width: 1.48 in Height: 0.79 in (1.96 oz)
  • MOTOR Size: Length: 49.5mm Diameter: 36mm and M3 @ 25mm Mounting Holes
  • Motor is rebuildable
  • Recommended vehicle weight: Up to 5 lbs. with battery, ready-to-run.

Product Specifications

Motor Design Inrunner
Drive Type Brushless & Brushed Compatible
Input Voltage 6-8 cells NiMH, 2-3S LiPo
RPM/Volt (Kv) 5700Kv
BEC Voltage 5V
Bushing Or Bearing Bearing
Programmable Yes
Connector Type 4mm Bullet
Motor Type Brushless
Speed Control Brushless - Sensorless
