EFLITE | SKU:

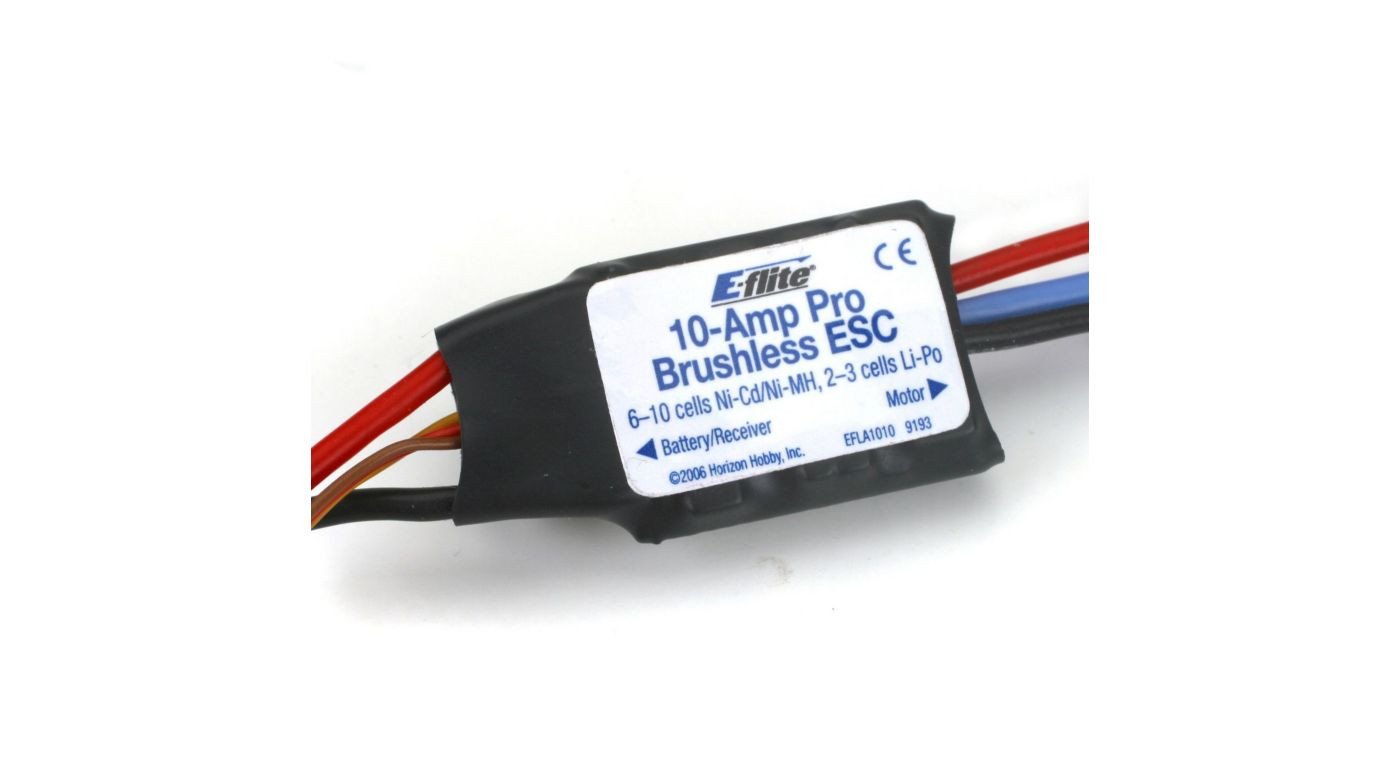

10-Amp Pro Brushless ESC (EFLA1010)
Regular price
$27.99
Unit price
/
Unavailable
10-Amp Pro Brushless ESC (EFLA1010) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
This controller has been designed for use in radio control aircraft and to support continuous currents of up to 10 amps when using 2€“3 cell Li-Po battery packs and up to 4 sub-micro servos. Standard features include advance BEC and safe power-arming along with programmable features such as low-voltage cutoff, braking, timing and throttle input range.
Key Features
- Up to 10-amp continuous current with proper air flow
- Programmable motor braking
- Safe power-arm mode prevents accidental starts
- Programmable low-voltage cutoff with settings for 2-cell Li-Po (6V), 3-cell Li-Po (9V) or 70% of battery starting voltage
- Programmable throttle input range (1.1ms€“1.9ms or Auto Select)
- Auto motor shutdown if signal is lost or there is interference
- Programmable timing€”2 user-selectable ranges for use with a large variety of brushless motors
- Pre-wired connectors€”JST on battery input and 2mm female gold bullets on motor output leads
- Soft start
Specs
| Amperage: | 20 & Under |
| Brakes: | Yes - Programmable |
| Cells w/BEC: | 2-3S Li-Po or 6-10 Ni-MH/Ni-Cd |
| Input Connector Types: | JST |
| Momentary Peak Current: | 12A (15 sec) |
| Output Connector Types: | 20AWG with 2mm female gold bullet connectors |
