HORIZON HOBBY | SKU:
SEHREEFS145

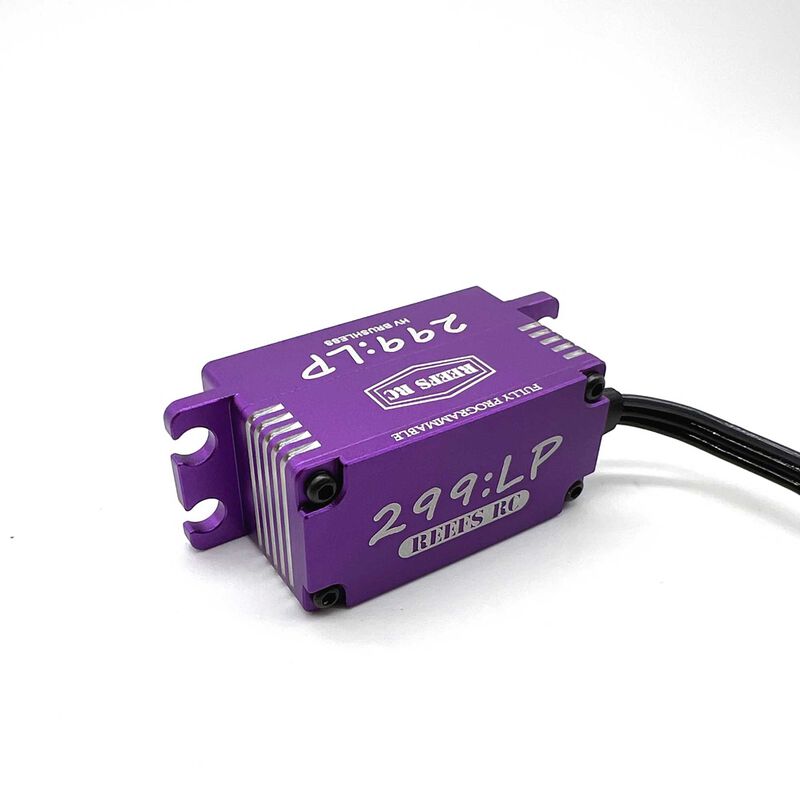

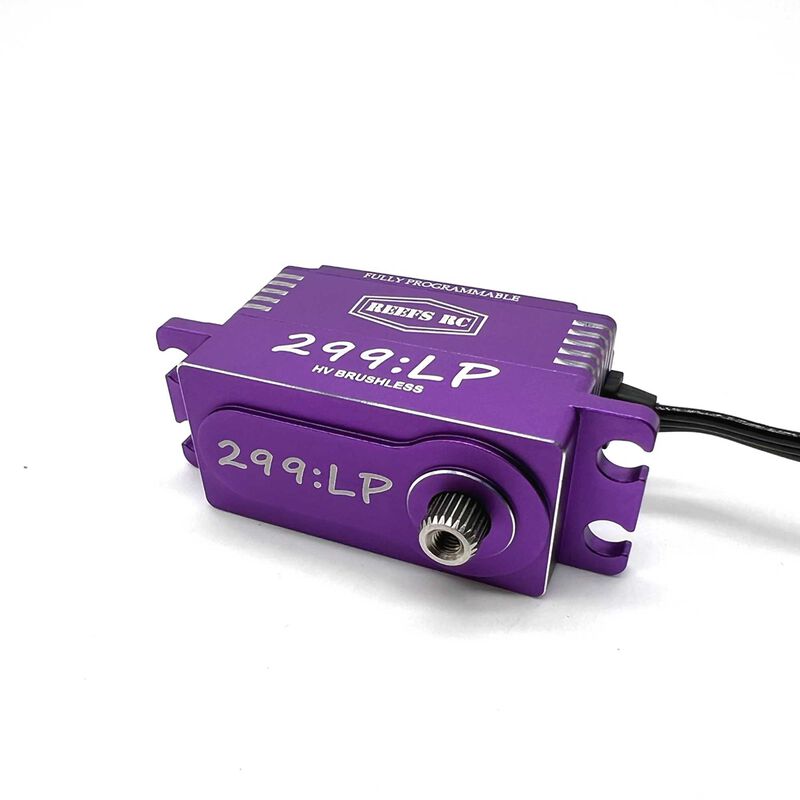

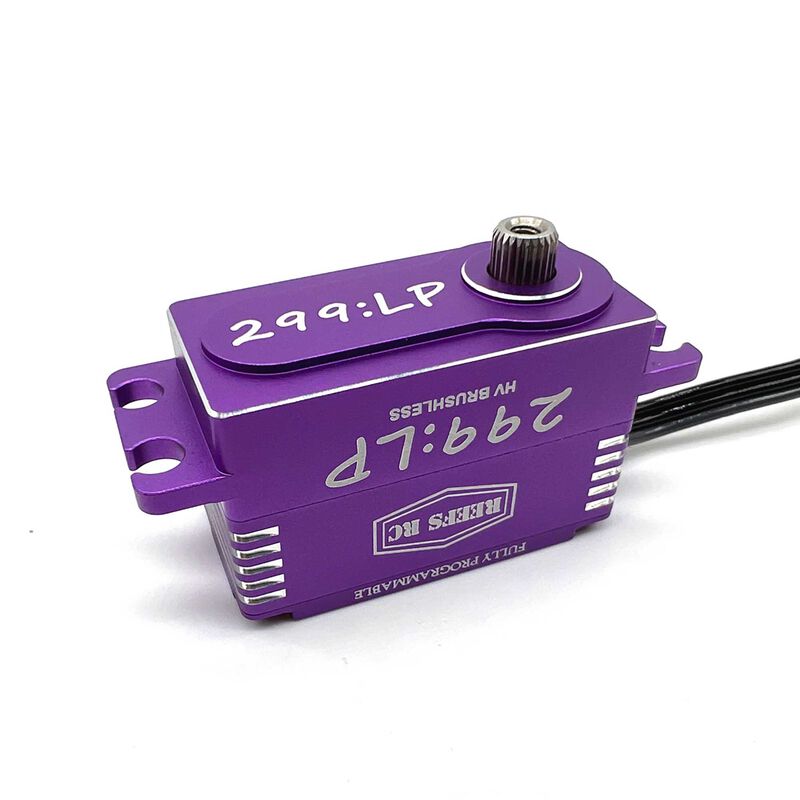

299:LP Low Profile Digital Metal Gear Waterproof Programmable Servo, Purple - SEHREEFS145
Regular price
$129.99
Unit price
/
Unavailable
299:LP Low Profile Digital Metal Gear Waterproof Programmable Servo, Purple - SEHREEFS145 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Details
Features
- FULLY PROGRAMMABLE
- High Torque High Speed
- Brushless Low Pro Servo
- SUBMARINE WATERPROOF: 7 Point Seals
- Magnetic Angle Sensor
- Voltage 4.8V - 8.4V
- REEFS LINK required for Programming (Optional)
- Internal: Steel Gears
- CNC Aluminum Casing
- Bearing Type: 2 Ball Bearings
- Weight: 2.3oz

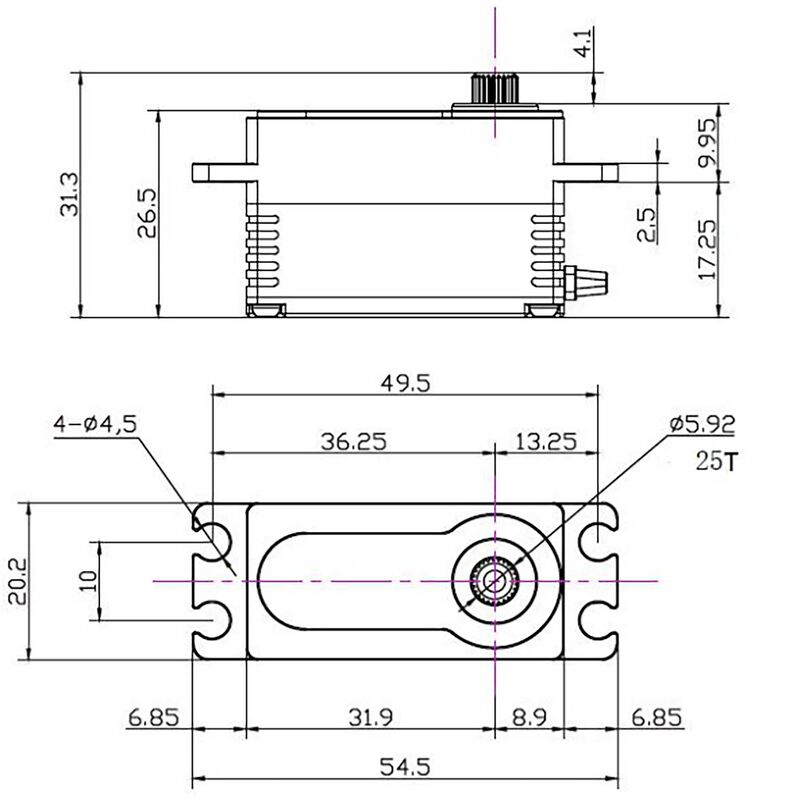

- Dimension: 1.6" x 0.79" x 1.16" (LWH)
- Torque: 350oz @ 6v/ 420oz @7.4v/ 460oz @8.4v
- Speed: .09sec @6v/.08sec @7.4v/.065sec @8.4v
- Spline: 25T / Dead Band Width: 2μs
- BEC not required, but recommended for max performance
Product Specifications
| Application | 1/10 - 1/8 Cars, Trucks |
| Product Weight | 2.3oz (65g) |
| Spline Count | 25 - Tooth |
| Water-Resistant | Yes |
| Connector Type | Universal |
| Maximum Servo Speed | 0.09 sec/60 deg @ 6.0V, 0.08 sec/60 deg @ 7.4V, 0.065 sec/60 deg @ 8.4V |
| Bearing | Dual Ball Bearing |
| Product Length | 1.6" (41 mm) |
| Bushing Or Bearing | Bearing |
| Maximum Servo Torque | 350oz/in @ 6.0V, 420oz/in @ 7.4V, 460oz/in @ 8.4V |
| Servo Operating Voltage | 4.8 - 8.4V (HV) |
| Programmable | Yes |
| Servo Size Category | Standard |
| Deadband | 2µs |
| Product Height | 1.16" (29 mm) |
| Servo Type | Digital |
| Product Width | 0.79" (20 mm) |
