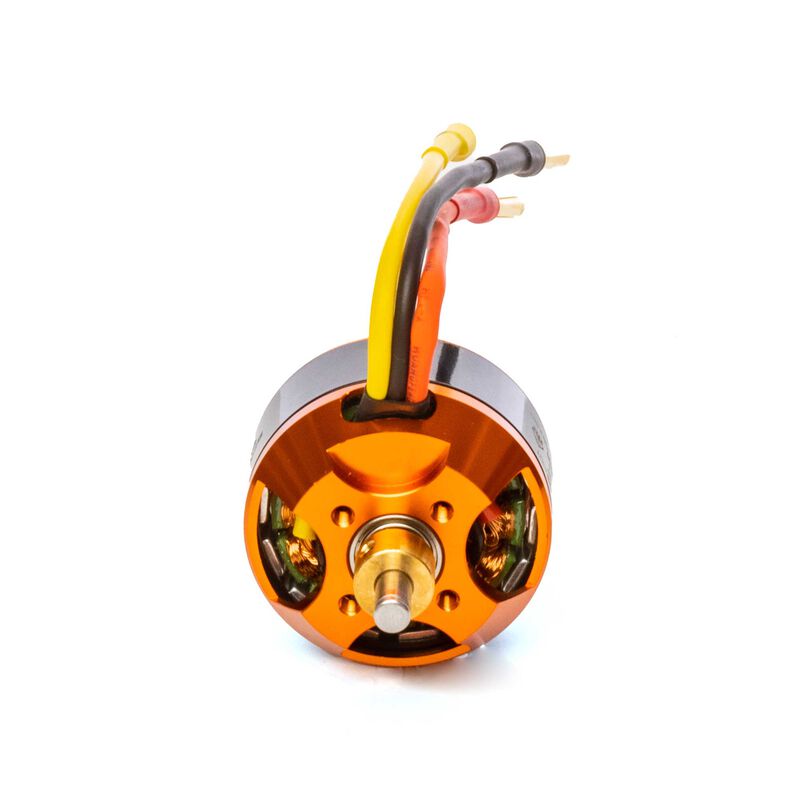

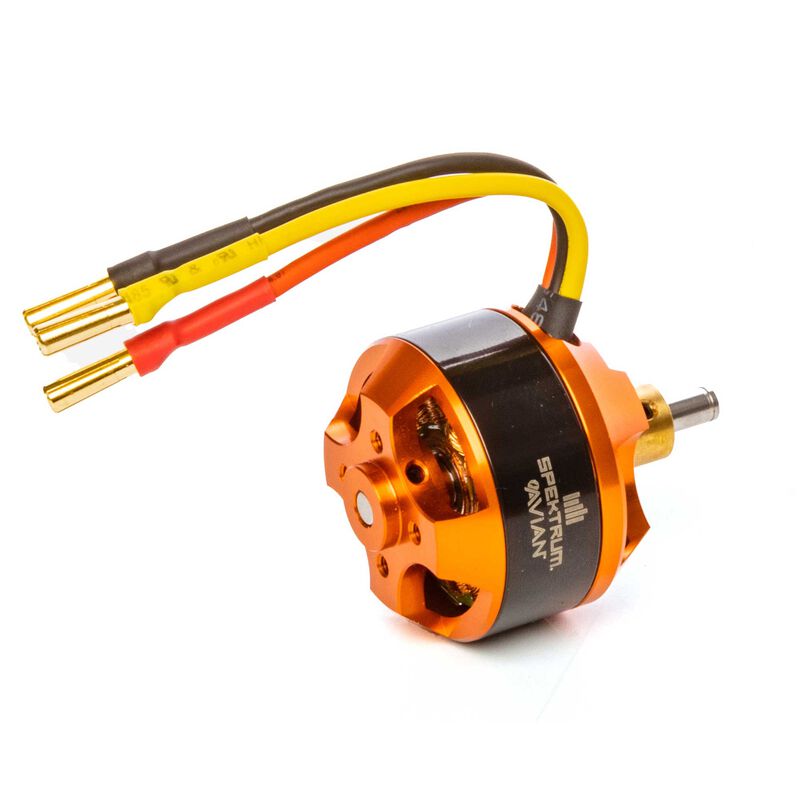

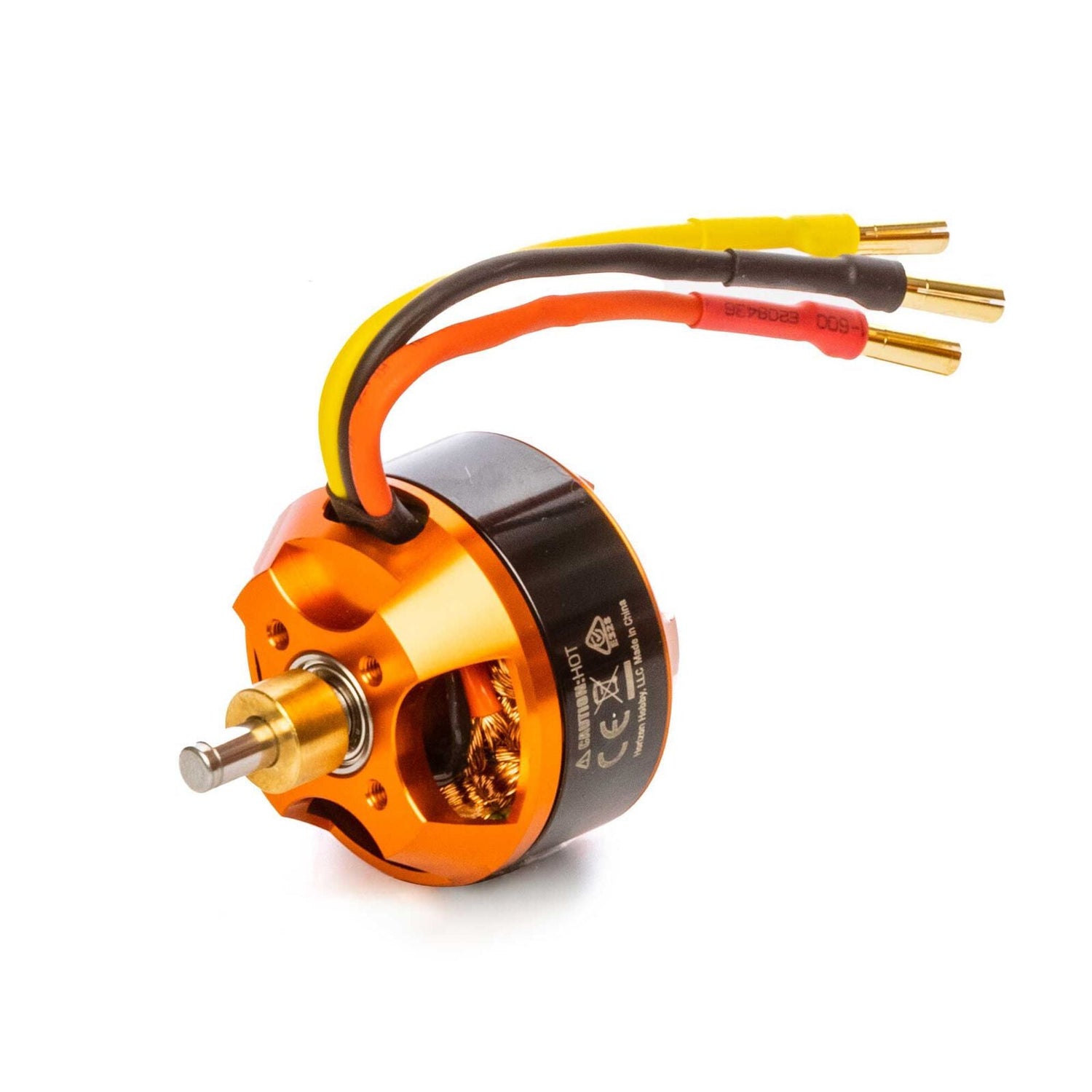

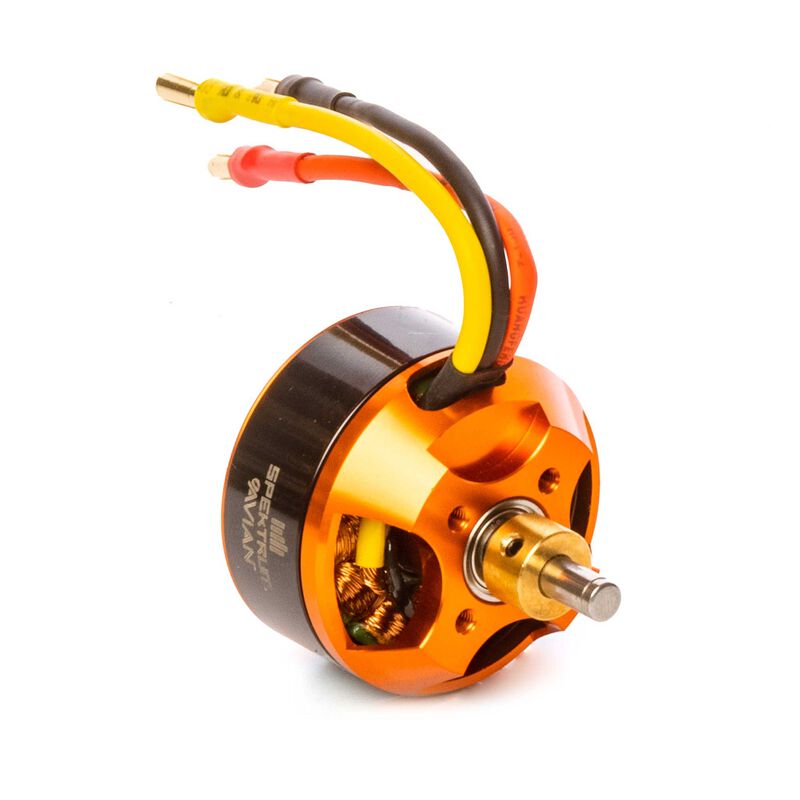

Avian 4240-1000Kv Outrunner Brushless Motor - SPMXAM4675
Avian 4240-1000Kv Outrunner Brushless Motor - SPMXAM4675 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Details
Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models
The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!
Quick Links
Key Benefits
- Rapid Acceleration and Extreme Torque: Expertly engineered to deliver fast, smooth and precise acceleration and power.
- Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
- Excellent Cooling: Engineered to help airflow move through the motor for efficient cooling during and after flight.
Features
- Lightweight design
- Powerful and durable Rare-Earth Neodymium magnets
- 14-pole stator for smooth and precise propulsion

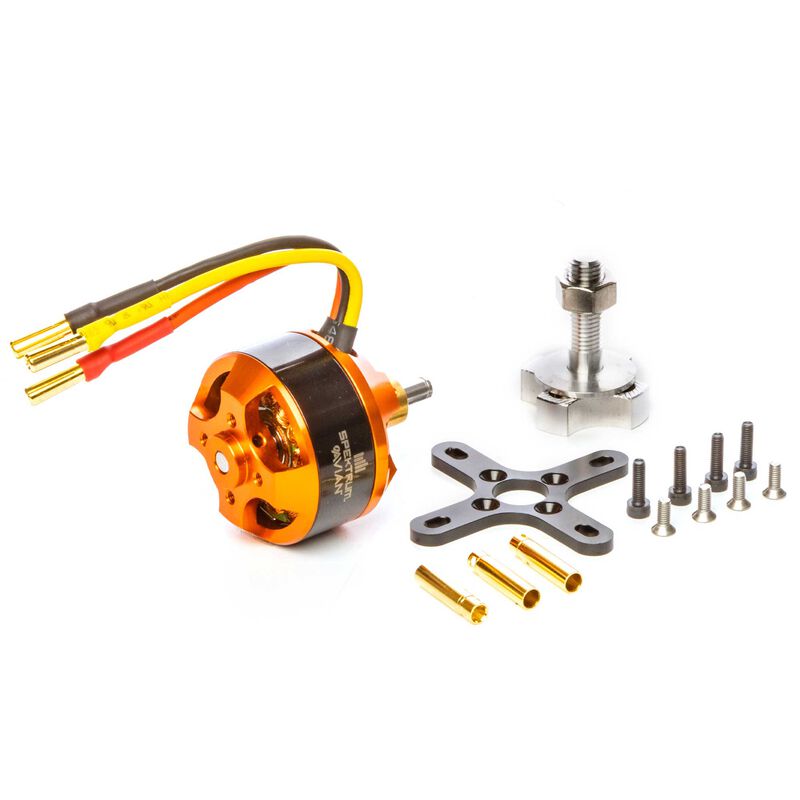

- Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
- Perfect match for the Spektrum Smart Avian 45 amp ESC
- Perfect electric conversion upgrade for .25 size glow combustion power systems
Important Specs
- Recommended Voltage Range – 11.1-14.8V / 3-4S LiPo
- Recommended Propeller Range – 11x8.5 to 12x6 Electric Prop
- Recommended Model Flying weight – 3D 1360g (3 lbs) - Sport 2040g (4.5 lbs)
- Max Wattage – 375w
- Max Current – Max Burst Amps (50A) Max Continuous Amps (45A)
Product Specifications
| Adjustable Timing | No |
| Motor Design | Outrunner |
| Input Voltage | 11.1-14.5V (3-4S LiPo) |
| Kv Rating | 1000-1249Kv |
| Motor Output Lead | 4 |
| RPM/Volt (Kv) | 1000 |
| Sensor Type | Sensordless |

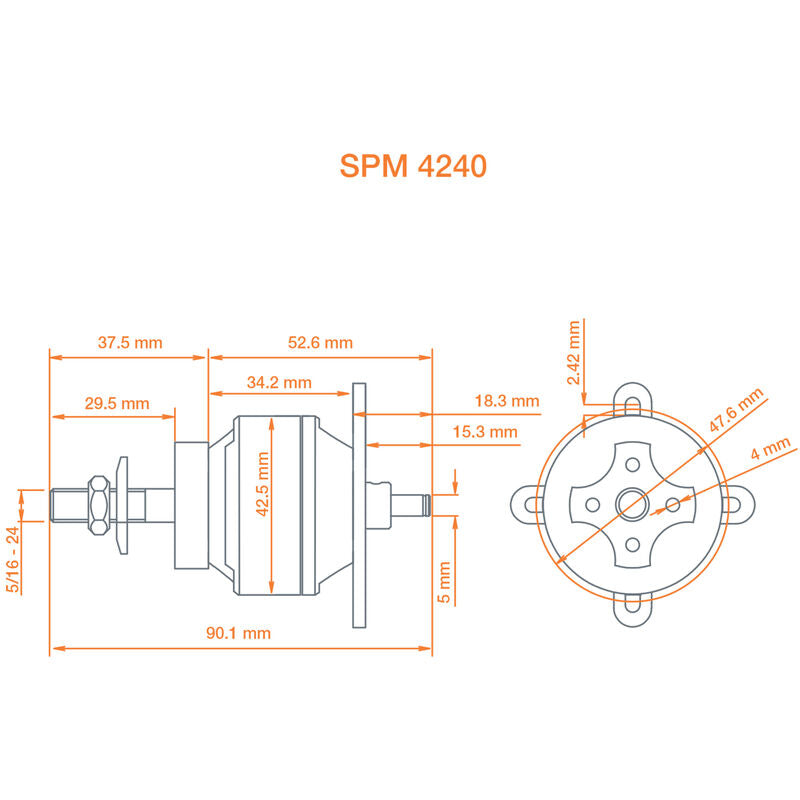

| Shaft Length | 0.67" (17 mm) |
| Outer Diameter | 1.7" (43 mm) |
| Application | Airplane |
| Number of Poles | 14 |
| Product Weight | 4.4oz (125g) |
| Shaft Diameter | 0.2" (5 mm) |
| Connector Type | 4mm Bullet |
| Motor Class | Parkflyers |
| Product Length | 1.6" (41 mm) |
| Constant Wattage | 250-499W |
| Maximum Burst Current | 50A |
| Maximum Continuous Current | 45A |
| Motor Type | Brushless |
| Integrated ESC | No |
Avian 4240-1000Kv Outrunner Brushless Motor - SPMXAM4675
