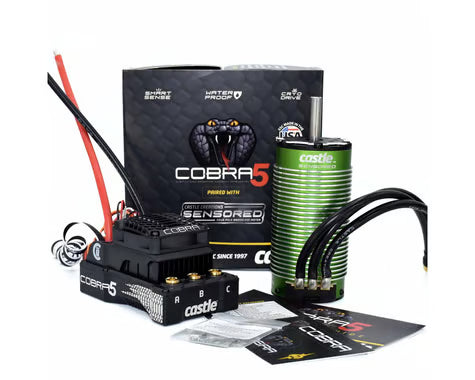

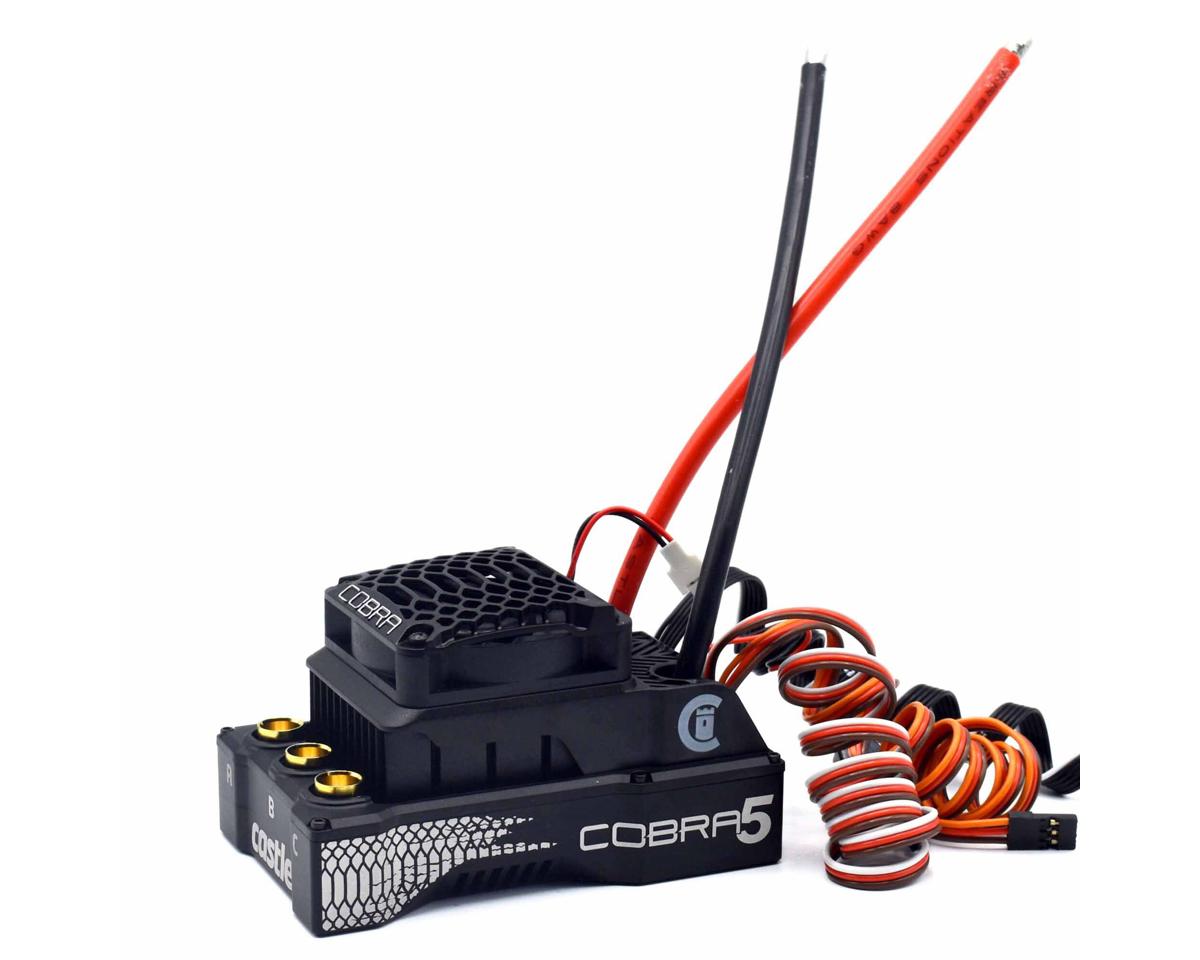

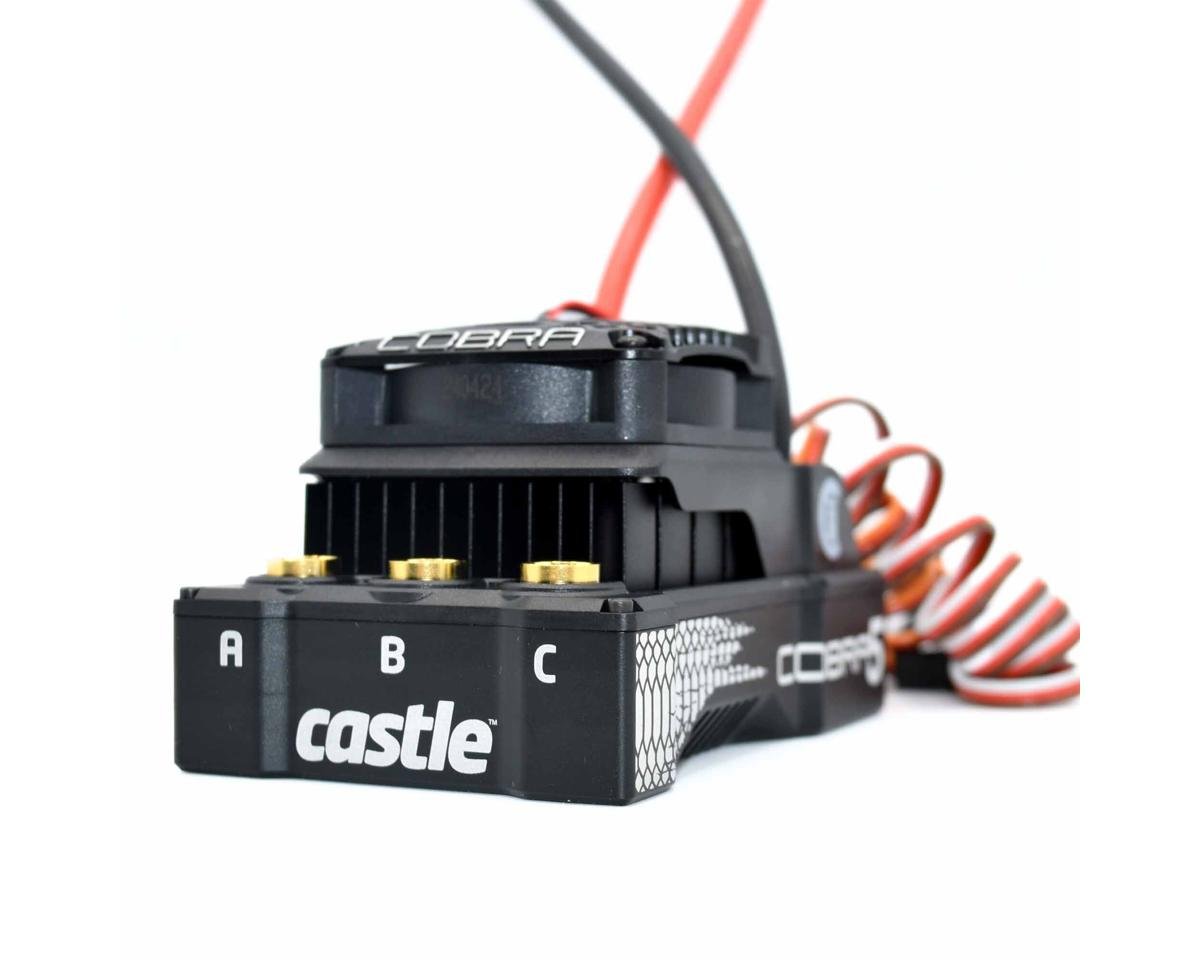

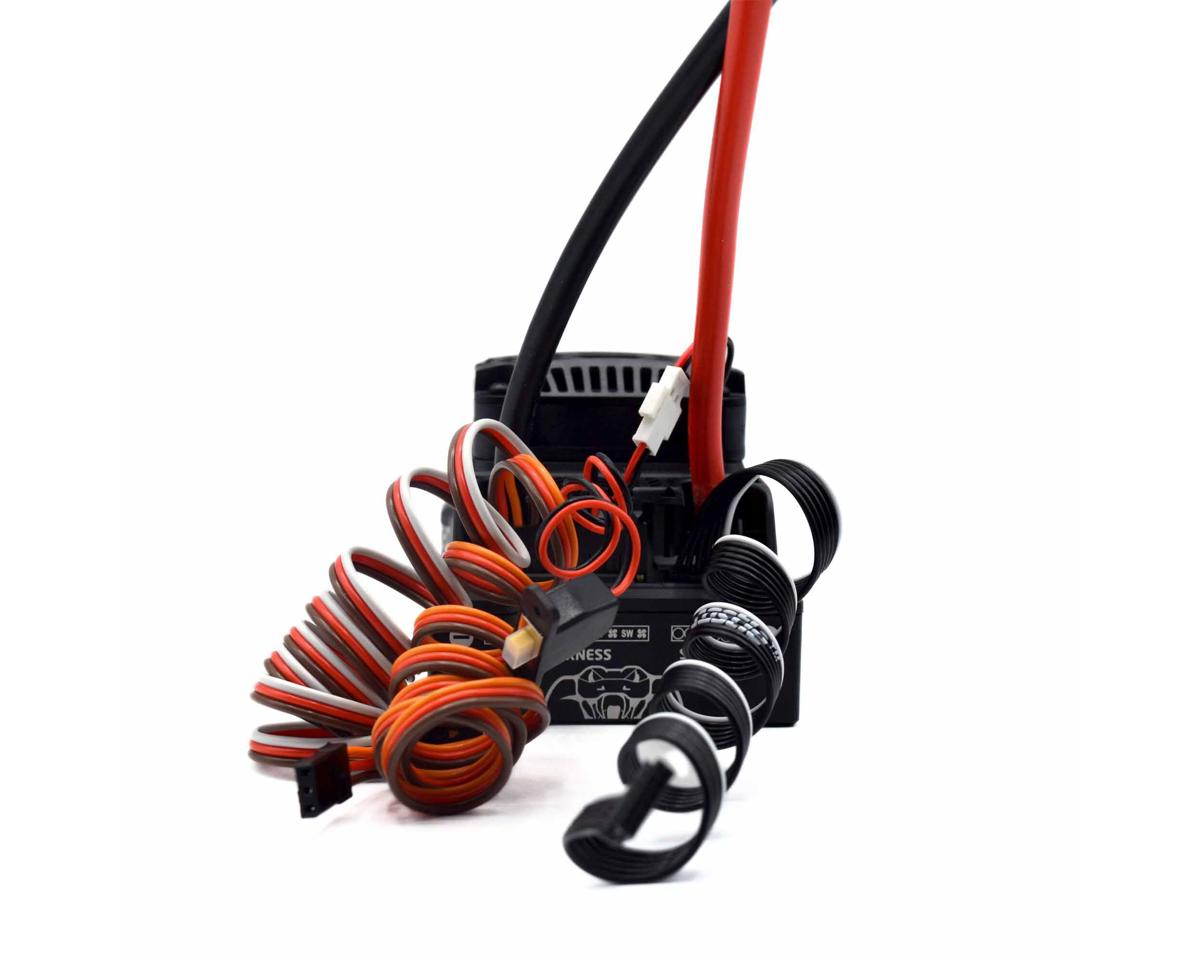

Castle Creations - Cobra 5 8S 1/5 Sensored Brushless ESC/Motor Combo (1100Kv) w/2028 Motor

The Castle Creations Cobra 5 8S ESC and 2028-1100Kv Sensored Motor combo is designed for serious 1/7th and 1/5th scale RC enthusiasts who demand precision, durability, and extreme power. Engineered for high-performance applications, this system delivers smooth throttle control, advanced tuning options, and robust protection against high-load conditions. With an upgraded current-sensing and thermal management system, the Cobra 5 provides unmatched reliability even in the most aggressive setups. Whether you’re bashing, crawling, or racing, this ESC and motor combo ensures optimal performance with seamless integration.

Features

• 32-bit processing for precise motor control
• Enhanced data logging with increased sample frequency
• ESC electrical motor timing and acceleration data tracking
• Looping feature prevents data log interruptions
• Adjustable braking and reverse curves for drivetrain protection
• Highly adjustable BEC (5.0V - 8.5V in 0.1V increments)
• CRYO-DRIVE™ technology for improved thermal performance
• CNC aluminum case with waterproof epoxy sealing
• Premium forged heatsink with elliptical fins for superior cooling
• Oversized 50mm thermally controlled cooling fan


Specifications

ESC:

• Suggested Application: 1:5 Off-Road
• Motor Type: Brushless – Sensored
• Input Voltage: 3S–8S LiPo
• Continuous Current: —
• Burst Current: —
• Dimensions (L × W × H): 3.98 × 2.49 × 2.34 in (101.2 × 63.3 × 59.5 mm)
• Weight: 13.19 oz (374 g)
• Motor Limit: —
• BEC Voltage: 5.5–8.5V


Motor:

• Suggested Application: 1:5 Off-Road
• Turn/kV: 1100 kV
• Size: 2028
• Type: Brushless – Sensored
• Voltage: 8S LiPo
• Adjustable Timing: No
• Watts: —
• Connector: 8 mm
