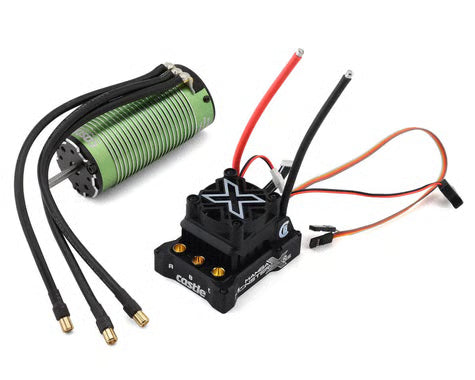

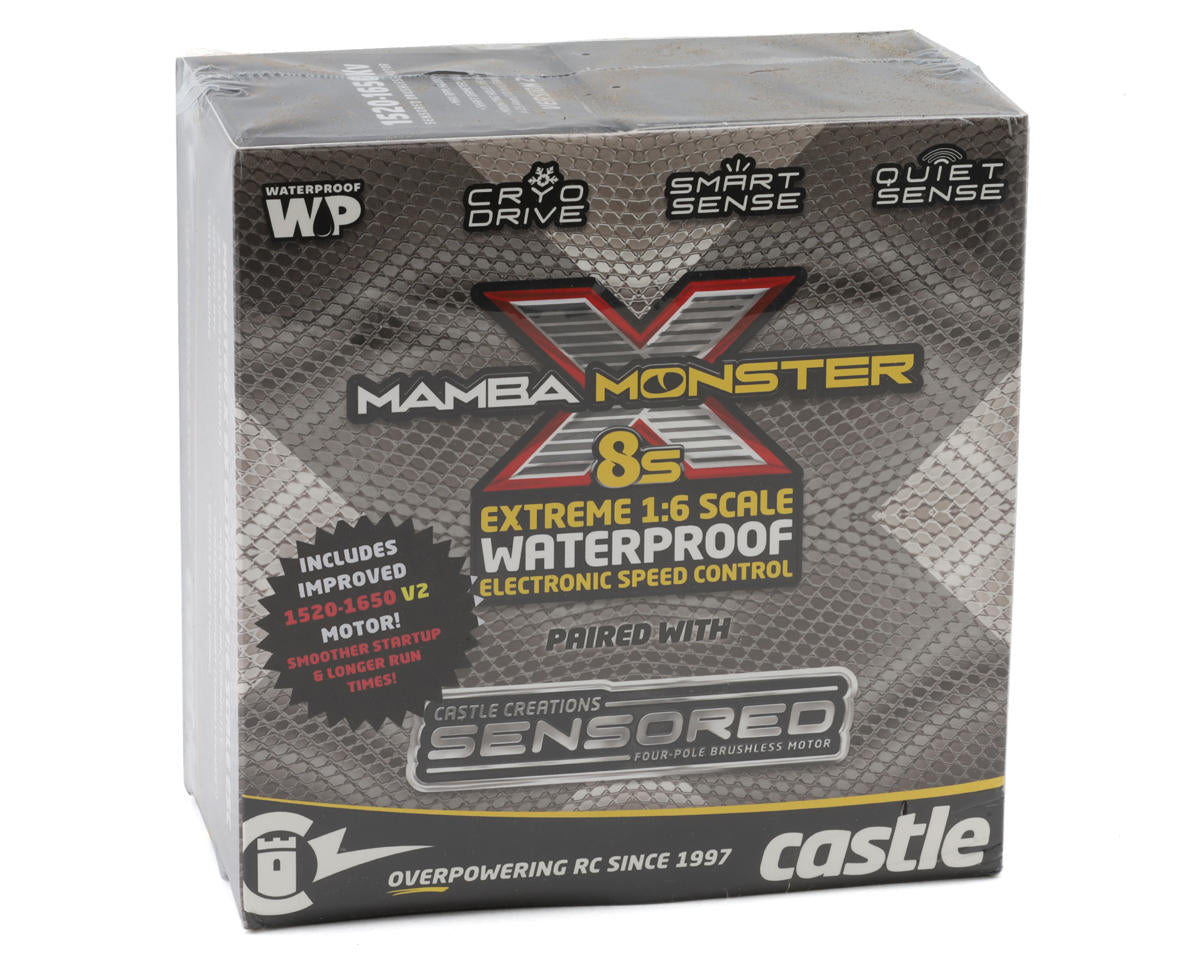

Castle Creations - Mamba Monster X 8S Brushless Combo w/1520 Sensored Motor (1650Kv)

The Mamba Monster X 8S Brushless Combo from Castle Creations is a powerhouse upgrade for one-sixth, one-seventh, and one-eighth scale vehicles. Combining the advanced Mamba Monster X 8S ESC with the redesigned 1520-1650Kv V2 motor, this combo delivers incredible power, efficiency, and reliability for vehicles weighing up to eighteen pounds. With cutting-edge features like CRYO-DRIVE™ technology and SmartSense™ running modes, it ensures cooler temperatures, longer run times, and smoother startups. Ideal for demanding RC applications, this combo is engineered to maximize performance and durability on any terrain.

Features

• Input voltage range: Two to eight cell LiPo
• SmartSense™, sensored, and sensorless running modes
• CRYO-DRIVE™ technology for improved thermal performance
• Eight-amp adjustable BEC (5.25V-8.0V)
• Rugged CNC aluminum ESC case
• 40mm thermally controlled cooling fan
• Waterproof ESC design for all weather conditions
• Integrated data logging for performance tracking
• Auxiliary wire for on-the-fly adjustments
• Easy programming via USB or Bluetooth


Specifications

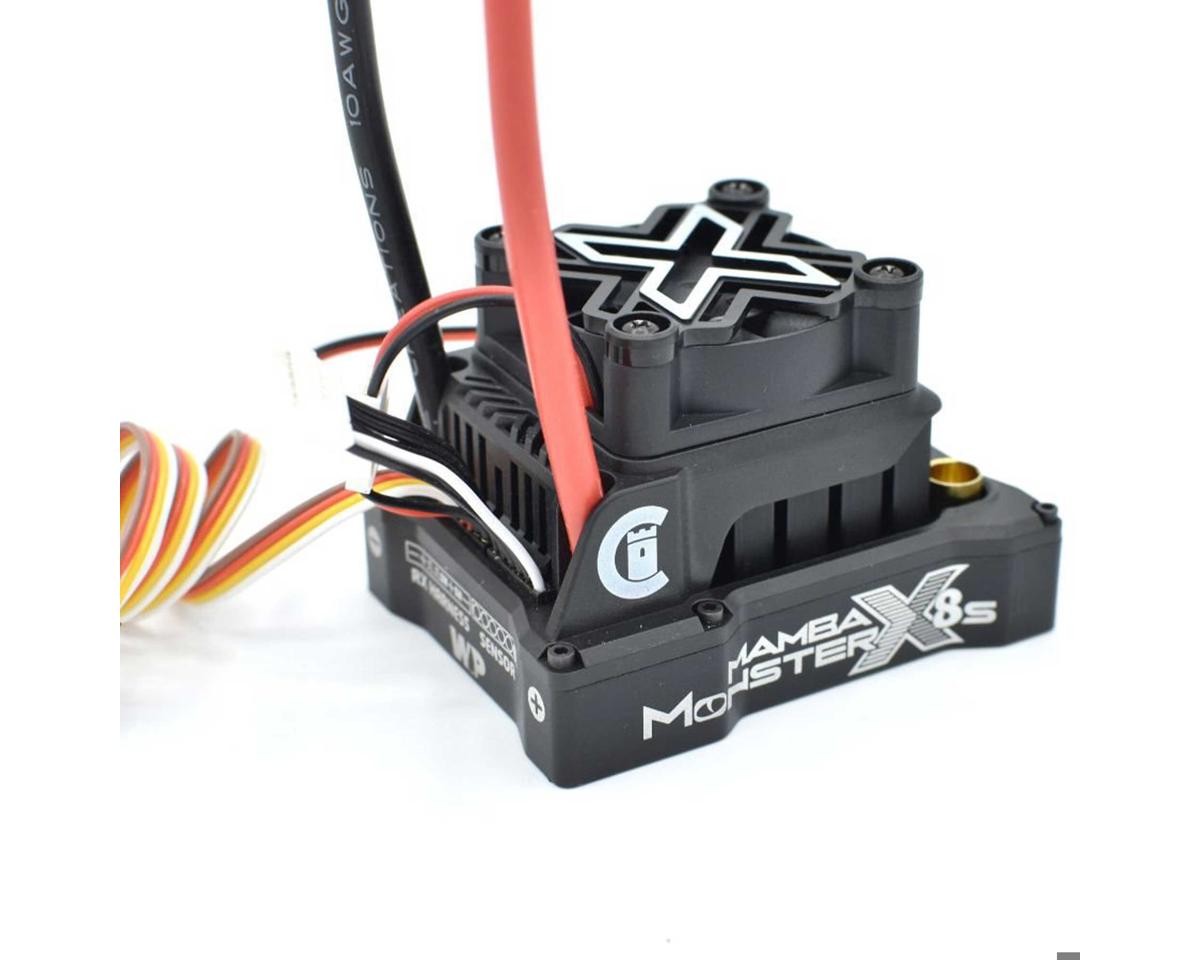

ESC:

• Suggested Application: 1/6–1/8 scale
• Motor Type: Brushless – Sensored
• Input Voltage: 2–8S LiPo (7.4–33.6V)*
• Continuous Current: —
• Burst Current: —
• Dimensions (L × W × H): 2.74 × 2.13 × 1.85 in (69.5 × 54.1 × 47 mm)
• Weight: 5.75 oz (163 g)
• BEC Voltage: 5–8V (5.5V Default)
• BEC Continuous Current: —
• BEC Peak Current: 8A

Motor:

• Suggested Application: 1/6–1/8 scale
• Size: 1650 kV
• Type: Brushless – Sensored
• Voltage: 3–8S LiPo
• Adjustable Timing: —
• Watts: —
• Connector: 6.5mm Male Bullets
• Dimensions (L × W): 3.50 × 1.64 in (88.8 × 41.6 mm)
• Shaft Length: —
• Shaft Diameter: 0.2 in (5 mm)
