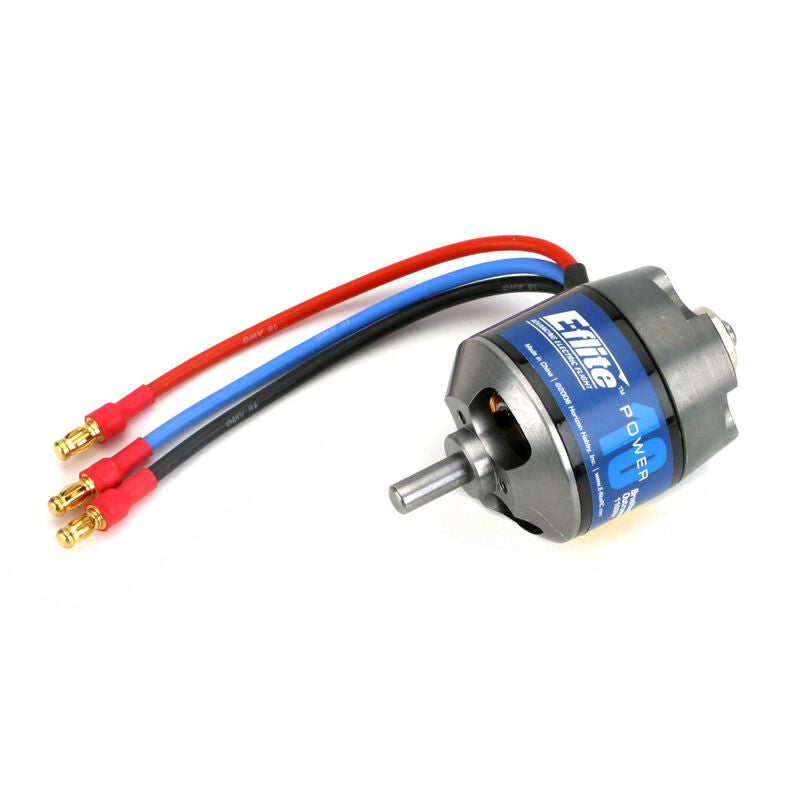

Power 10 Brushless Outrunner Motor, 1100Kv
The Power 10 is designed to deliver clean and quiet power for 10-size sport and scale airplanes weighing 32 to 48 ounces (910 to 1360 grams), 3D airplanes weighing 28 to 36 ounces (790 to 1020 grams), or models requiring up to 450 watts of power. It's an especially good match for the E-flite Brio 10 for high-speed F3A precision or artistic aerobatics.
- Equivalent to a 10-size glow engine for 32–48 ounce (910–1360 g) airplanes
- Ideal for 3D airplanes weighing 28–36 ounces (790–1020 g)
- Ideal for models requiring up to 450 watts of power
- High-torque, direct-drive alternative to inrunner brushless motors
- Includes mount, prop adapters, and mounting hardware
- External rotor design with 5mm shaft, easily reversible for alternative motor installations
- Slotted 14-pole outrunner design
- High-quality construction with ball bearings and hardened steel shaft
- Quiet, lightweight operation
- Adjustable Timing: No
- Bushing or Bearing: Bearing
- Connector Type: 3.5mm Bullet
- Idle Current (Io): 2.10A @ 10V
- Motor Design: Outrunner
- Motor Type: Brushless
- Recommended Prop Range: 10x5 - 12x6
- Resistance: .043 ohms
- RPM/Volt (Kv): 1100
- Shaft Diameter: 0.2" (5 mm)
- Voltage: 2S - 3S LiPo
- Wire Gauge: 16 AWG
