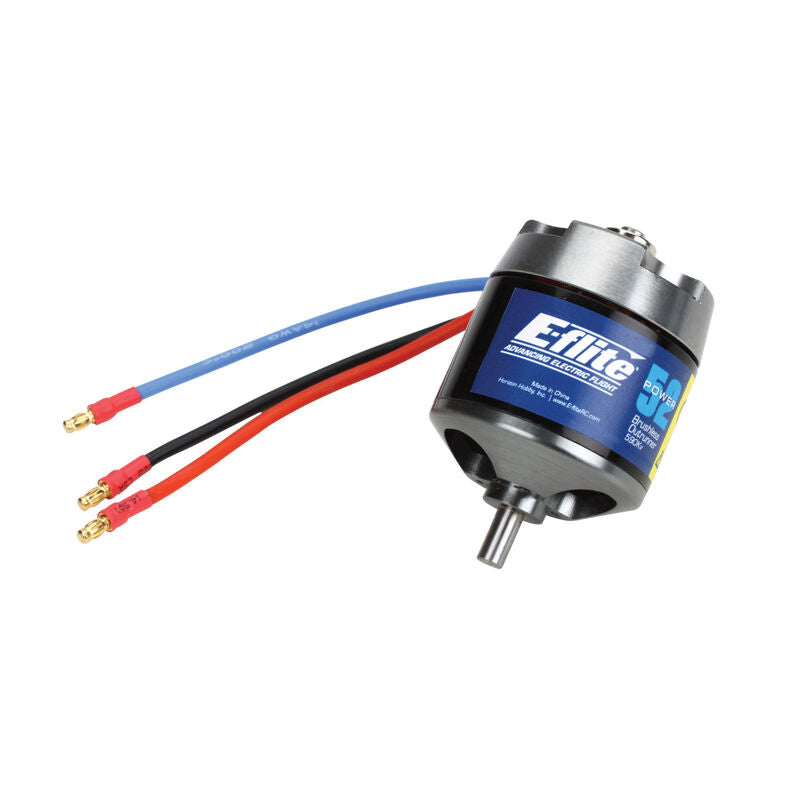

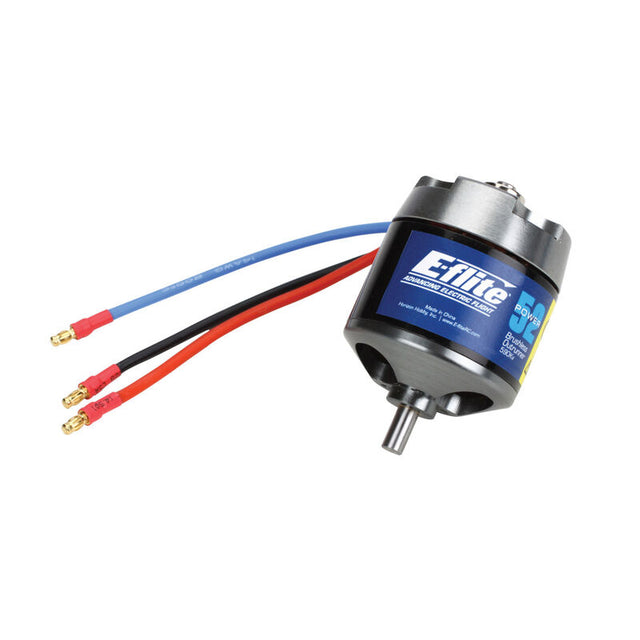

The Power 52 Brushless Outrunner Motor, 590Kv, provides clean, efficient power for 40- to 50-size sport and scale airplanes, 3D airplanes, and models requiring up to 1650 watts. Ideal for high-torque, direct-drive applications.
Features:- Equivalent to a 46- to 55-size glow engine for 5.00- to 7.50 lb (2.20–3.40 kg) airplanes.
- Ideal for 40- to 50-size 3D airplanes up to 6.00 lbs (2.70 kg).
- High-torque, direct-drive alternative to inrunner brushless motors.
- Includes motor mount, prop adapters, and mounting hardware.
- Quiet and lightweight operation.
- External rotor design with a 6mm shaft, easily reversible for alternative motor installations.
- High-quality construction with ball bearings and hardened steel shaft.
- Slotted 14-pole outrunner design.
- Adjustable Timing: No
- Application: Airplane
- Connector Type: 4mm Bullet
- Idle Current (Io): 2.3A @ 18.5V
- Input Voltage: 14.8-22.2V
- Motor Design: Outrunner
- Motor Type: Brushless
- Outer Diameter: 2.00 in (50mm)
-
Recommended Prop Range:
- 4S: 14 x 7 - 15 x 8
- 5S: 13 x 8 - 15 x 7
- 6S: 11 x 10 - 12 x 8
- Recommended Speed Control: 80-Amp
- Resistance: 0.016Ω
- RPM/Volt (Kv): 590
- Shaft Diameter: 6mm
- Shaft Length: 3.1 in (80mm)
