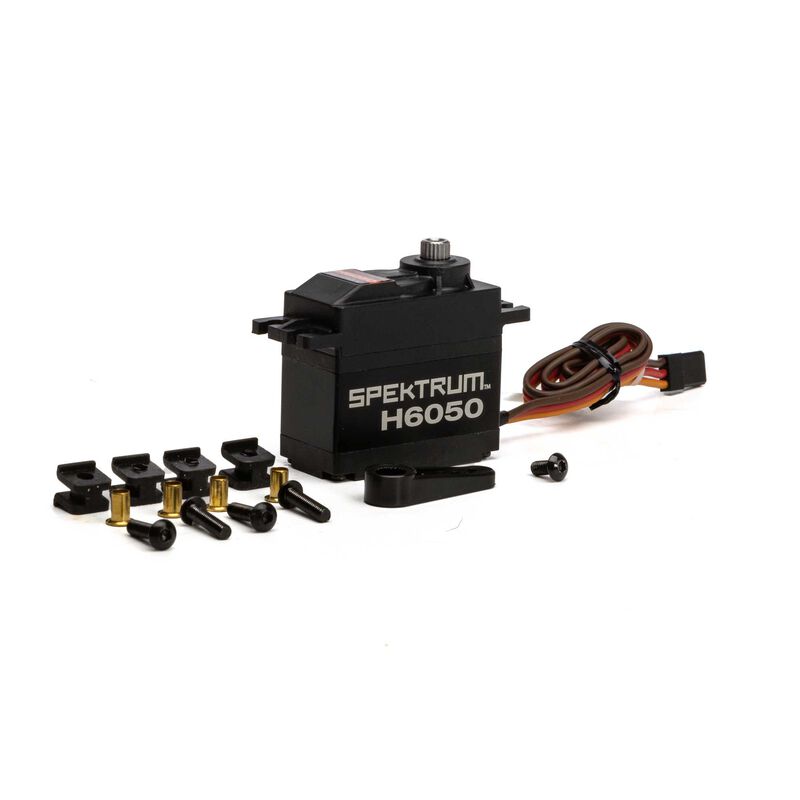

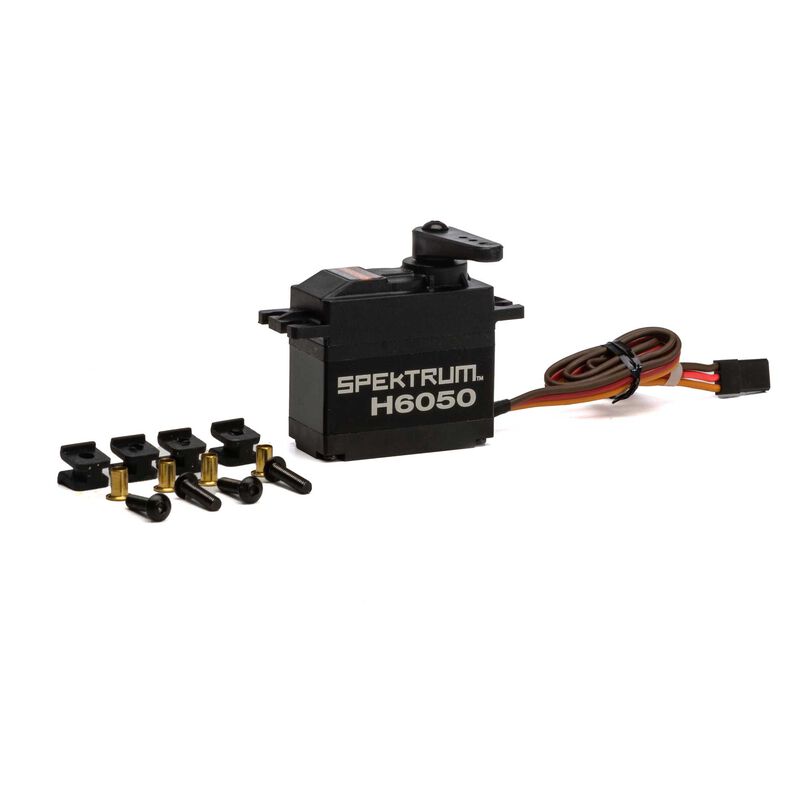

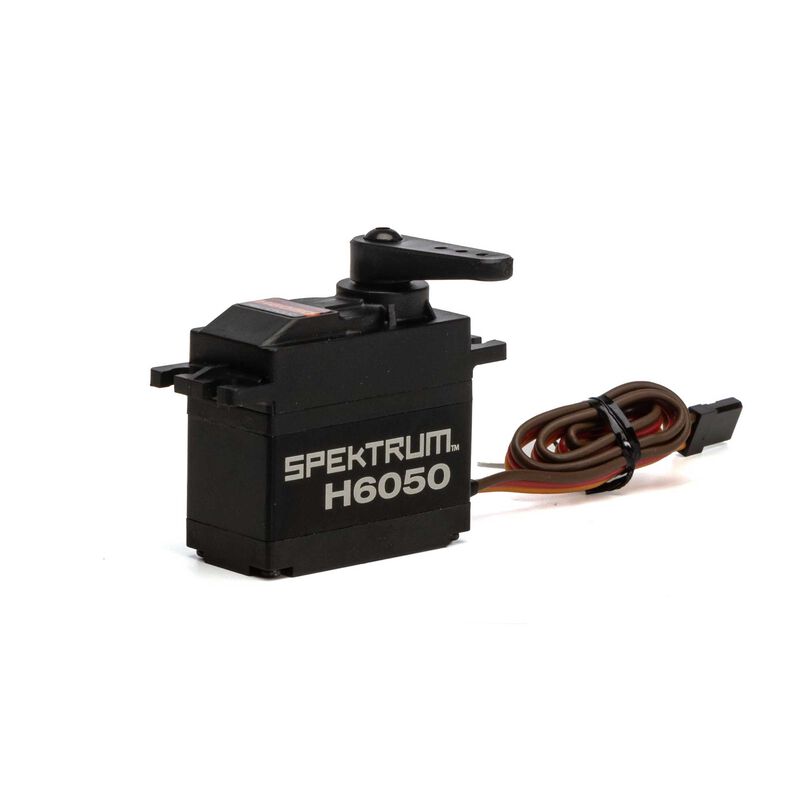

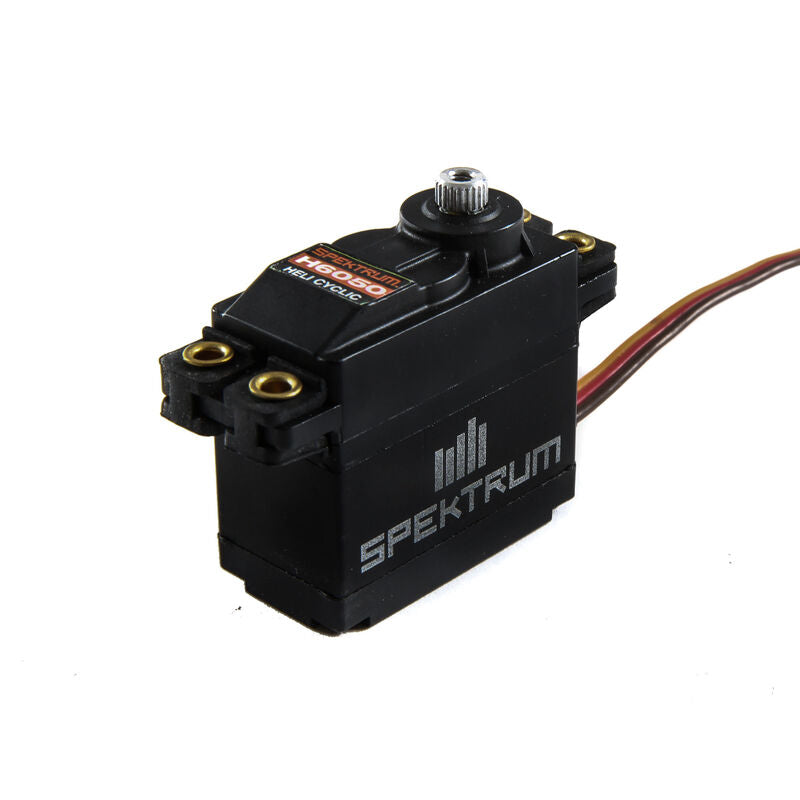

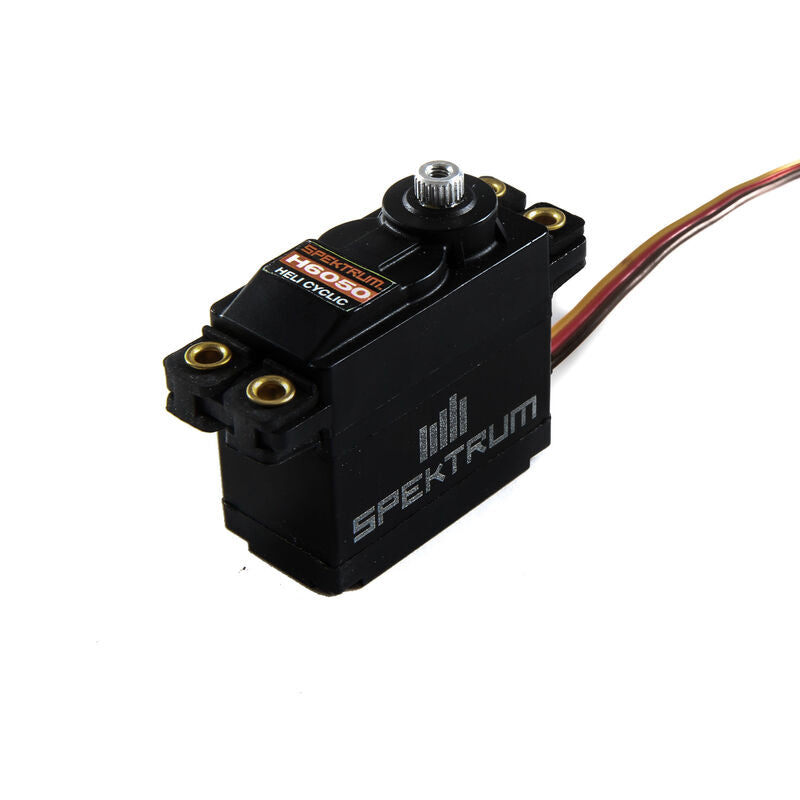

H6050 Standard Digital High Torque Mid-Speed Metal Gear Heli Cyclic Servo - SPMSH6050
H6050 Standard Digital High Torque Mid-Speed Metal Gear Heli Cyclic Servo - SPMSH6050 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Details
Key Features
- Standard size servo for 500 size Helicopter models and smaller
- 160oz Torque and .103 sec speed at 6.0v
- 4.8v-6.0v input voltage
- Long 10 inch (255mm) connector wire to reduce the need for extensions
- 23 Tooth spline
- Bearing supported output spline
Overview
The H6050 is a budget friendly digital cyclic servo that is purpose built for helicopter models up to 500 size. Featuring a powerful coreless motor that delivers a potent 160oz of torque and a quick .103 sec (at 6.0V) and durable fully metal gear train. Built into a standard size case, this servo is a perfect fit for the Blade Fusion 480 and many other high performance heli models.
Product Specifications
| Material | Plastic |
| Deadband | Less than 1?s |
| Programmable | No |
| Servo Size Category | Standard |
| Product Application | Helis Cyclic |
| Product Height | 1.51 in (38.3 mm) |
| Servo Type | Digital |
| Motor Type | Brushed |
| Servo Operating Voltage | 4.8 - 6.0V |
| Product Width | 0.79 in (20.0 mm) |
| Connector Wire Length | 10 in (255mm) |
| Bearing | Dual |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Wire Gauge | 22 AWG |
| Maximum Servo Torque | 160 oz-in (11.5 kg-cm) @ 6.0V |
| Connector Type | Universal |
| Product Length | 1.57 in (40.0 mm) |
| Rotation Range | 120 deg |
| Application | Helis Cyclic |
| Product Weight | 2.2 oz (62g) |
