HORIZON HOBBY | SKU:
HRC36646

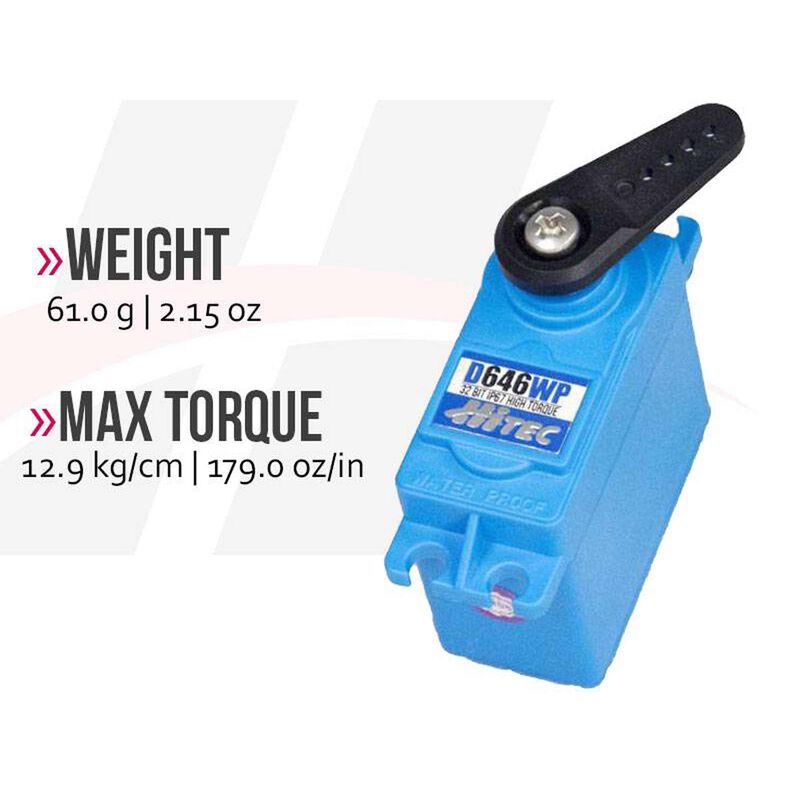

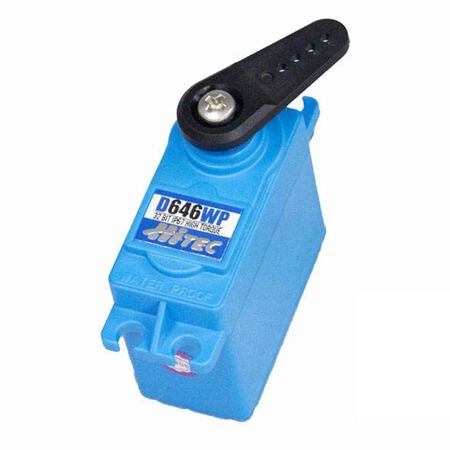

D646WP Standard Digital High Torque Waterproof Metal Gear Servo - HRC36646
Regular price
$54.99
Unit price
/
Unavailable
D646WP Standard Digital High Torque Waterproof Metal Gear Servo - HRC36646 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
D646WP Standard Digital High Torque Waterproof Metal Gear Servo - HRC36646
Hitec's waterproof servos have what it takes to keep your radio control vehicle, airplane or robot watertight! With high torque, dual ball bearings and metal gears, Hitec's digital waterproof servos have the industry’s first IP67* rating ranking them among the most durable and reliable servos for wet conditions. Whether you are manning your power boat, bashing in the mud, directing your underwater robot, or water landing your 25% plane, the D646WP will dependably keep your mind at ease.
- Speed: @4.8V .24sec/60' / @6.0V .16sec/60'
- Torque: @4.8V 105oz/in / @6.0V 162oz/in
- Industry's First IP67-Rated Waterproof Case
- Strong Three-Pole Ferrite Motor
- Metal Gear Train with MP First Gear
- Dual Ball Bearing-Supported Output Shaft
- 7.4v 2-Cell LiPo Capability
- Standard Programmable Digital Circuitry
In The Box
- (1) D646WP Standard Digital High Torque Waterproof Metal Gear Servo
Product Specifications
| Maximum Servo Torque | 105oz/in @ 4.8V, 162oz/in @ 6.0V |
| Product Weight | 2.15oz (61.0g) |
| Spline Count | 24 - Tooth |
| Water-Resistant | Yes |
| Application | Sport Aircraft, Cars, Boats |
| Programmable | Yes |
| Servo Size Category | Standard |
| Current Draw Idle | 30 mA |
| Product Width | 0.83" (21 mm) |
| Current Draw Stall | 2,200 mA |
| Motor Type | Brushed |
| Servo Operating Voltage | 6.0 - 7.4V (HV) |
| Connector Type | Universal |
| Maximum Servo Speed | 0.24 sec/60 deg @ 4.8V, 0.16 sec/60 deg @ 6.0V |
| Product Length | 1.65" (42 mm) |
| Deadband | 4µs |
| Input Voltage | 6.0V ~ 7.4V |
| Product Height | 1.57" (40 mm) |
| Servo Type | Digital |
| Bearing | Dual Ball Bearing |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Wire Gauge | 22 AWG |
