HORIZON HOBBY | SKU:
HRC31311S
HS-311 Standard Analog Sport Servo - HRC31311S
Regular price
$13.49
Unit price
/
Unavailable
HS-311 Standard Analog Sport Servo - HRC31311S is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

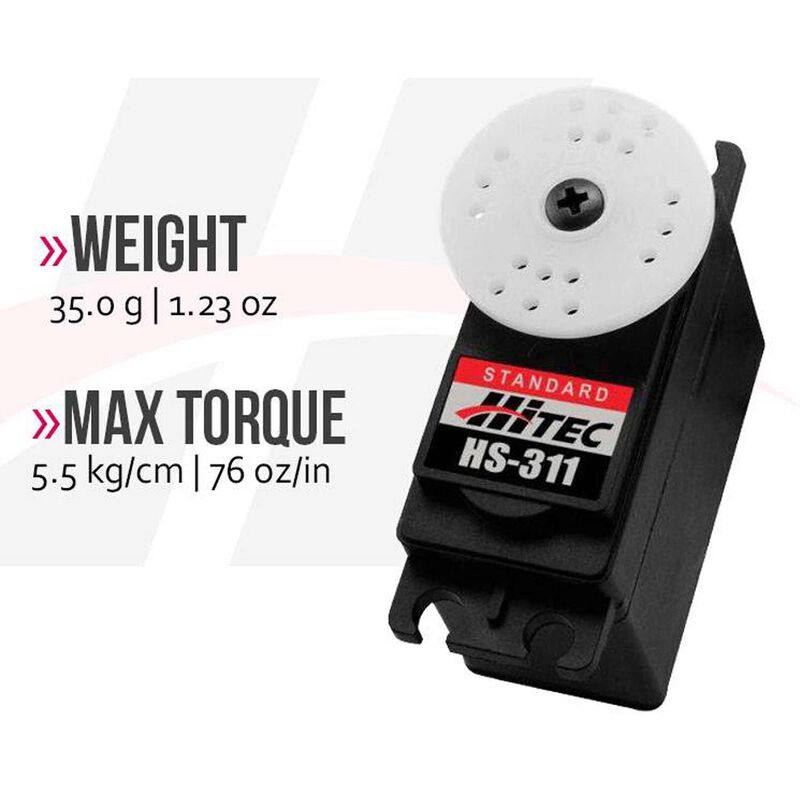

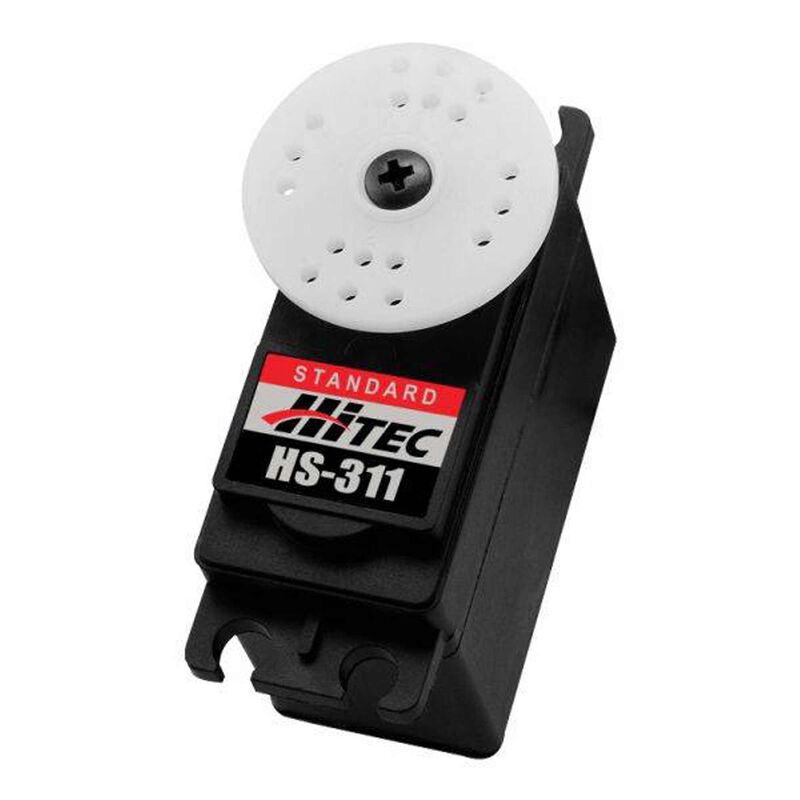

HS-311 Standard Analog Sport Servo - HRC31311S
The HS-311 sport servo provides the novice modeler all the performance and reliability you would expect to find in a more expensive servo. Combined with precise resin gears and SMT circuitry, the HS-311 represents a remarkable value in today's R/C market.
- Speed: @4.8V .19sec/60' / @6.0V .15sec/60'
- Torque: @4.8V 42oz/in / @6.0V 49oz/in
- Our Low Cost Standard Size Servo
- Reliable Three-Pole Ferrite Motor
- Durable Resin Gears
- Popular Selling Servo
In The Box
- (1) HS-311 Standard Analog Sport Servo
Product Specifications
| Current Draw Idle | 7.7 mA |

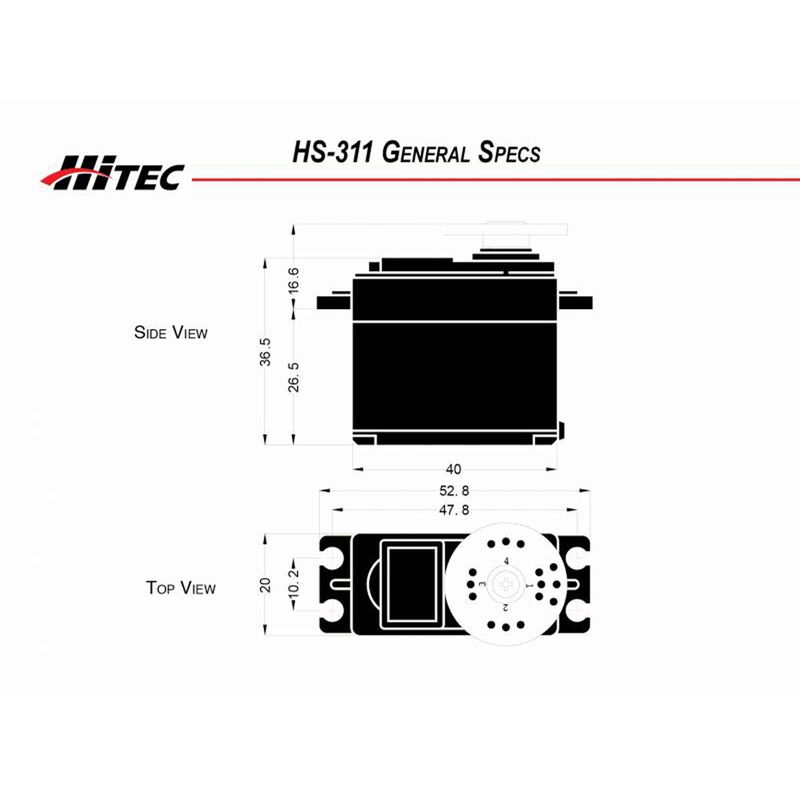

| Product Width | 0.78" (20 mm) |
| Connector Type | Universal |
| Maximum Servo Speed | 0.19 sec/60 deg @ 4.8V, 0.15 sec/60 deg @ 6.0V |
| Product Length | 1.57" (40 mm) |
| Bearing | None |
| Bushing Or Bearing | Bushing |
| Gear Type | Nylon |
| Wire Gauge | 25 AWG |
| Deadband | 5µs |
| Input Voltage | 4.8V ~ 6.0V |
| Product Height | 1.43" (36 mm) |
| Servo Type | Analog |
| Programmable | No |
| Servo Size Category | Standard |
| Current Draw Stall | 800 mA |
| Motor Type | Brushed |
| Servo Operating Voltage | 4.8 - 6.0V |
| Application | Airplane, Car |
| Product Weight | 1.51oz (43.0g) |
| Water-Resistant | No |
| Maximum Servo Torque | 42 oz/in @ 4.8V, 49 oz/in @ 6.0V |
