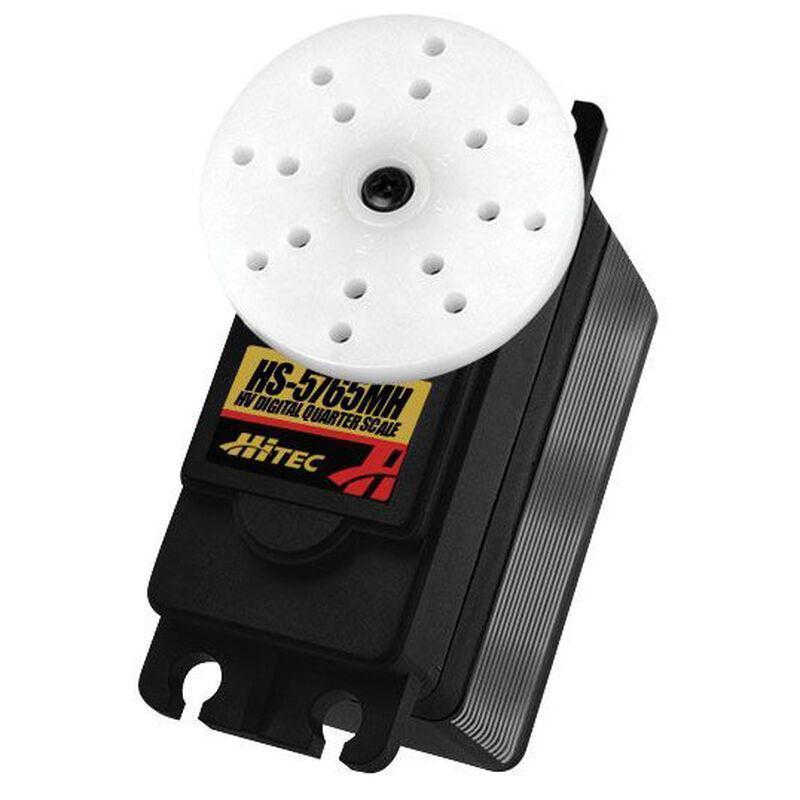

HS-5765MH Giant Scale Digital HV Metal Gear Servo
HS-5765MH Giant Scale Digital HV Metal Gear Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Key Features
- Large 10mm Output shaft
- Triple Ball Bearings
- Heavy Duty Metal Gear Train
- Water and Dust Resistant Case
Overview
When it comes to your big RC projects, size does matter - that’s why Hitec engineered the HS-5765MH. This high voltage cousin of the HS-5755MG is 2-cell LiPo (7.4V) capable and features heavy duty metal gears with a 10mm output shaft for the strength you need for the most demanding large scale applications. With 347 oz-in torque, the giant HS-5765MH is tough enough to tackle your biggest RC projects from 1/5th on and off-road vehicles to large high-powered boats and giant scale aircraft!
Product Specifications
Specs
| Bearing | Triple |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Maximum Servo Speed | 0.100-0.149 sec |
| Maximum Servo Torque | 200-349 oz-in |
| Motor Type | 3-pole ferrite |
| Programmable | Yes |
| Servo Operating Voltage | 6.0 - 7.4V (HV) |
| Servo Size Category | Standard Large and Giant Scale |
| Servo Type | Digital |
| Speed | 0.16 sec/60 deg @ 6.0V; 0.13 sec/60 deg @ 7.4V |
| Torque | 278 oz-in (20 kg-cm) @ 6.0V; 347 oz-in (25 kg-cm) @ 7.4V |
