Specifications:

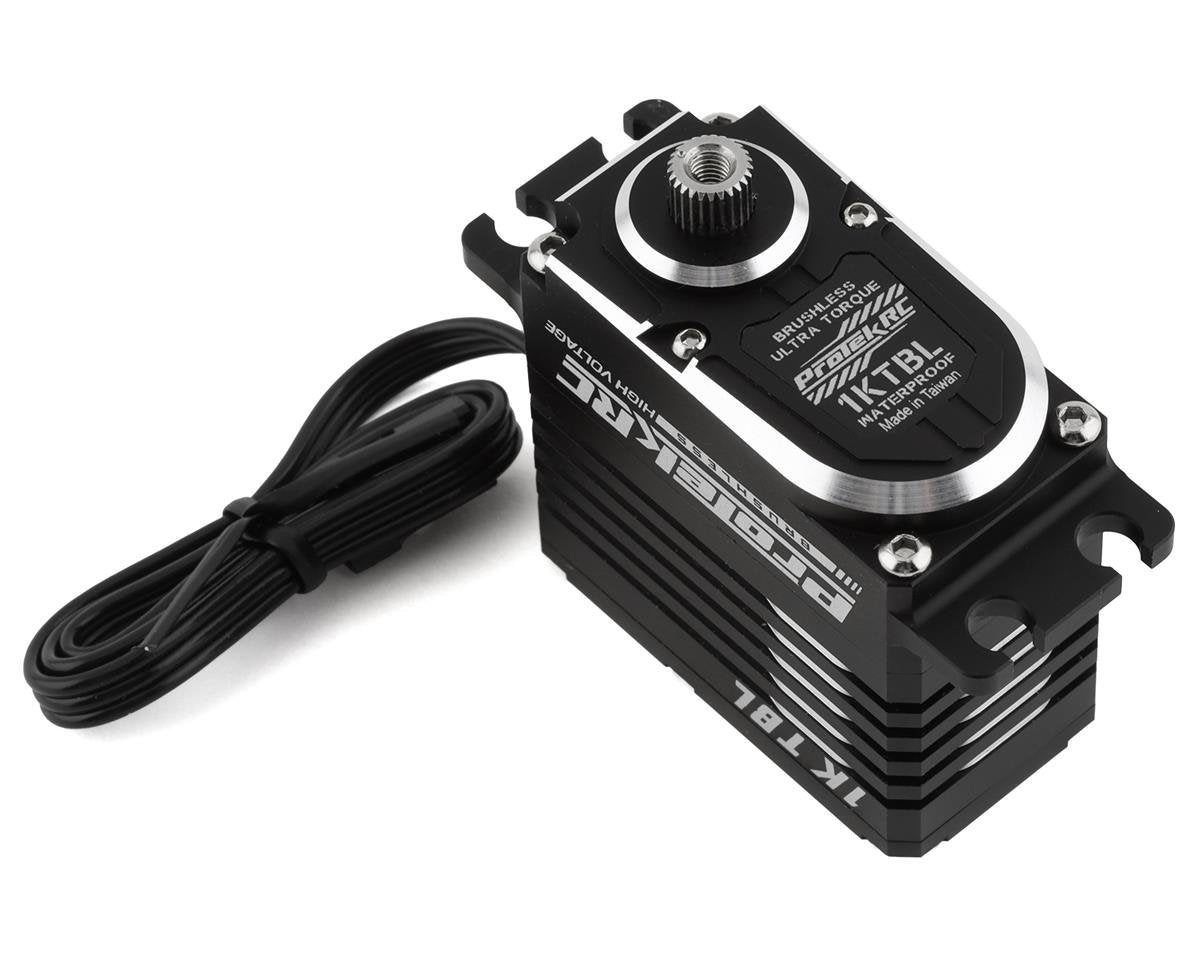

- Servo Model: 1KTBL
- Recommended Application: Crawlers, Bashers & Large Scale
- Operating Voltage: 4.8V – 8.4V
- Operating Temperature: 14° to 140° F (-10° to +60° C)
- Operating Speed @ 6.0V: 0.16/60° sec
- Operating Speed @ 8.4V: 0.11/60° sec
- Dynamic Torque @ 6.0V: 880 oz-in (63.6 kg-cm)
- Dynamic Torque @ 8.4V: 1080 oz-in (77.7 kg-cm)
- Stall Current @ 6.0V: 7.7A
- Stall Current @ 8.4V: 8.3A
- Motor Type: Brushless Digital
- Output Shaft: 25 Tooth
- Gears: Steel
- Weight: 81g
- Pulse/Frequency: 1520µs / 333Hz
- Dimensions: 41 × 21 × 39.5 mm
-
Length (Bottom to Mount): 30 mm
