R1 BL System: spec 19 (TEKTT1154)
R1 BL System: spec 19 (TEKTT1154) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

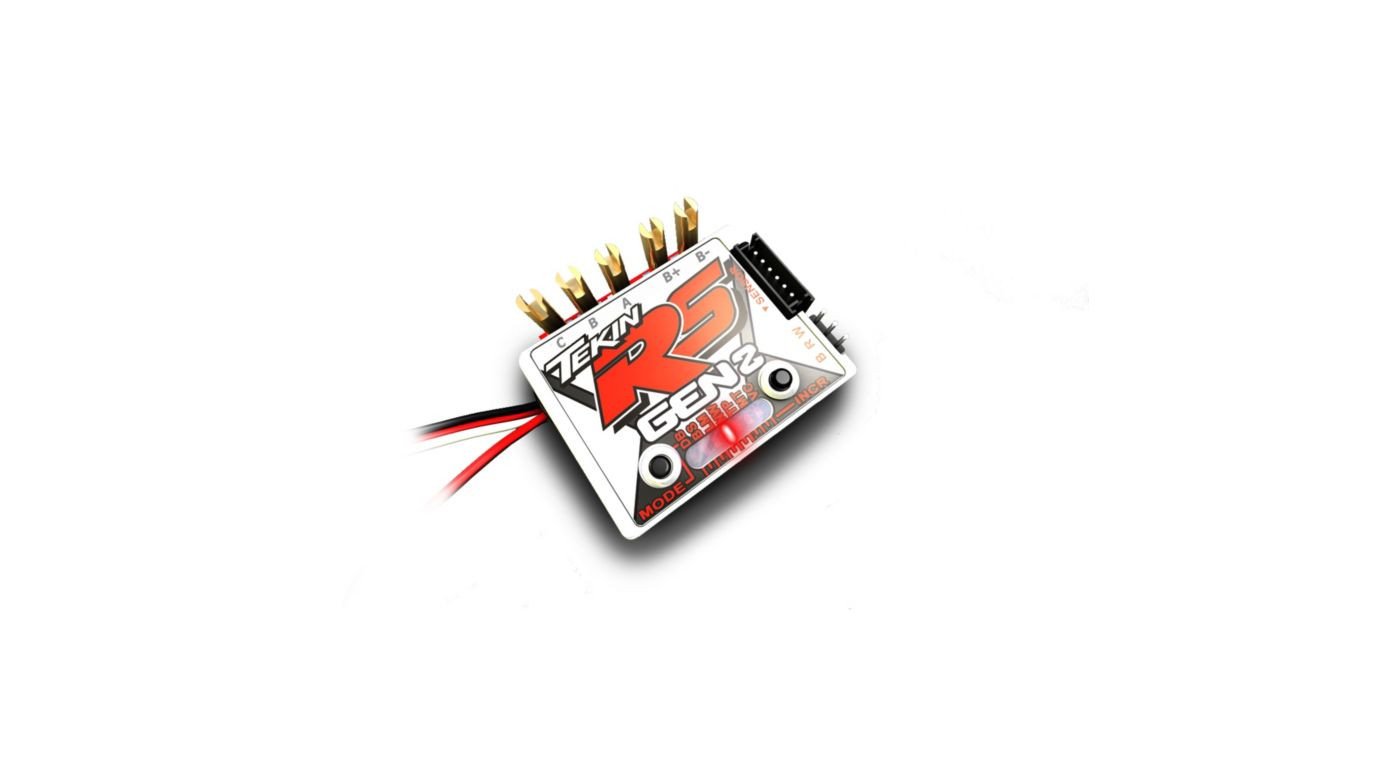

The RS GEN2 brushless speed control is the next generation in intelligent operating motor drive technology. Continuing the proven award-winning legacy of the RS familly, the GEN2 is fitted with todays state of the art components. The RS GEN2 delivers what racers require; reliability, precise control and unmatched power handling capability.
Packed with new features, the RS GEN2 delivers a programmable high-voltage BEC, an EZ Access Port for HotWire communication and Datalogging capabilities in a small sized package. Rated for 8.5 turn motors and higher, the GEN2 is the perfect ESC for both experienced and new racers. Couple the RS GEN2 with a Redline GEN2 brushless motor for the ultimate package in race equipment.
Key Features
- Ultra-smooth and Precise Throttle and Braking Control
- Compatible with Sensored/Sensorless Brushless and Brushed Motors
- Easily Access Programming, Anywhere, Anytime
- Datalogging Capability
- High Voltage Programmable BEC
- EZ Access HotWire Programming Port
- HotWire PC Interface for Advanced Programming and Updating
- D2: Dual Drive Mode Technology
- On-Board Temperature Indicator
- HDAC: High Density Copper PCB's
- Sensor Plug for Precise Commutation with all Motors
- Gold-plated Solder Posts for Easy Wire Replacement
- Self Test Diagnostics and Factory Reset
- Pit Tune Mode
- DGF2: Digital Glitch Filtering V2
- QuickTune„¢ Programming
- One-Touch Radio Calibration
Specs
- Controls: Forward/Brake/Reverse
- Input Voltage: 2-3S LiPo / 4-9S NiMH-NiCD
- BEC: 6.0v / 7.4v @ 5.5amps
- Motor Limit Brushless Mode 2S: 8.5 Turn 2-pole 36mm Can
- Motor Limit Brushless Mode 3S: 10.5 Turn 2-pole 36mm Can
- Motor Limit Brushed 2S: 12 Turn 36mm Can
- Motor Limit Brushed 3S: 20 Turn 36mm Can
- Max Chassis Weight: 4lbs / 1815g
- Throttle Profiles: 7 choices (on board)
- Brushed Modes: FWD Only / FWD-REV / FWD-REV Delay
- Brushless Modes: FWD Only / FWD-REV / FWD-REV Delay
- Dimensions: 1.0 x 1.3 x .51in / 26 x 34 x 12.9mm
- Weight: .85oz / 24g
