HORIZON HOBBY | SKU:
SEHREEFS135

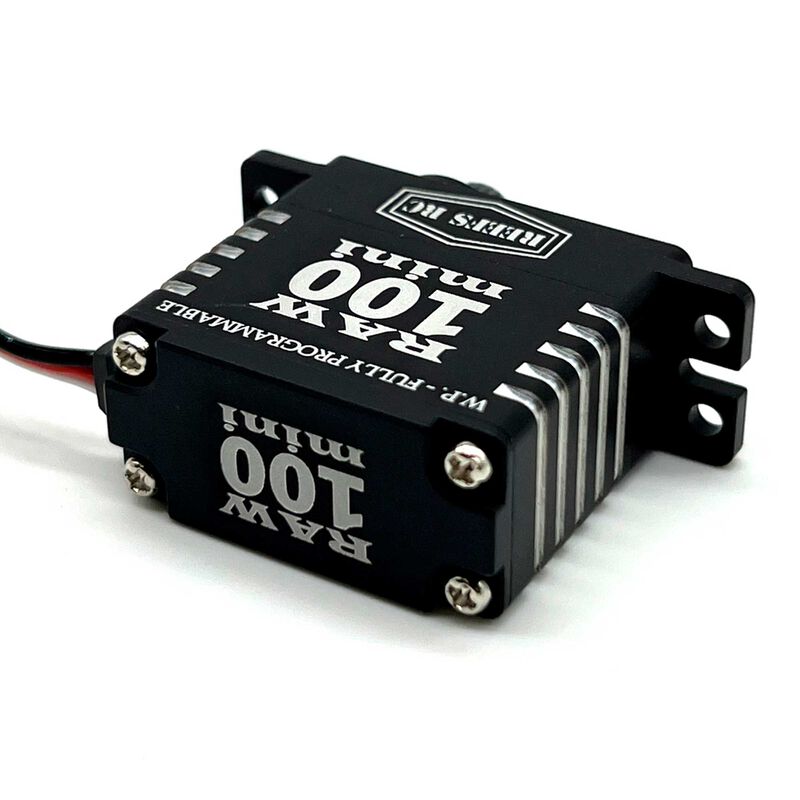

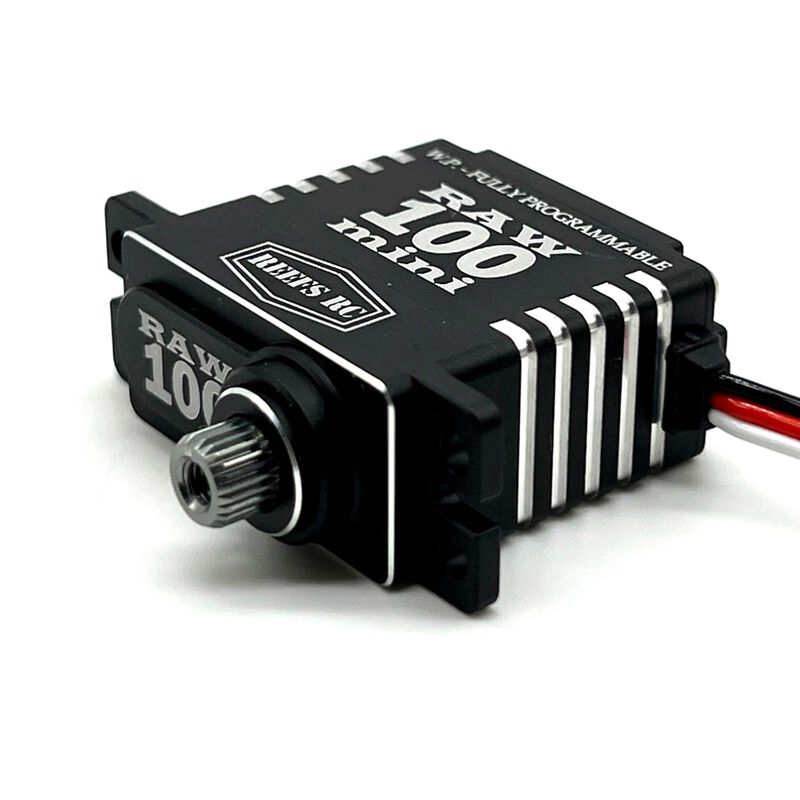

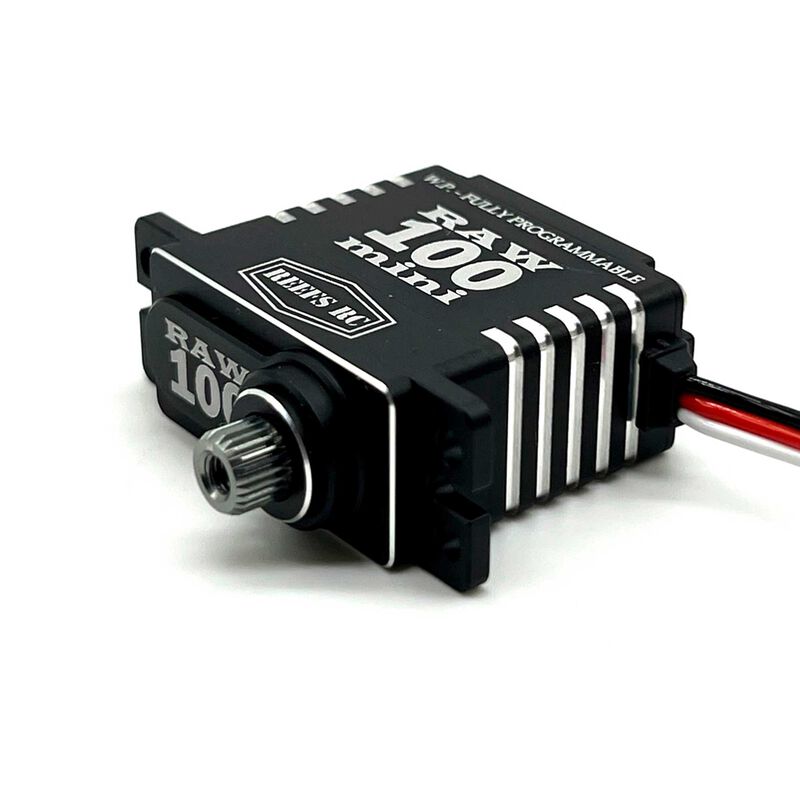

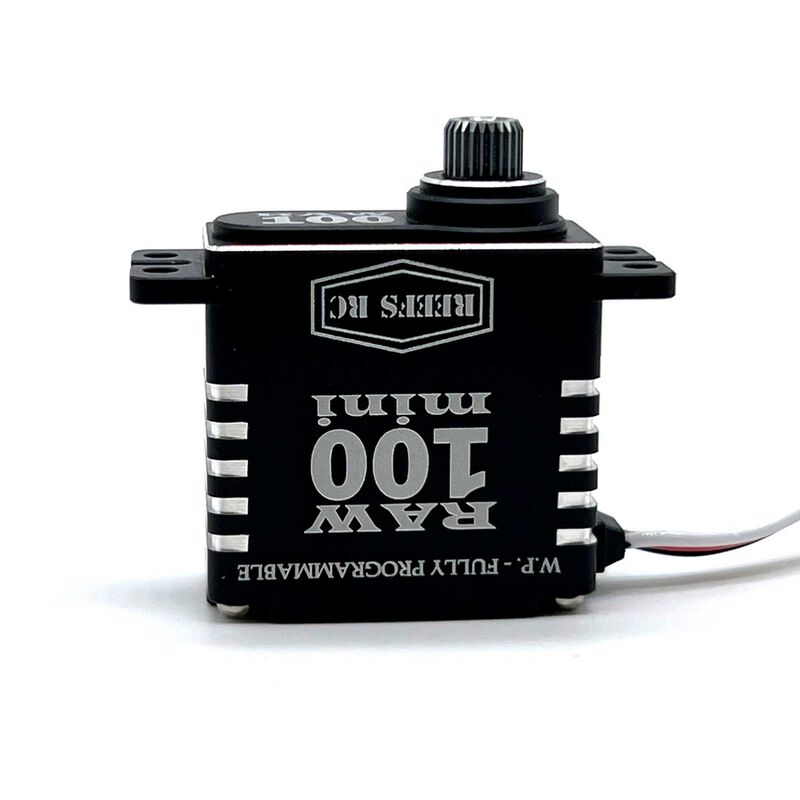

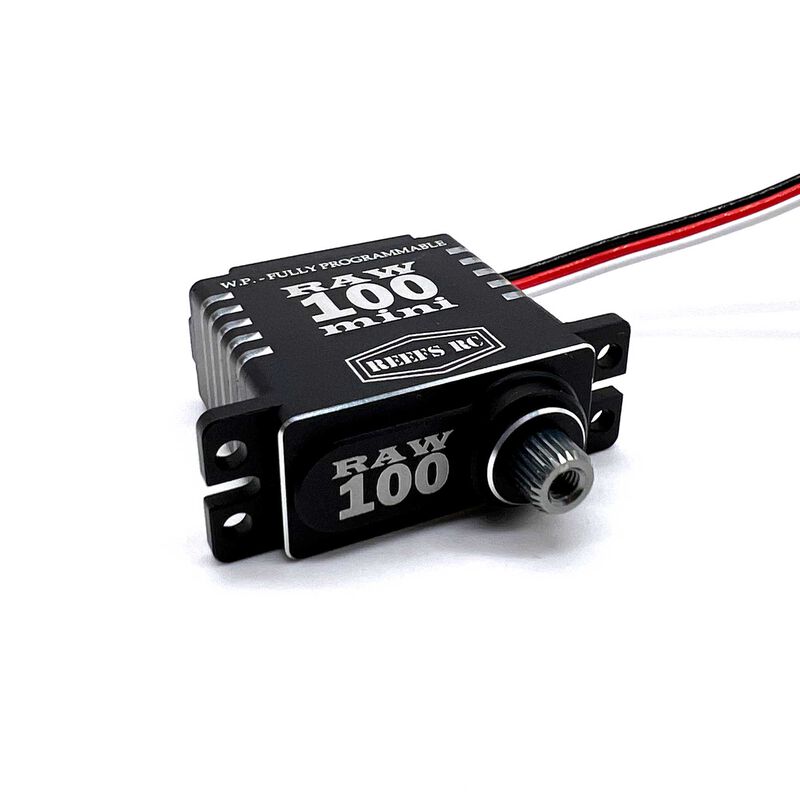

RAW 100 Mini Digital Metal Gear Waterproof Programmable Servo, Black - SEHREEFS135
Regular price
$84.99
Unit price
/
Unavailable
RAW 100 Mini Digital Metal Gear Waterproof Programmable Servo, Black - SEHREEFS135 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Details
RAW 100 Mini Digital Metal Gear Waterproof Programmable Servo, Black - SEHREEFS135
Product Specifications
| Deadband | 2µs |
| Product Height | 1.14" (29 mm) |
| Servo Type | Digital |
| Product Width | 0.55" (14 mm) |
| Current Draw Idle | 180mA @ 4.8V, 200mA @ 6.0V, 230mA @ 7.4V, 260mA @ 8.4V |
| Current Draw Stall | 1.2A @ 4.8V, 1.4A @ 6.0V, 1.5A @ 7.4V, 1.8A @ 8.4V |
| Servo Operating Voltage | 6.0 - 8.4V (HV) |
| Programmable | Yes |
| Servo Size Category | Mini |
| Application | 1/14 - 1/16 Cars, Trucks |
| Product Weight | 1.05oz (30g) |
| Spline Count | 25 - Tooth |
| Water-Resistant | Yes |
| Bearing | Dual Ball Bearing |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Connector Type | Universal |
| Maximum Servo Speed | 0.10 sec/60 deg @ 7.4V, 0.08 sec/60 deg @ 8.4V |
| Product Length | 1.16" (29 mm) |
| Maximum Servo Torque | 95oz/in @ 7.4V, 103oz/in @ 8.4V |
