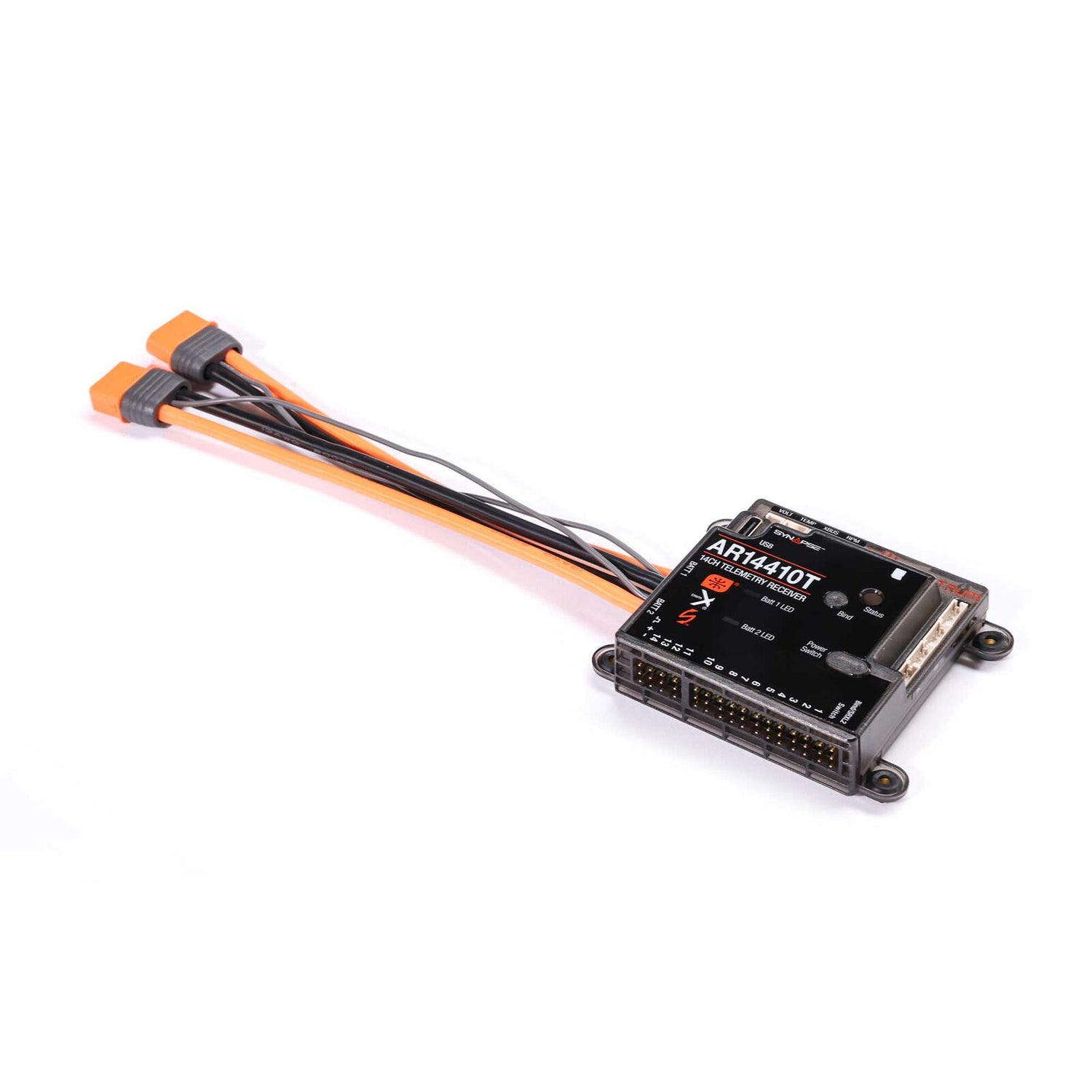

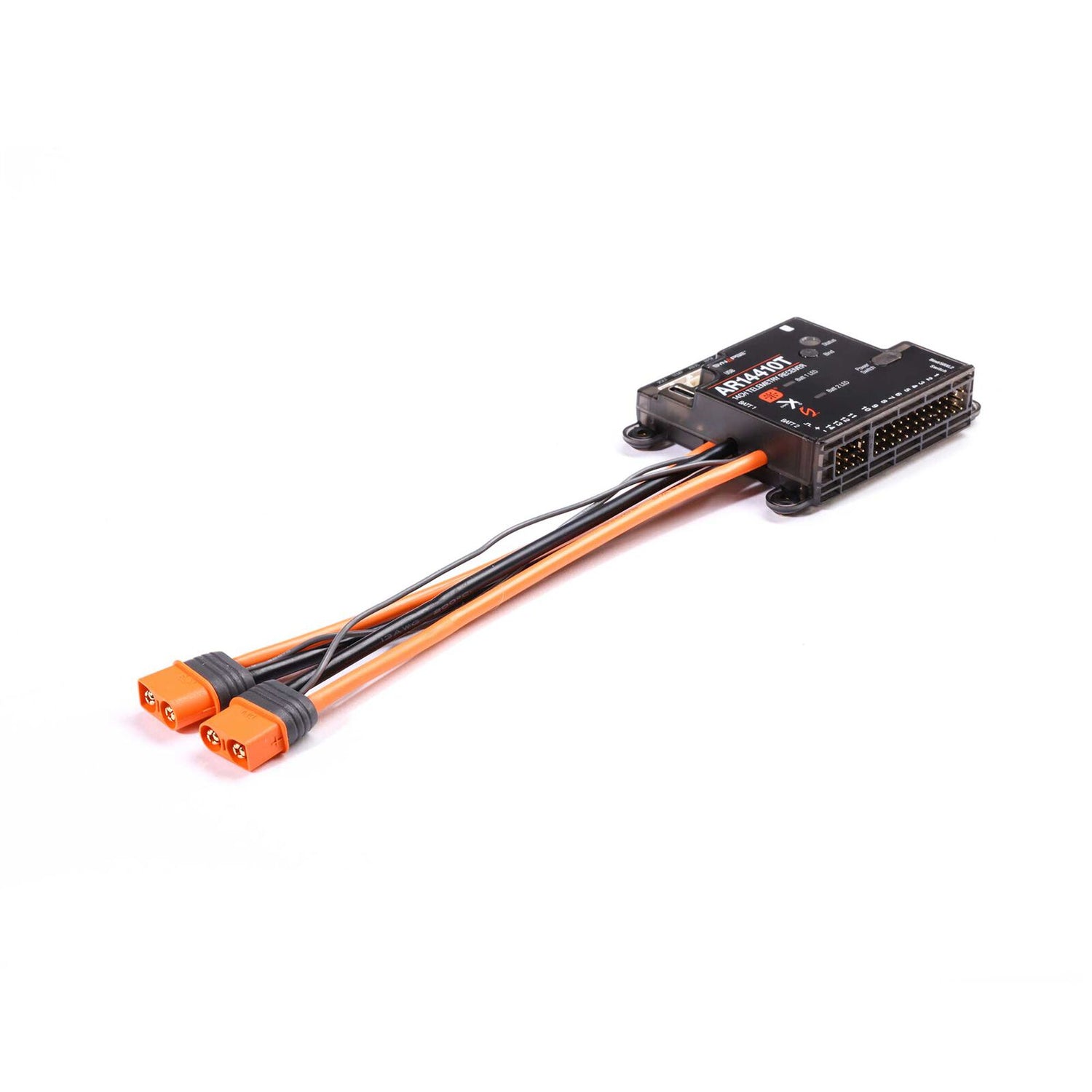

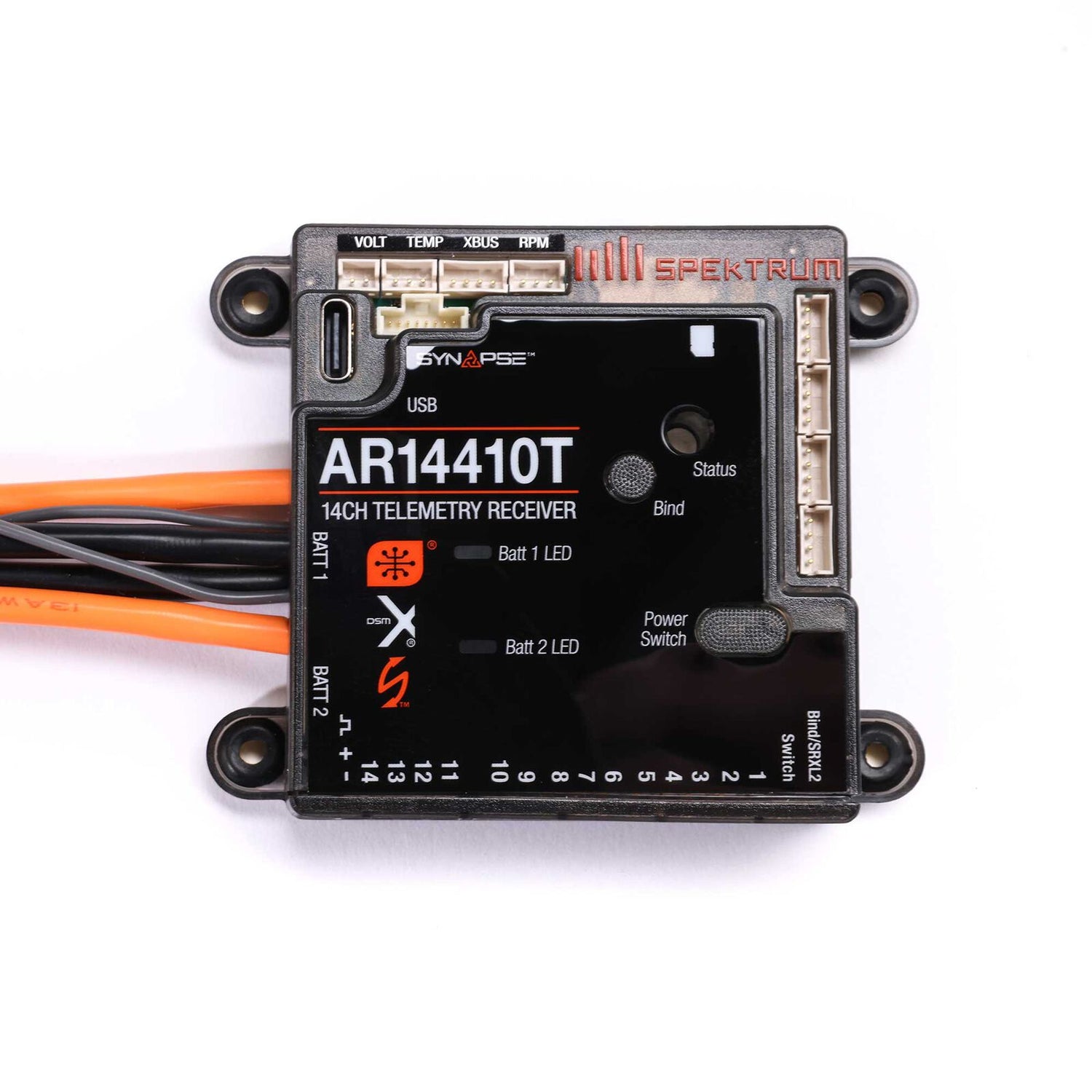

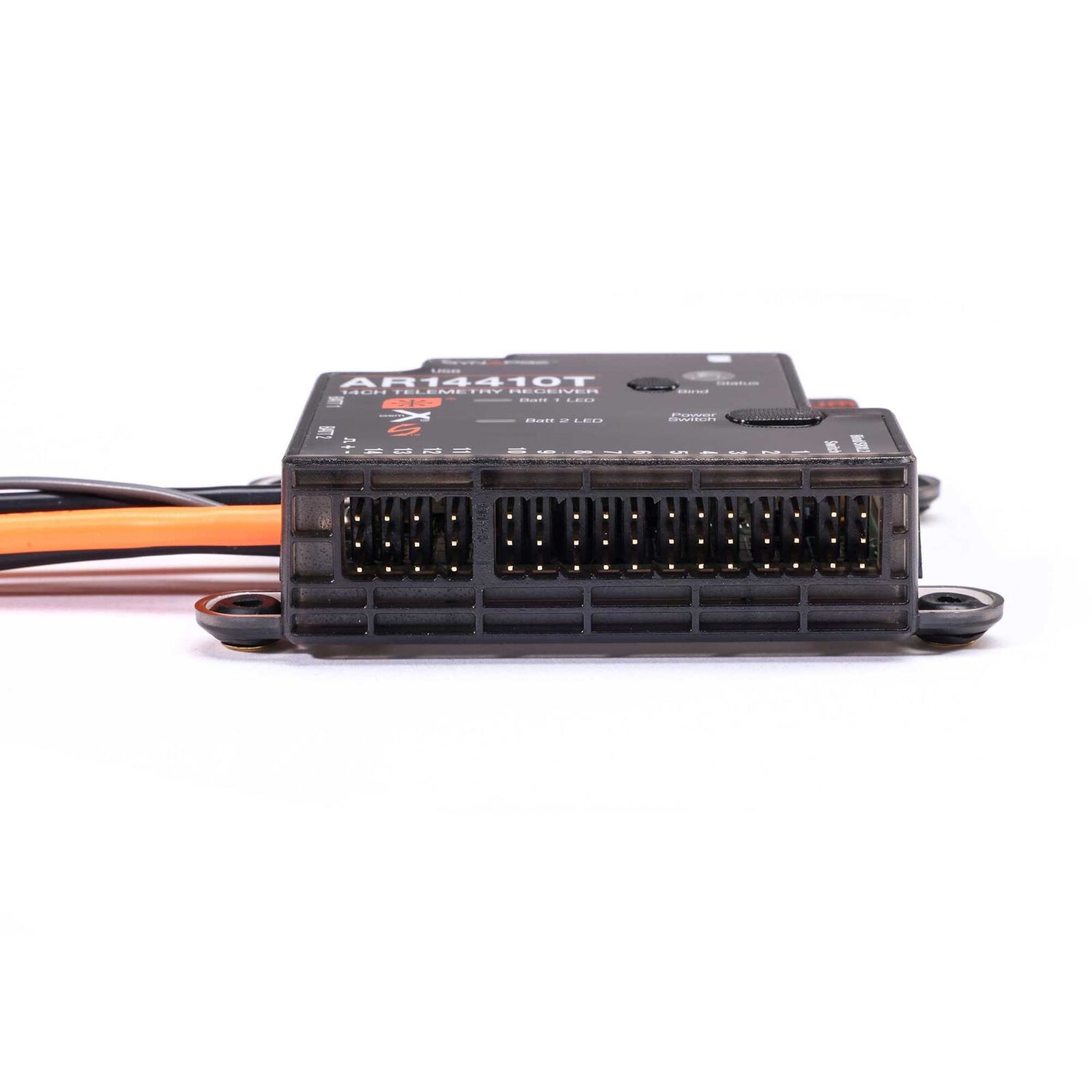

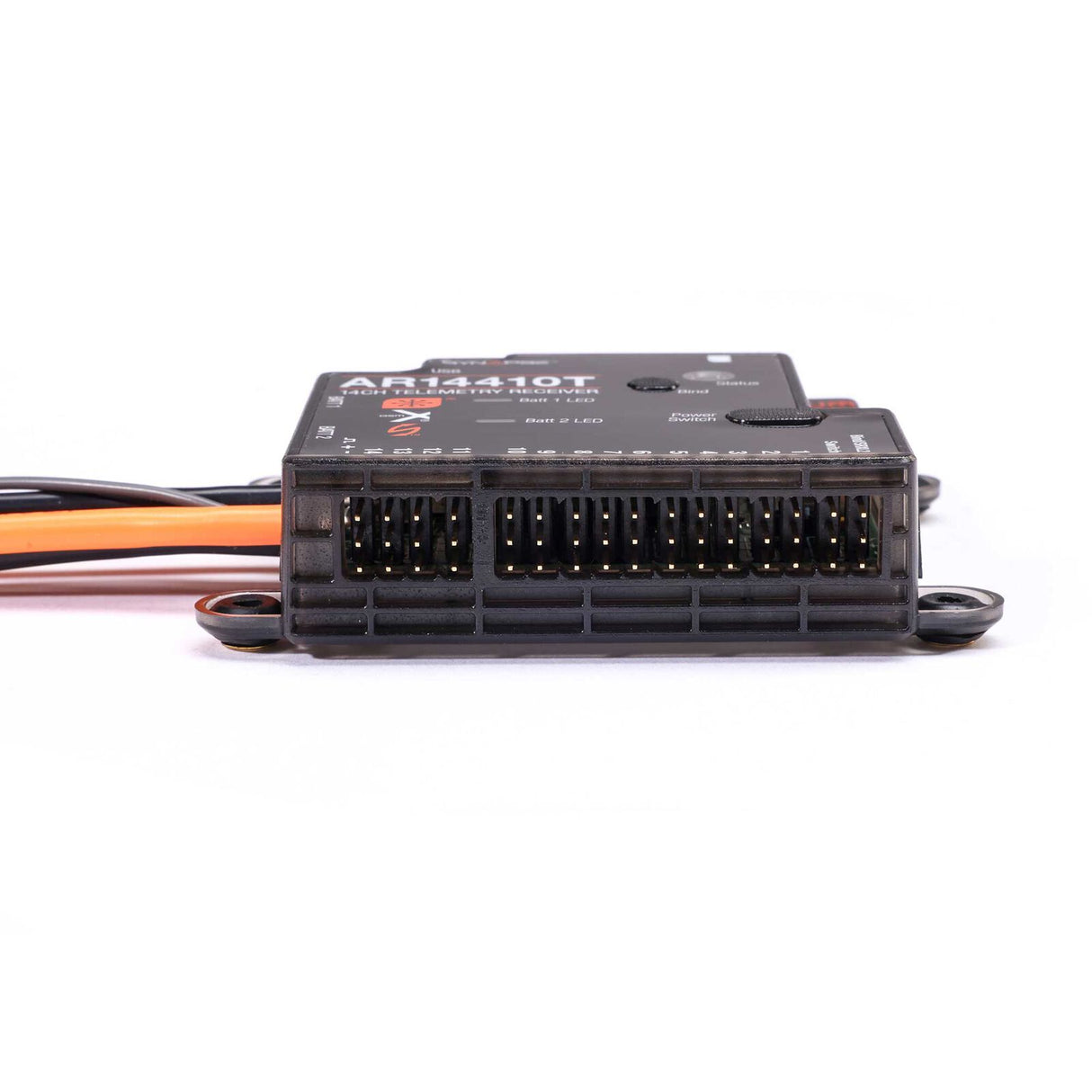

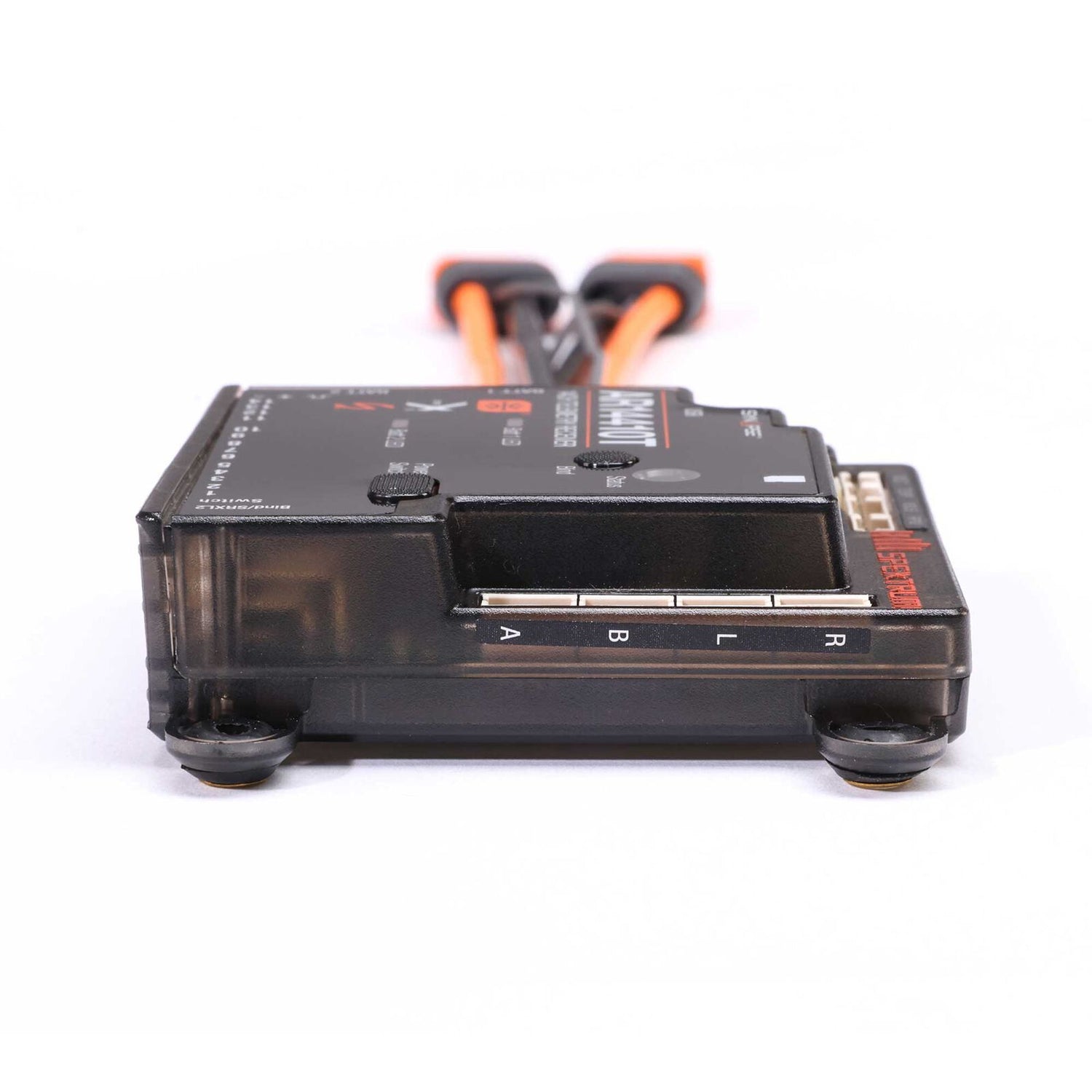

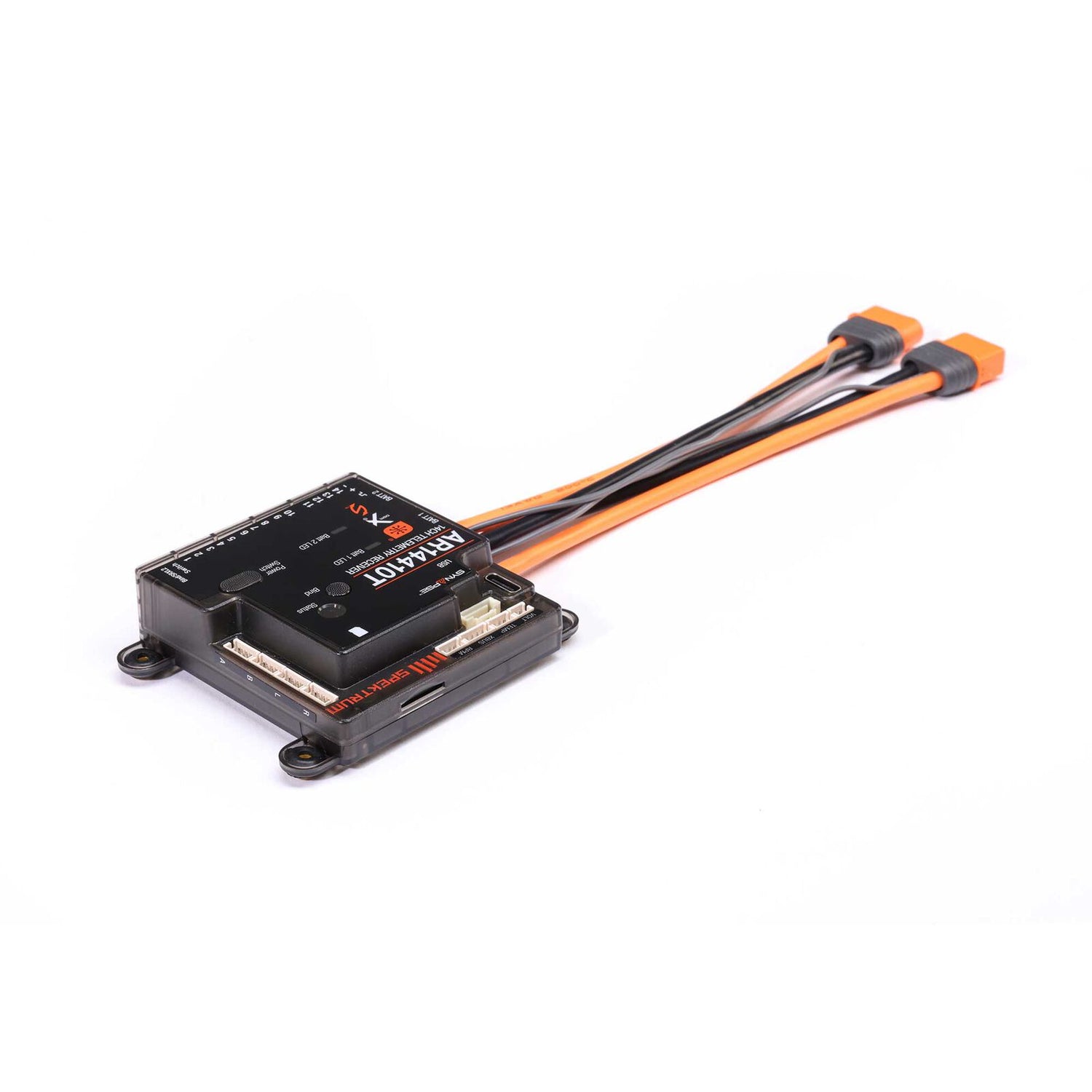

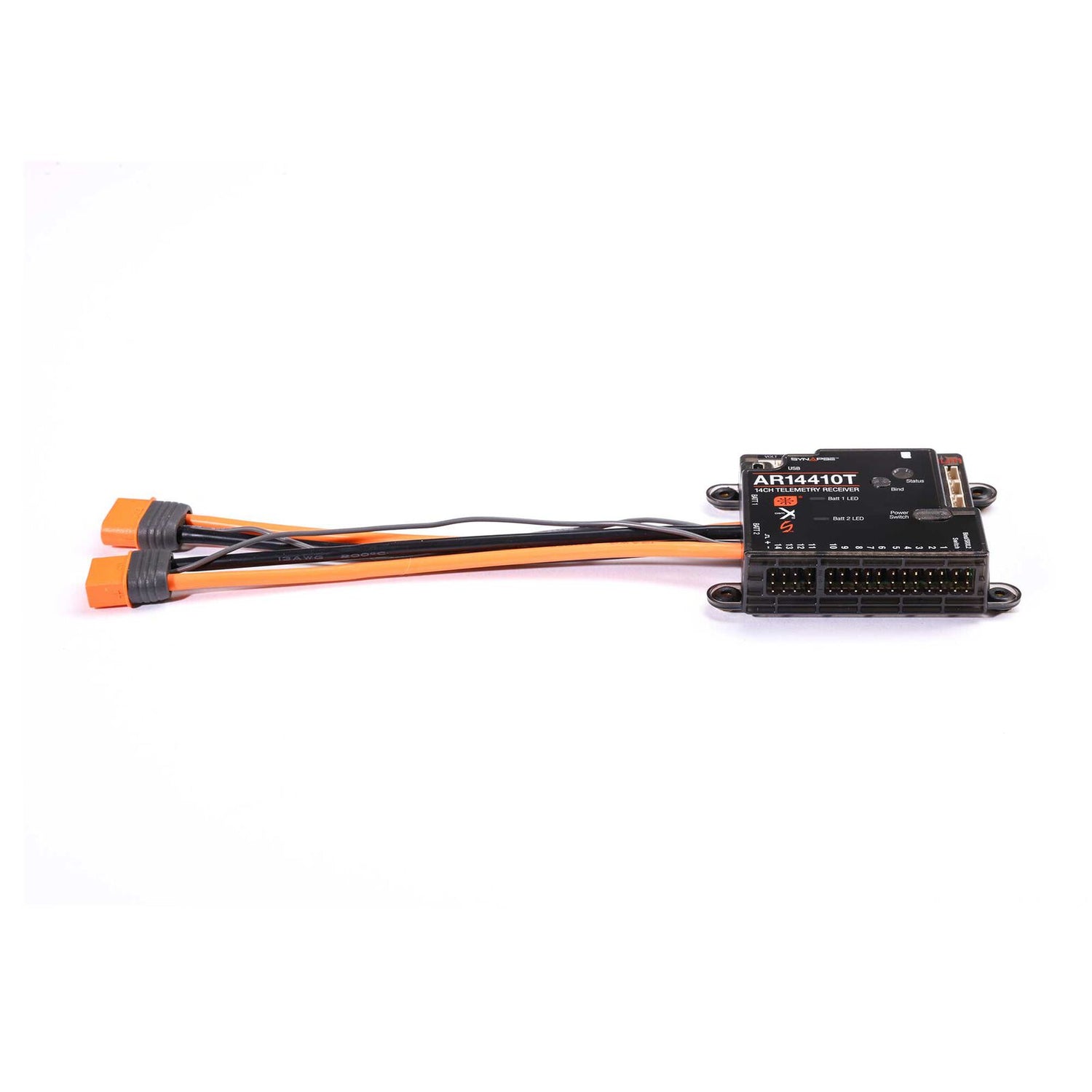

Spektrum AR14410T 14-Channel PowerSafe Telemetry Receiver

The AR14410T is a 14-channel PowerSafe telemetry receiver built for high-power aircraft, offering redundant battery inputs, full-range telemetry, and integrated altitude/vario sensing. It supports Smart ESC one-wire telemetry, Synapse AS3X+/SAFE stabilization, and backwards flight-log storage through an optional micro-SD card. With USB-C updating, sleep-mode control from the transmitter, and multiple bind options, it delivers reliable performance for demanding setups.

Features

• Compatible with Synapse AS3X+/SAFE stabilization module
• PowerSafe dual 13AWG IC3 battery leads for high-current aircraft
• Forward programming for failsafe, frame rate, and system setup
• Sleep mode with remote on/off from transmitter
• Regenerative servo support
• USB-C for updates and registration
• 12V servo support (via forward programming)
• Built-in battery capacity monitor and flight-log telemetry
• Integrated Black Box logging with micro-SD support
• LED status indicator for setup and warnings
• Smart ESC one-wire telemetry ready
• Built-in energy, voltage, altitude, and vario telemetry
• Soft Switch ensures uninterrupted servo power
• Clean rubber-grommet mounting and minimal labeling
• Supports high-speed 11ms frame rates
• Multiple bind methods including button and plug
• Ports for RPM, voltage, temperature, and X-Bus sensors
• Stop Lock, Release Rate, and improved gyro filtering
• Heading Hold, canard, and thrust-vectoring support

Specifications

• Application: Air
• Band: 2.4GHz
• Bind Method: Bind Button, Bind Plug
• Channels: 14
• Data Port: Yes
• Failsafe: Yes
• Input Voltage: 3.5–12.6V
• Integrated Variometer: Yes
• Modulation: DSMX / DSM2
• Product Height: 1.75" (44 mm)
• Product Length: 2.6" (66 mm)
• Product Weight: 2.7 oz (76 g)
• Product Width: 2.4" (61 mm)
• Programmable: Yes
• Range: Full
• Remote Receiver Ports: 4
• Resolution: 2048
• Serial Out: SRXL2
• Technology: AS3X+
• Telemetry: Yes
• XPlus Compatible: Yes

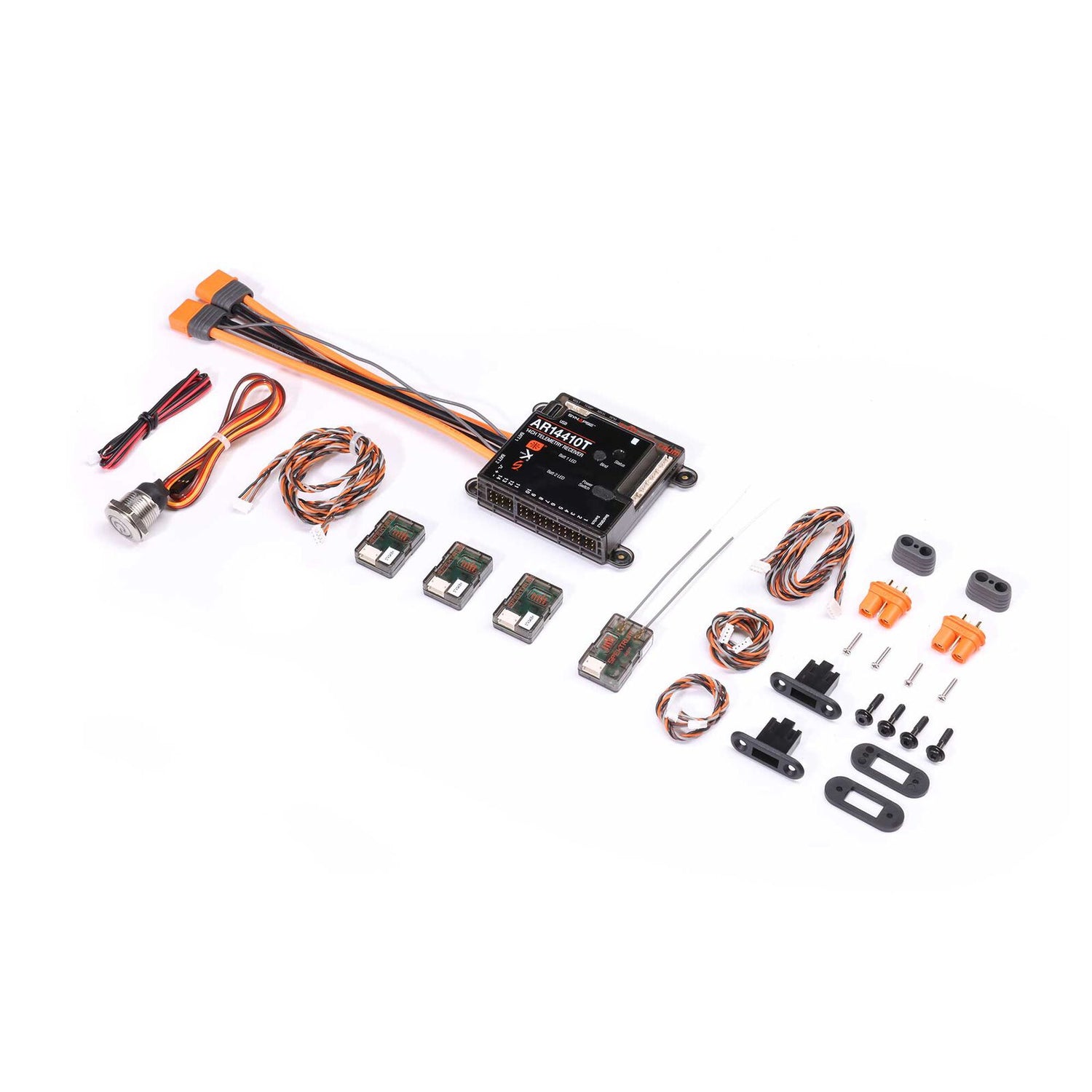

In The Box

• AR14410T 14-Channel PowerSafe Receiver (1)
• SPM4651T SRXL2 Remote Serial Telemetry Receiver (1)
• SPM9747 SRXL2 DSMX Remote Receivers (3)
• 9" SRXL2 Extension (1)
• 12" SRXL2 Extension (1)
• 24" SRXL2 Extension (1)
• 36" SRXL2 Extension (1)
• Battery IC3 Connectors (2)
• Charge Receptacles (2)
• Aircraft Telemetry Volt Sensor (1)
• Soft Switch (1)
• Instruction Manual (1)
