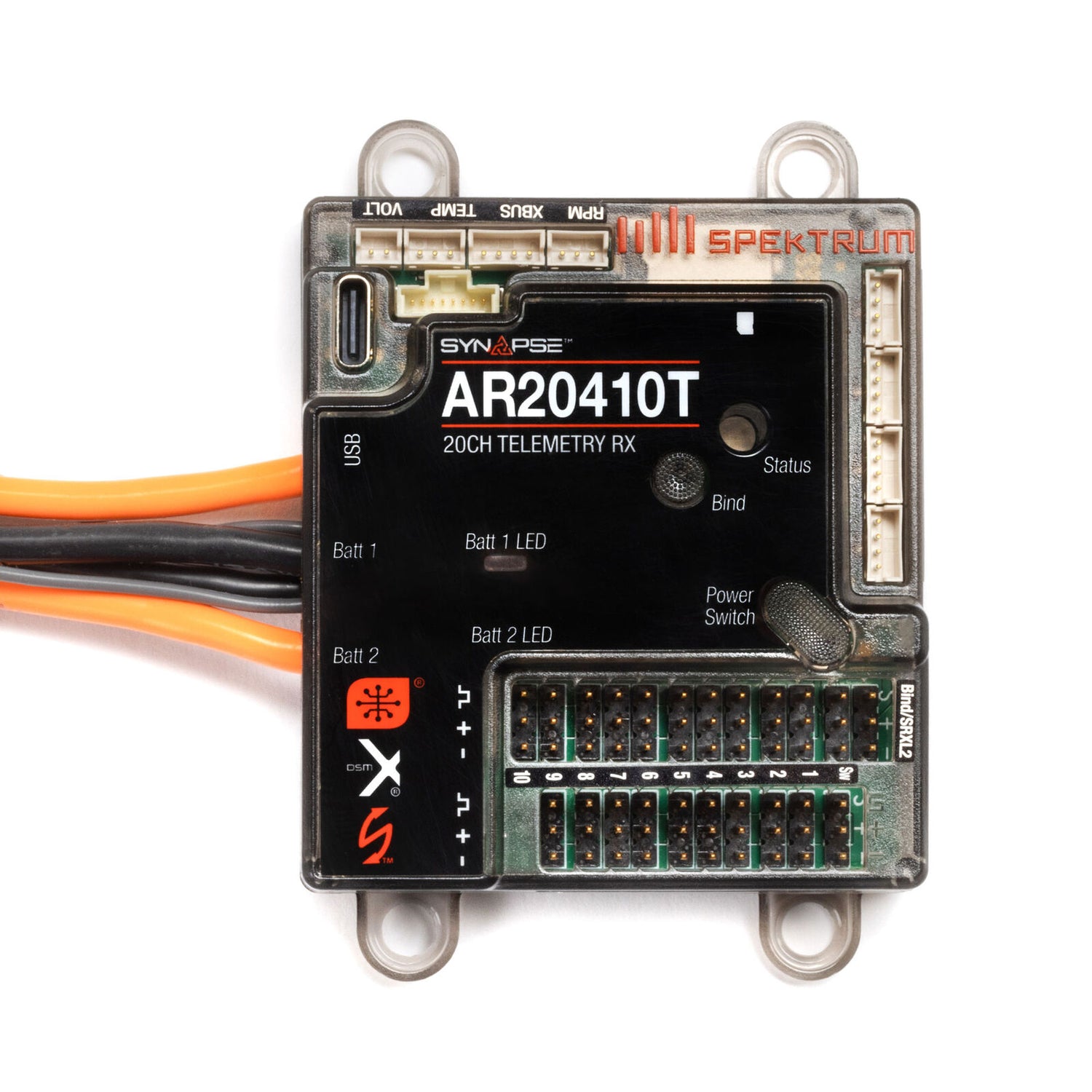

Spektrum AR20410T 20-Channel PowerSafe Receiver with Synapse AS3X+ and SAFE Stabilization Module

The AR20410T PowerSafe receiver paired with the Synapse AS3X+ module delivers a 20-channel high-current system for giant-scale and turbine aircraft. It offers full telemetry, dual IC3 battery inputs, advanced stabilization, fast boot recovery, and up to four independent gyro systems for canards, thrust vectoring, and complex setups.

Features

• Dual IC3 PowerSafe battery inputs (35A continuous / 50A burst)
• Full telemetry with Smart ESC and Smart battery support
• Fast boot recovery and sleep-mode power control
• SRXL2 connectivity and four remote receiver support
• Integrated battery capacity monitoring and Black Box logging
• 20 stabilized outputs with AS3X+ / SAFE
• Multi-gyro support for canards, thrust vectoring, and mixed surfaces
• USB-C updates and Forward Programming setup
• Aluminum case with vibration-isolated gyro
• Improved heading hold, filtering, stop-lock, and release-rate tuning

Specifications

• Channels: 20
• Input Voltage: 4–12.6V
• Band: 2.4GHz
• Modulation: DSMX
• Variometer: Yes
• Resolution: 2048 / 4096 (stabilization)
• Remote Ports: 4
• Telemetry: Yes
• Size: 2.4 × 2.72 × 0.75"
• Weight: 2.82 oz (80 g)

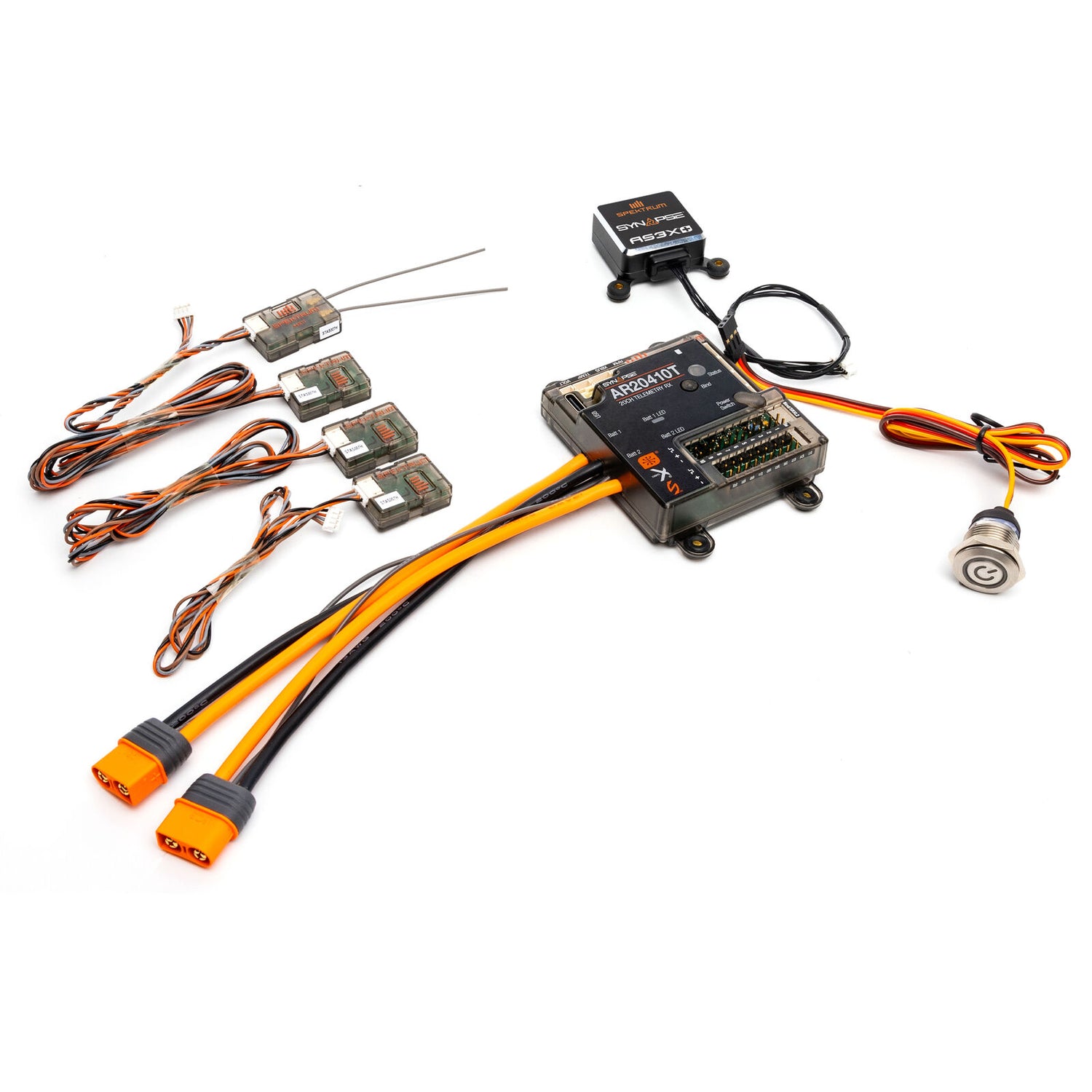

In The Box

• AR20410T PowerSafe Receiver (1)
• SPM4651T SRXL2 Remote Receiver (1)
• SPM9747 Remote Receivers (3)
• SRXL2 Extensions: 6" (1), 12" (1), 24" (1), 36" (1)
• IC3 Battery Leads (2)
• Charge Receptacles (2)
• Volt Sensor (1)
• Soft Switch (1)

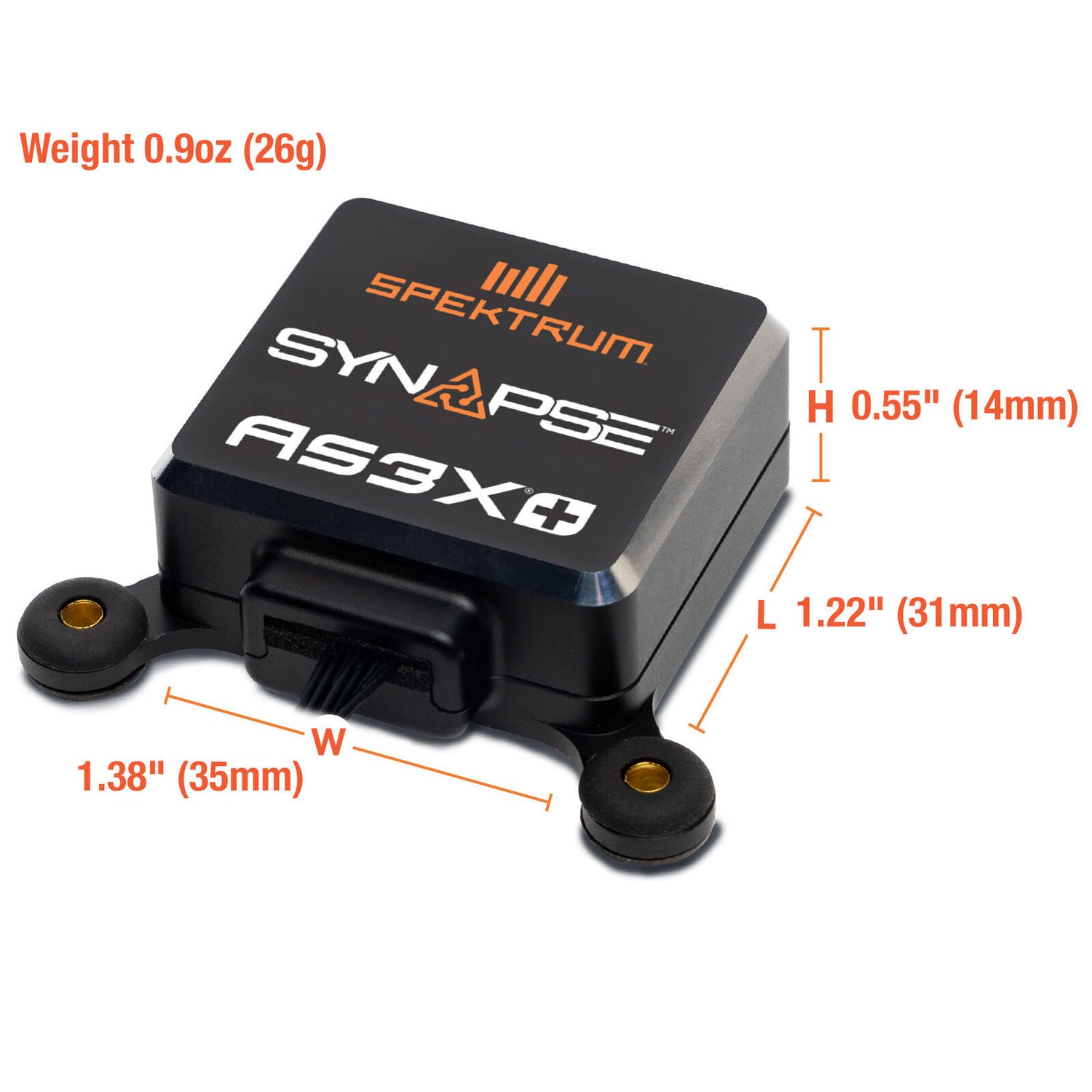

• Synapse AS3X+/SAFE Module (1)
• Mounting Screws (3)
• Manual (1)
