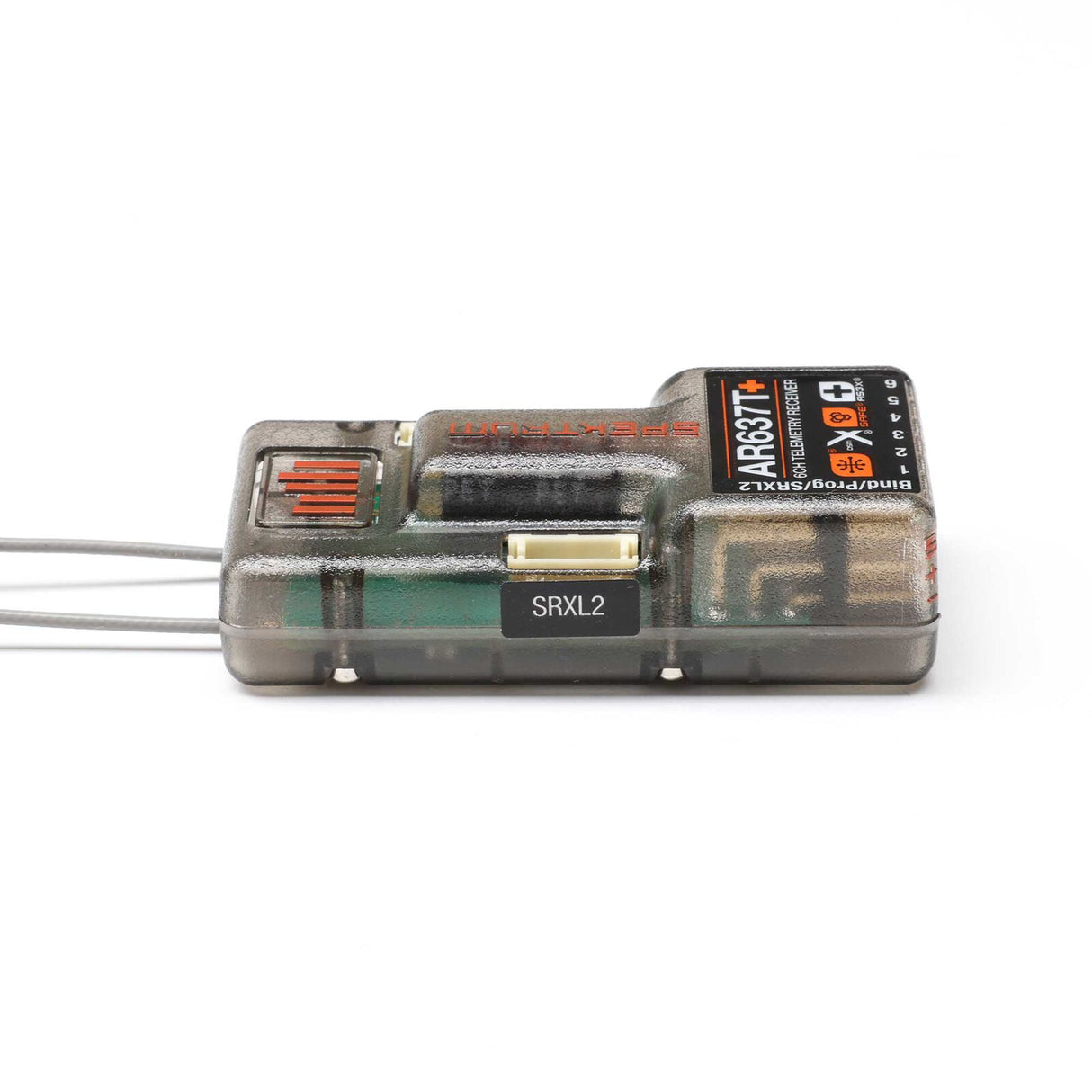

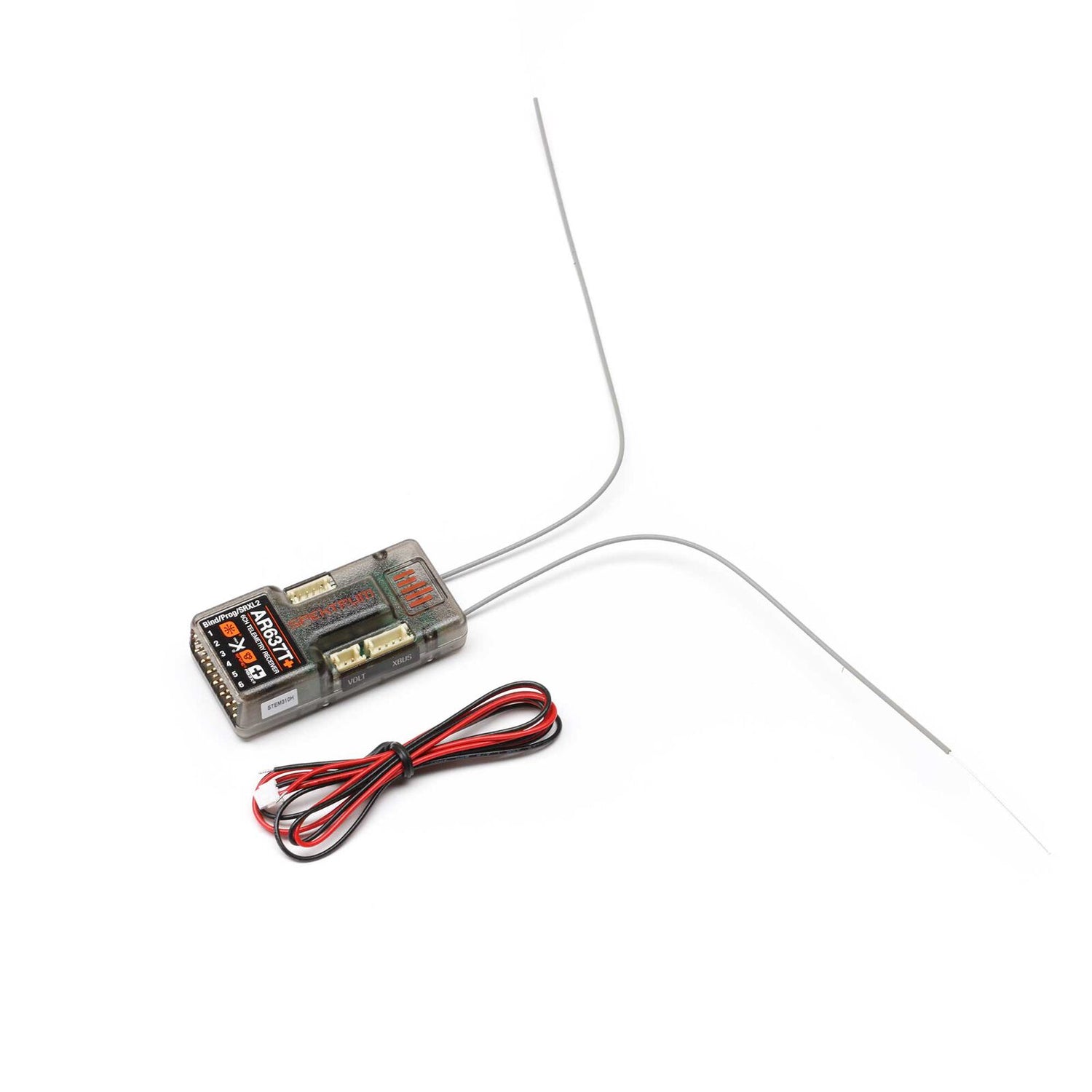

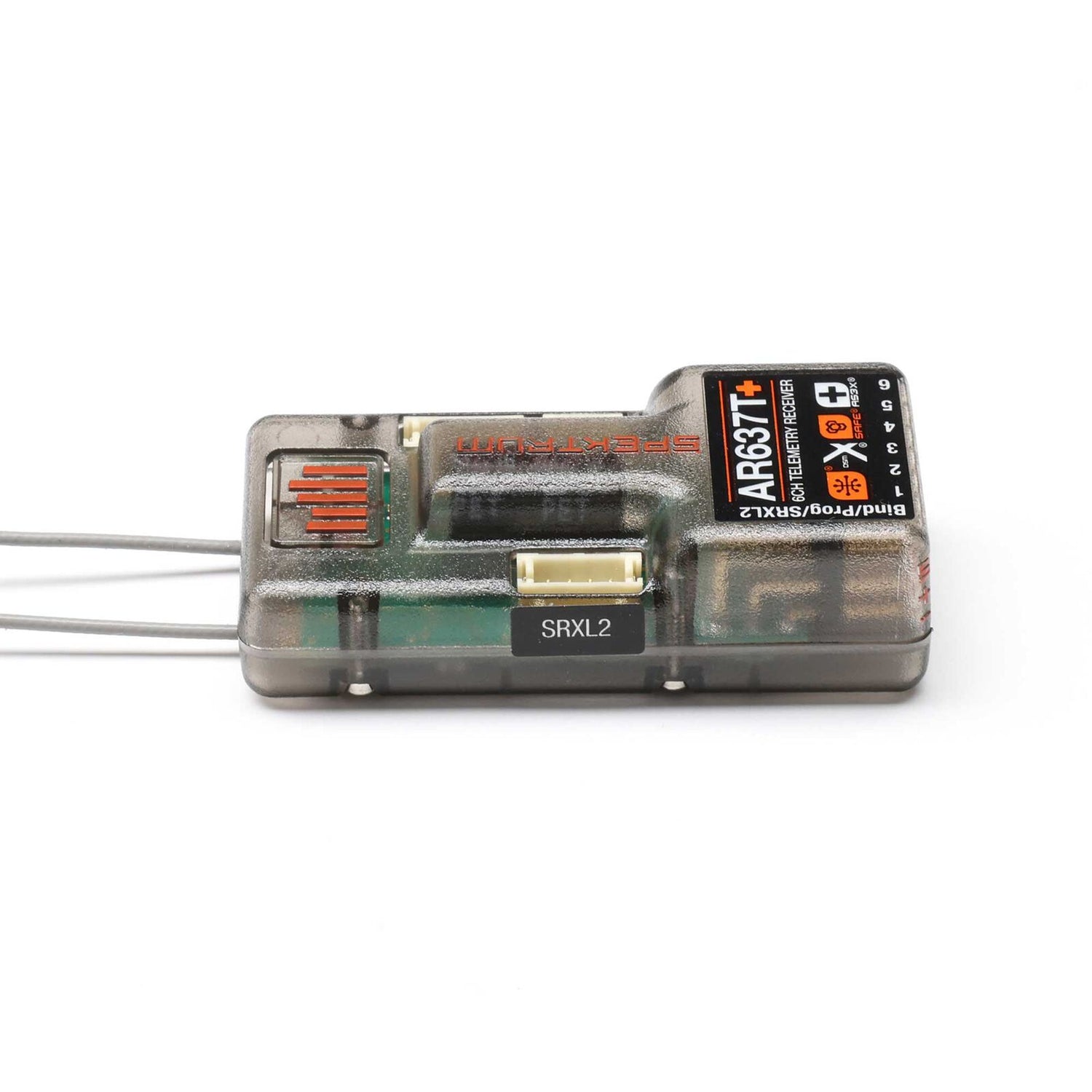

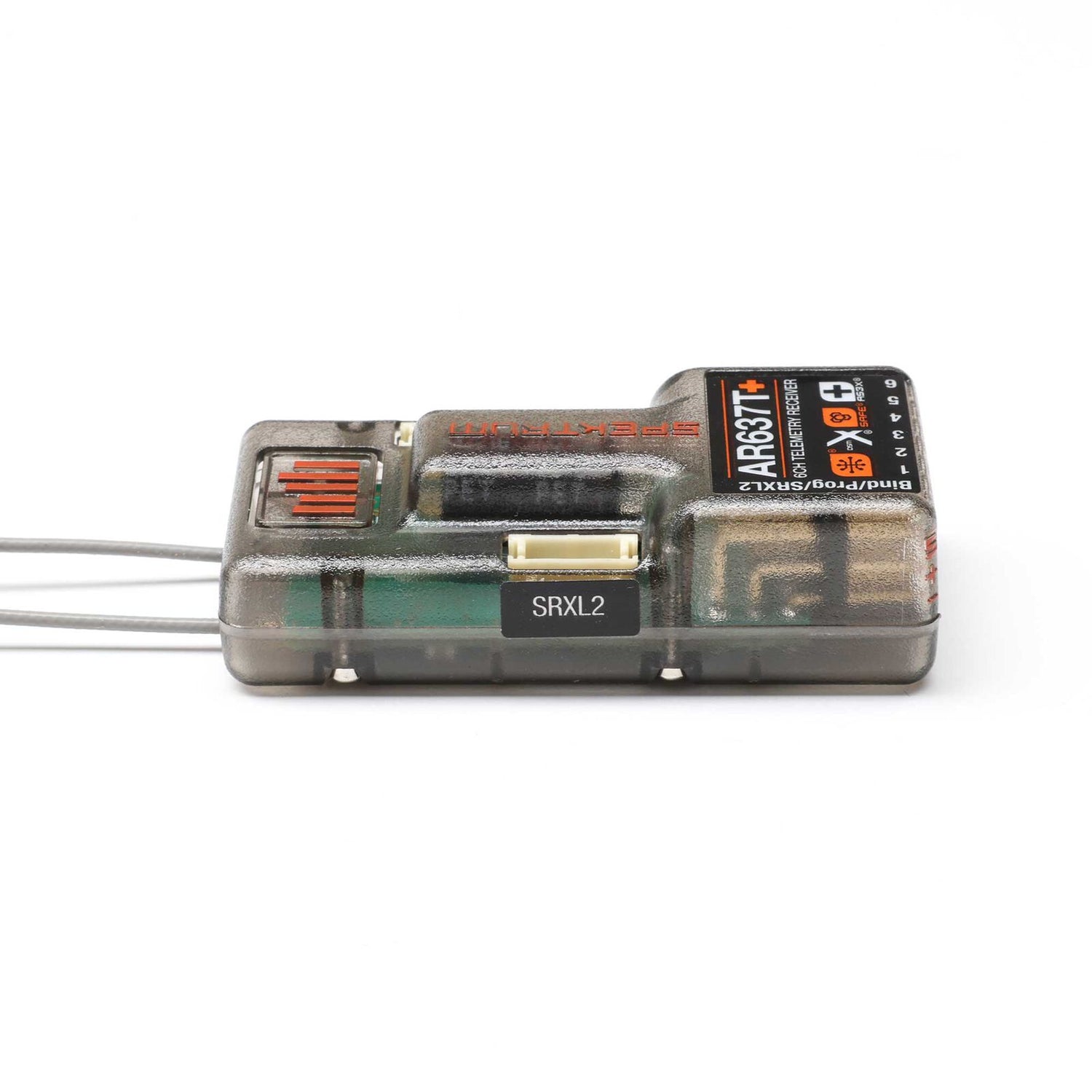

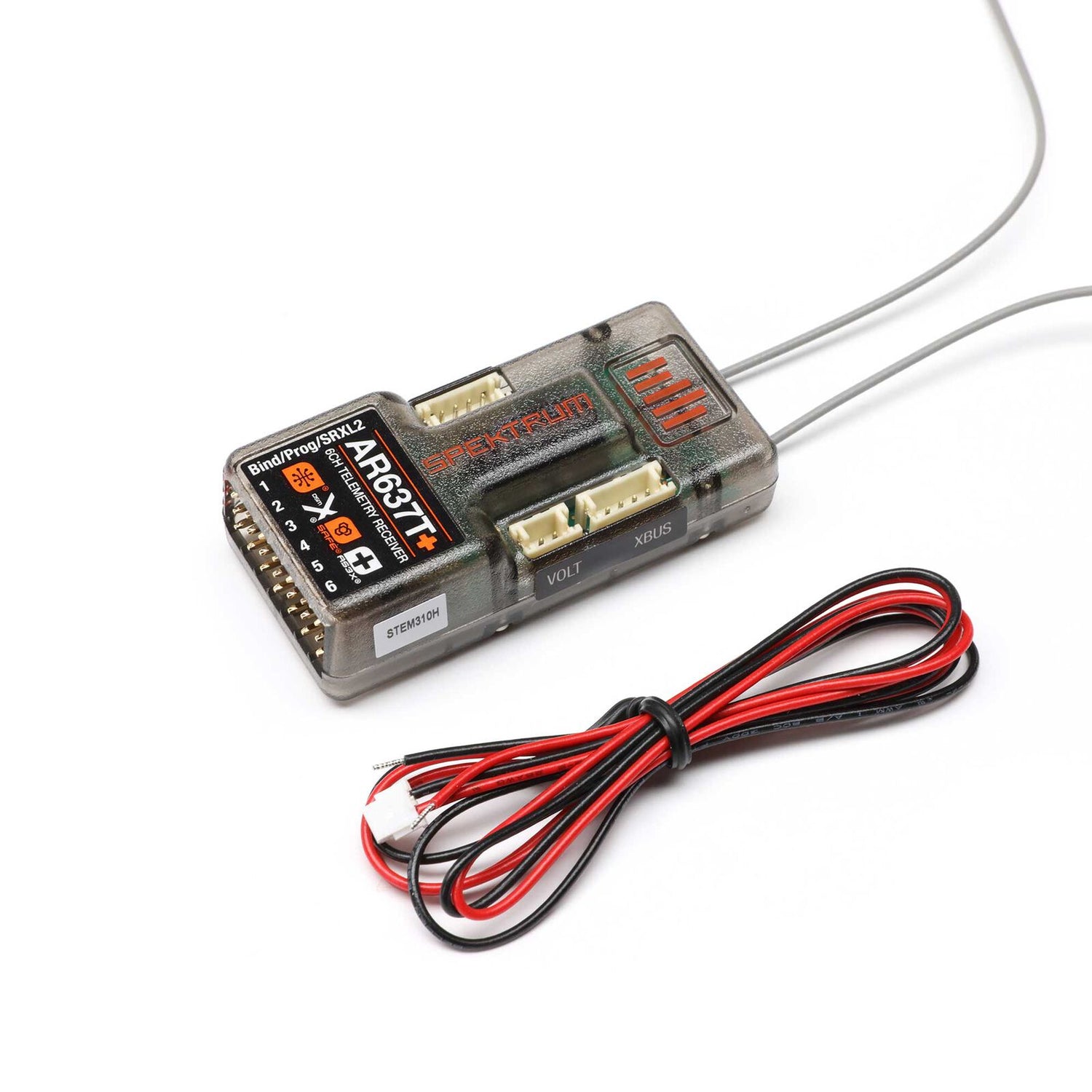

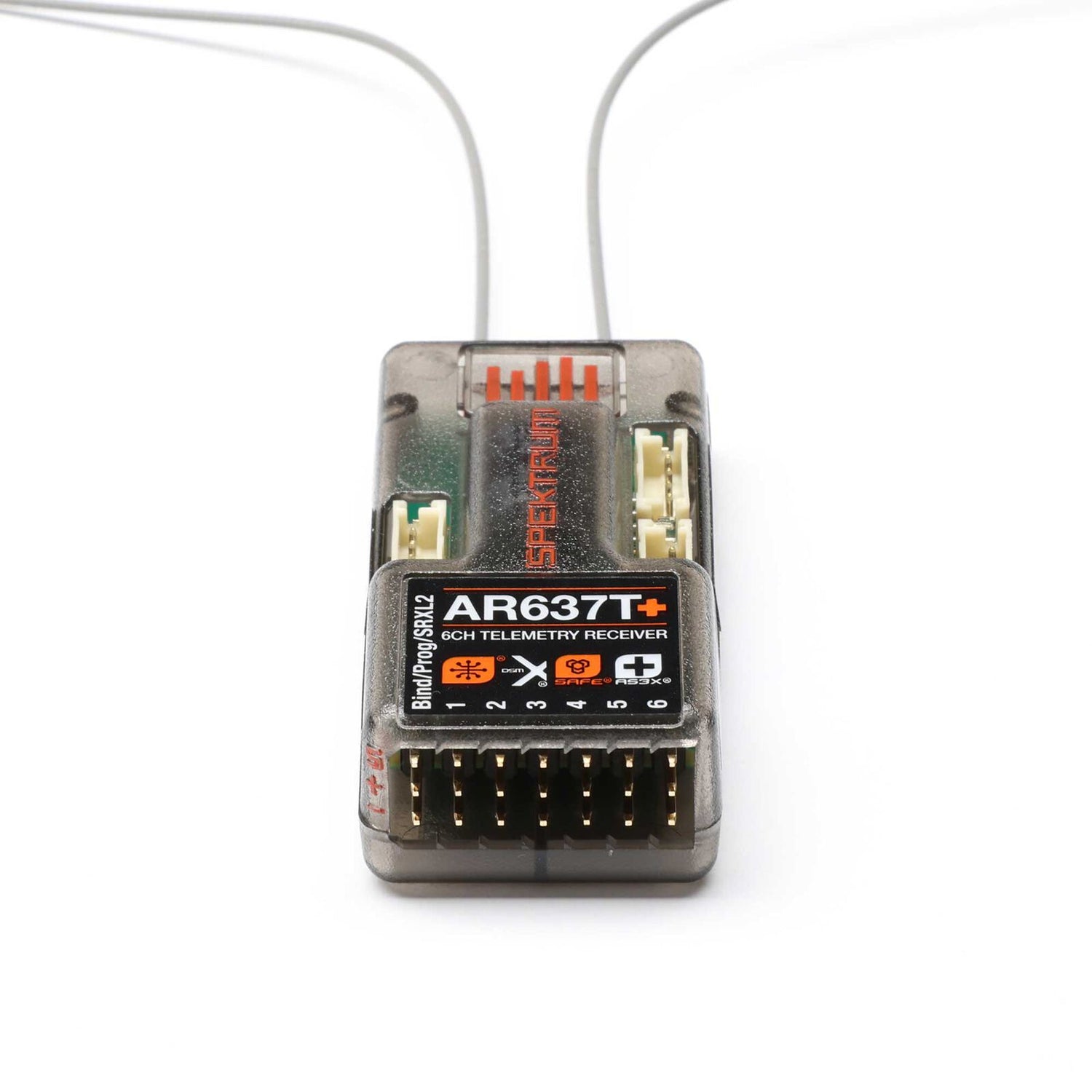

Spektrum AR637T+ DSMX 6-Channel AS3X+ & SAFE Telemetry Receiver

The Spektrum AR637T+ is a compact 6-channel DSM2/DSMX receiver with integrated AS3X+ and SAFE stabilization for improved precision, sensor accuracy, and flight feel. It features full-range telemetry with an onboard barometer, expansion ports for Smart sensors and SRXL2 remote receivers, and a bind button for simple setup. AS3X+ and SAFE functions are configured directly from compatible Spektrum transmitters through Forward Programming, with no cables or apps required.

Features

• AS3X+ and SAFE setup directly through Forward Programming
• Bind button for fast, plug-free binding
• End-pin lightweight hard-case design
• Ports for SRXL2 remote receivers and telemetry sensors
• Standard servo connectors
• Improved gyro filtering and heading hold
• Stop Lock and Release Rate parameters
• Supports canard and thrust-vectoring aircraft

Specifications

• Antenna Length: 6.10" (155 mm) & 7.32" (186 mm)
• Application: Airplane, Sailplane
• Band: 2.4GHz
• Bind Method: Bind Button
• Channels: 6
• Data Port: No
• Failsafe: Yes
• Flight Log Compatible: No
• Forward Programming: Yes
• Input Voltage: 3.5–9V
• Integrated Variometer: Yes
• Modulation: DSMX / DSM2
• Product Height: 0.595" (15.02 mm)
• Product Length: 1.96" (49.8 mm)
• Product Weight: 0.42 oz (12 g)
• Product Width: 0.94" (23.3 mm)
• Programmable: Yes
• Range: Full
• Remote Receiver Ports: 1
• Resolution: 2048
• Rev Limiter: No
• Serial Out: SRXL2
• Technology: AS3X+, SAFE
• Telemetry: Integrated
• Telemetry Range: Full-Range Integrated
• Water-Resistant: No

In The Box

• AR637T+ 6-Channel AS3X+ / SAFE Telemetry Receiver (1)
• Product Manual (1)

Needed to Complete

• • Telemetry-capable DSMX transmitter (1)
  • Servo extensions if required
