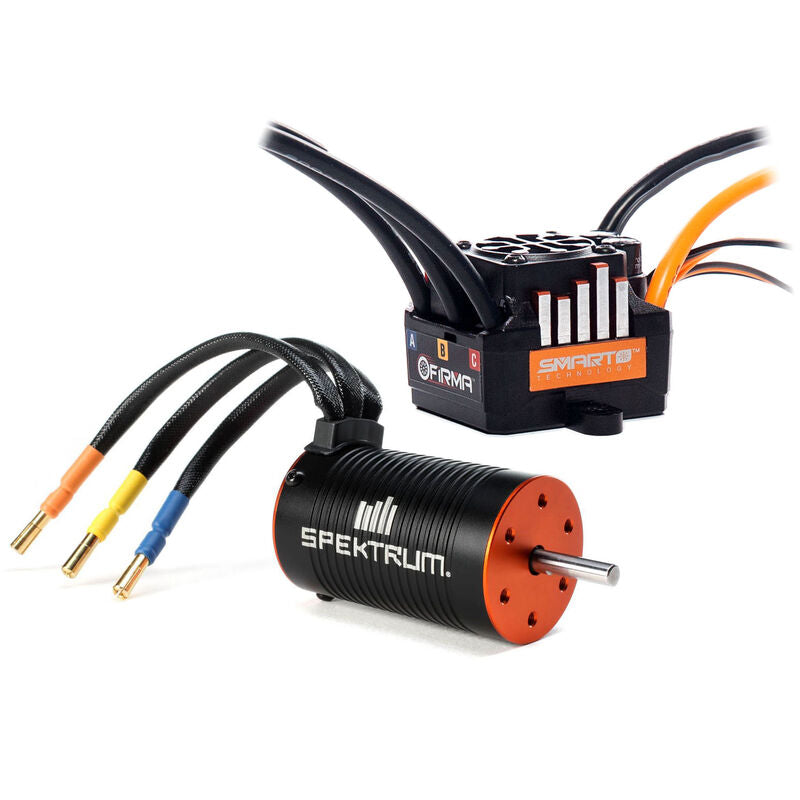

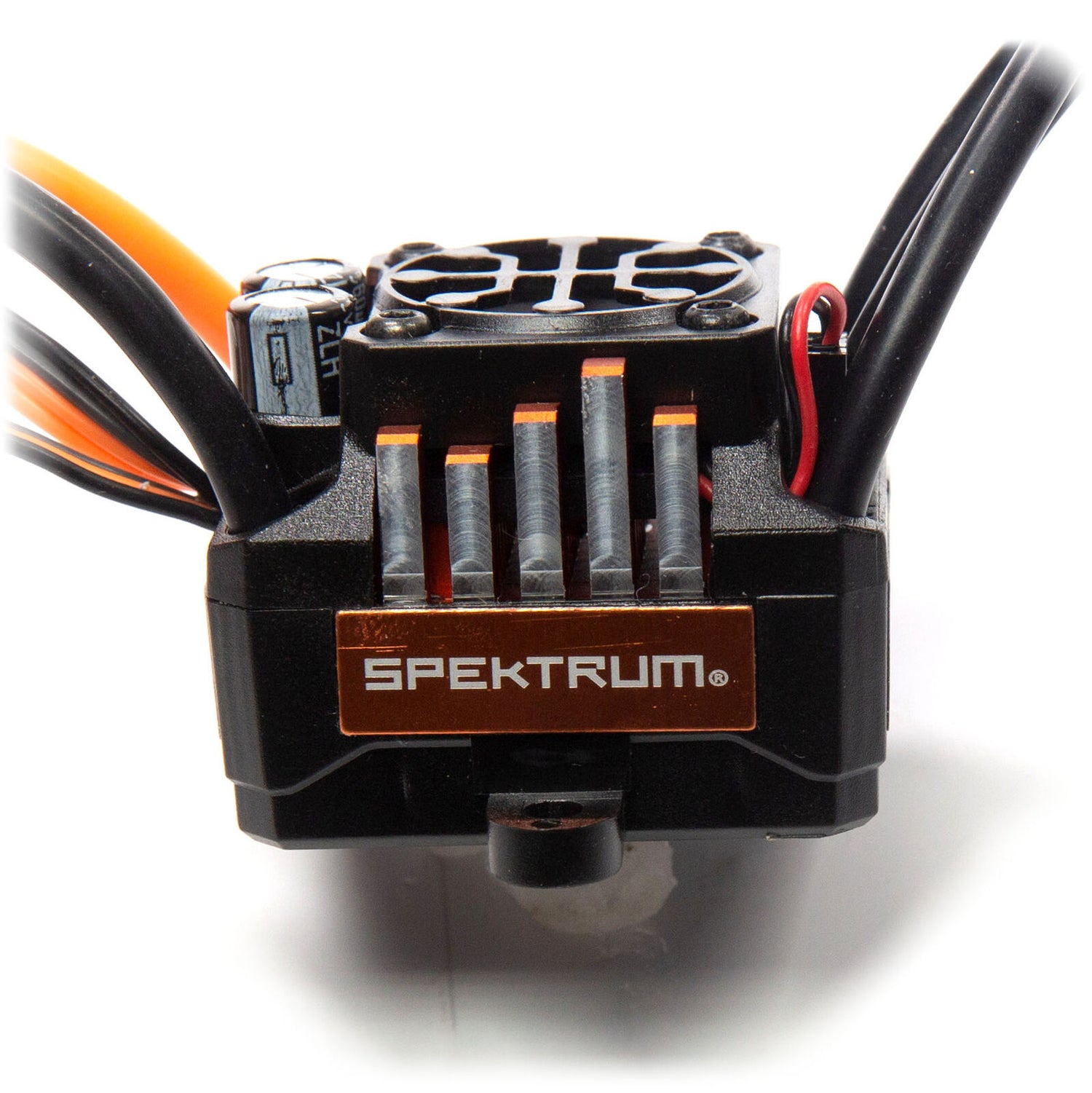

Spektrum Firma 85A Brushless Smart ESC / 4000Kv Sensorless Motor Combo
Spektrum Firma 85A Brushless Smart ESC / 4000Kv Sensorless Motor Combo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Spektrum Firma 85A Brushless Smart ESC / 4000Kv Sensorless Motor Combo
Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine "plug-and-play" simplicity with the ability to communicate with other Smart electronics - together, creating the best-performing RC system for your vehicle imaginable.
Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.
With Firma Smart ESCs, you'll be better connected to your vehicle than ever before - without installing extra components that all work independently of each other. You won't need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.
Firma ESCs not only gather the data but also send it to your transmitter in real time, instead of only storing it for after-run study. You're able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!
- Smart all-in-one telemetry
- Fast, powerful 32-bit ARM M4 processor
- Waterproof
- Multiple options for easy programming:

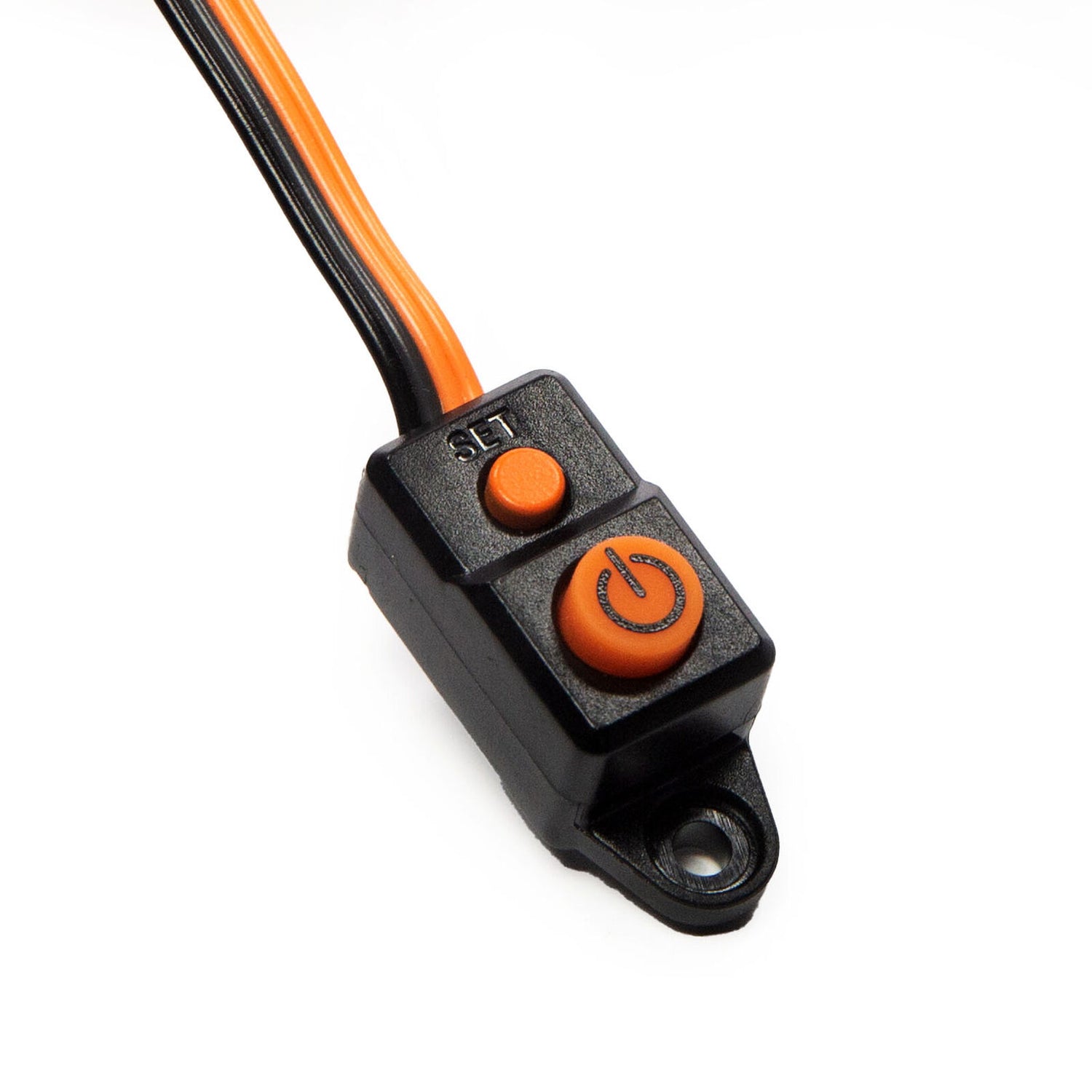

- Button programming
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrum™ engineers, in partnership with the industry's leading ESC manufacturer
- Hand-picked combo for 2WD 1/10th scale surface applications running on 2s Lipo setups

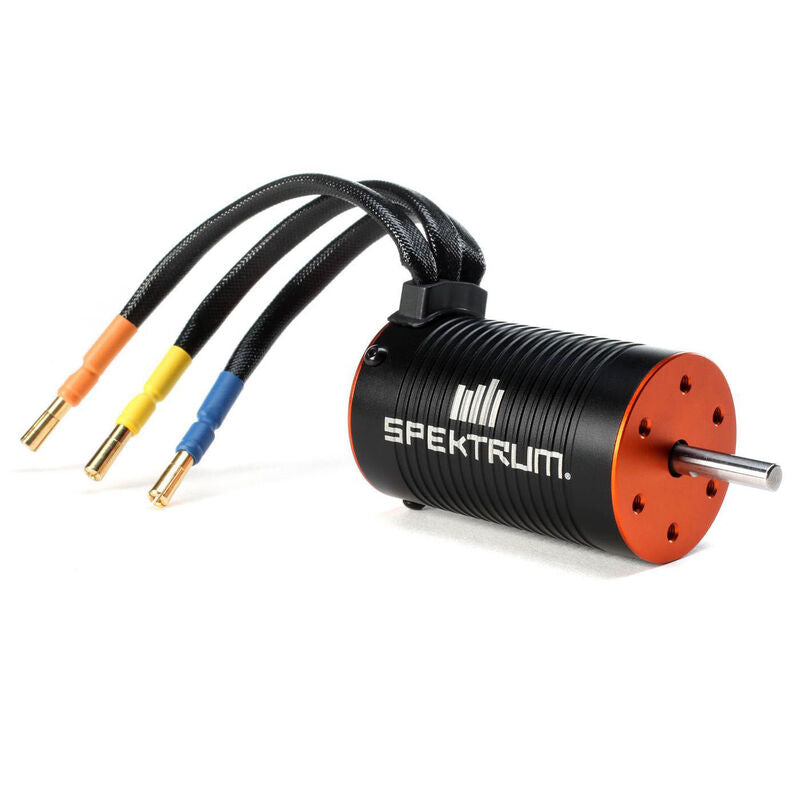

- Includes high performance and durability Spektrum Firma 4000kV Brushless motor
- High current adjustable BEC (6v or 7.4v @ 4 Amps)
- Compact for easy installation in most applications
- Ready to install - no soldering required

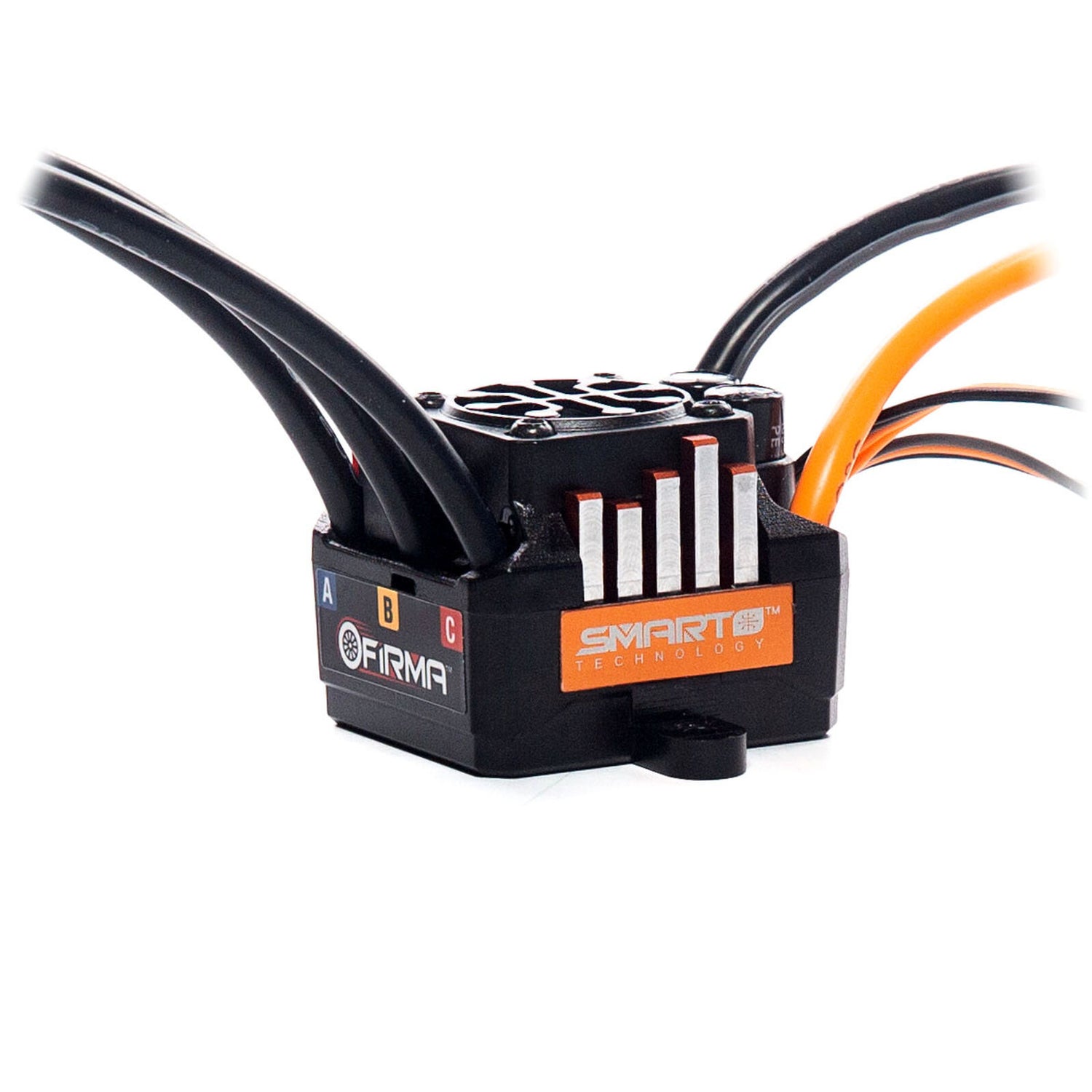

- Rugged plastic case with mounting tabs
- Aluminum heat sink for high efficiency

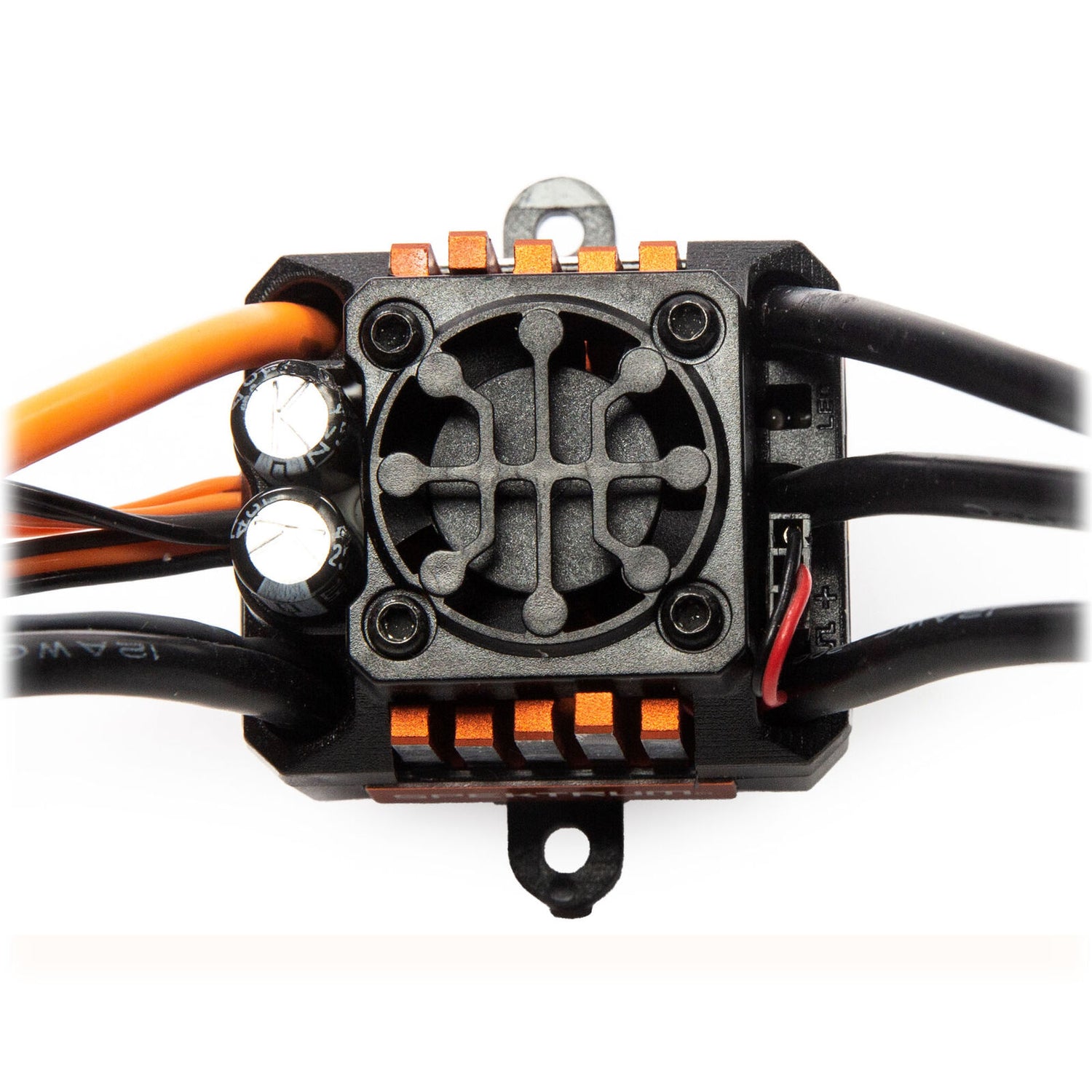

- Cooling fan
- Adjustable high-power BEC
- Firmware updatable through the Smart ESC Programming Box

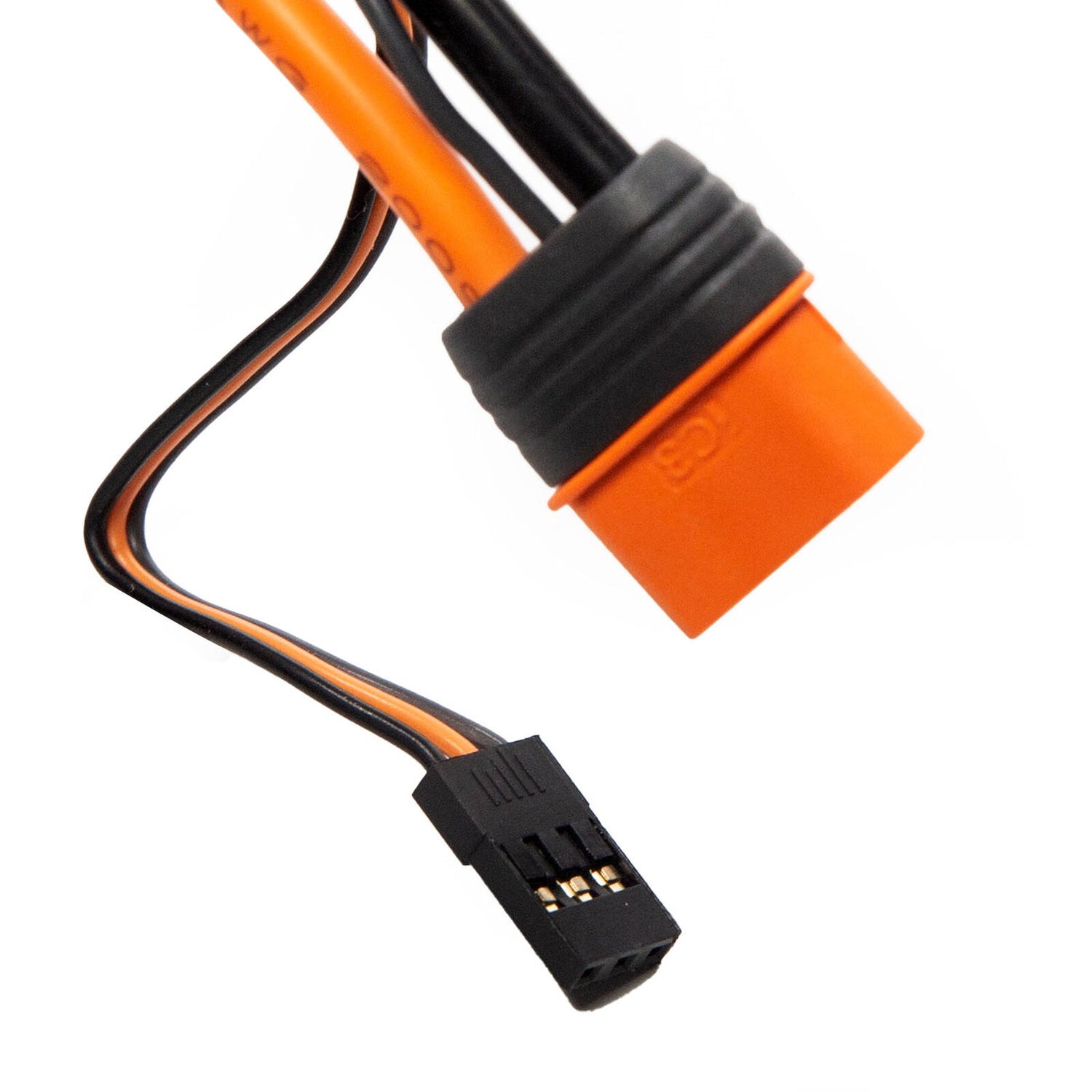

- High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
- Limited 1-year warranty
Specifications:
- Adjustable Timing: No
- Amperage: 80A - 99A
- Application: Surface
- Auto Cutoff: Yes
- Battery Input Lead: IC3
- Battery Type: LiPo (3.7V per cell)
- BEC: Yes
- BEC Continuous Current: 4A
- BEC Maximum Burst Current: 8A
- BEC Type: Switch Mode
- BEC Voltage: 6V / 7.4V
- Brakes: Yes
- Connector Type: IC3
- Constant Wattage: 250-499W
- Drive Type: Forward/Brake/Reverse
- Efficiency: 81%
- ESC Type: Brushless
- Forward: Yes
- Input Voltage: 2S LiPo for included motor (do not exceed 2S LiPo power with this motor)
- Integrated ESC: No
- Kv Rating: 3000Kv or more
- Low-Voltage Cutoff Programmable: Yes
- Max Input Voltage: 11.1V
- Maximum Burst Current: 550A
- Maximum Continuous Current: 40A
- Motor Class: 1/10 Scale
- Motor Design: Inrunner

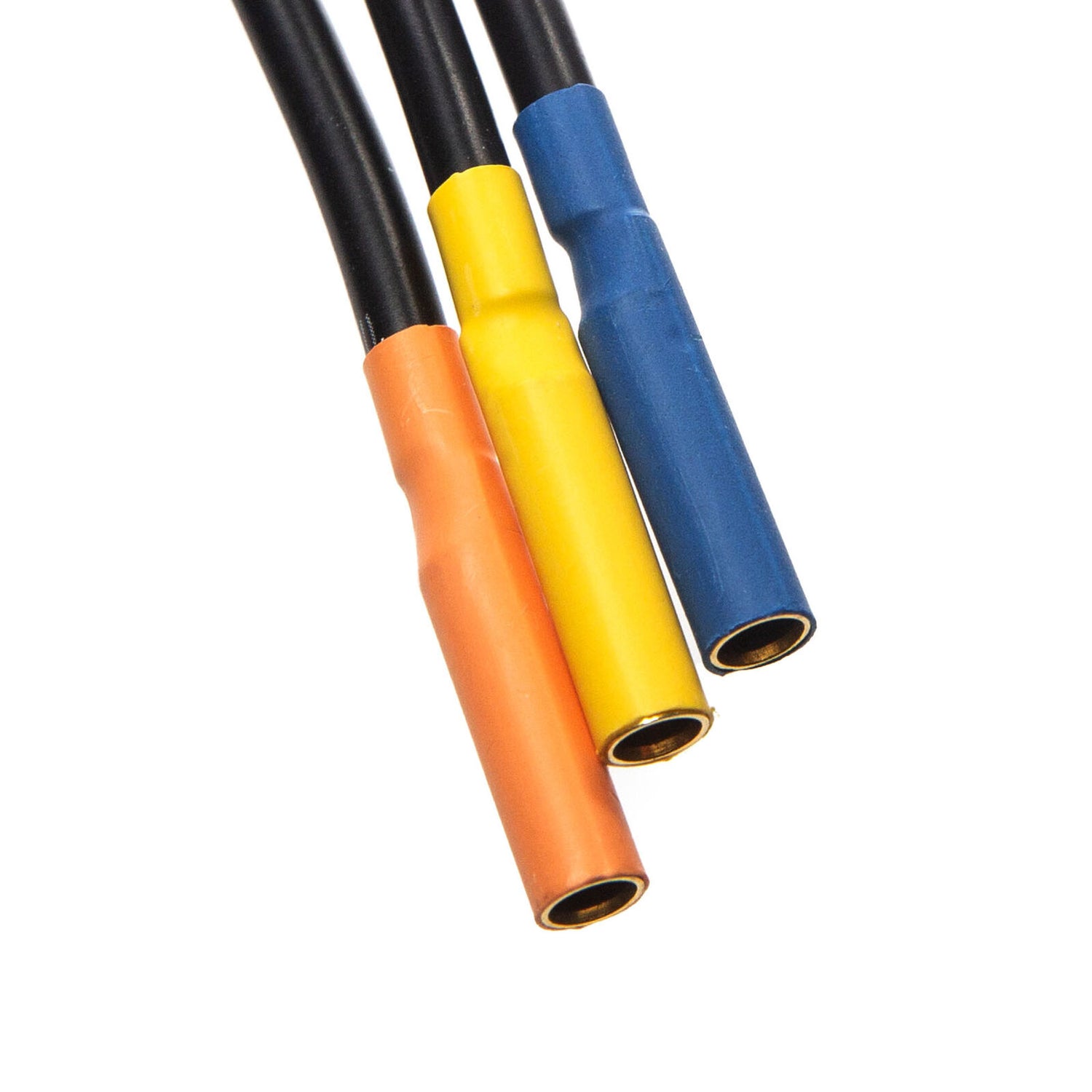

- Motor Output Lead: 4
- Motor Type: Brushless
- Number of Poles: 4
- Outer Diameter: 1.41" (36 mm)
- Output: 625W
- Overload Protection: Yes
- Part Type: Electronics
- Product Application: Surface
- Product Height: 1.3" (33 mm)
- Product Length: 1.7" (43 mm)
- Product Weight: 0.255 lb
- Product Width: 2.1" (53 mm)
- Programmable: Yes
- Programming Options: Button, Programming Box, Smartlink App, On Screen Text Gen
- Reverse: Yes
- RPM/Volt (Kv): 4000Kv
- Sensor Type: Sensorless
- Sensored: No
- Shaft Diameter: 0.125" (3 mm)
- Speed Control: Included
- Technology: Smart
- Time Delay Brake: Yes
- Water-Resistant: Yes
