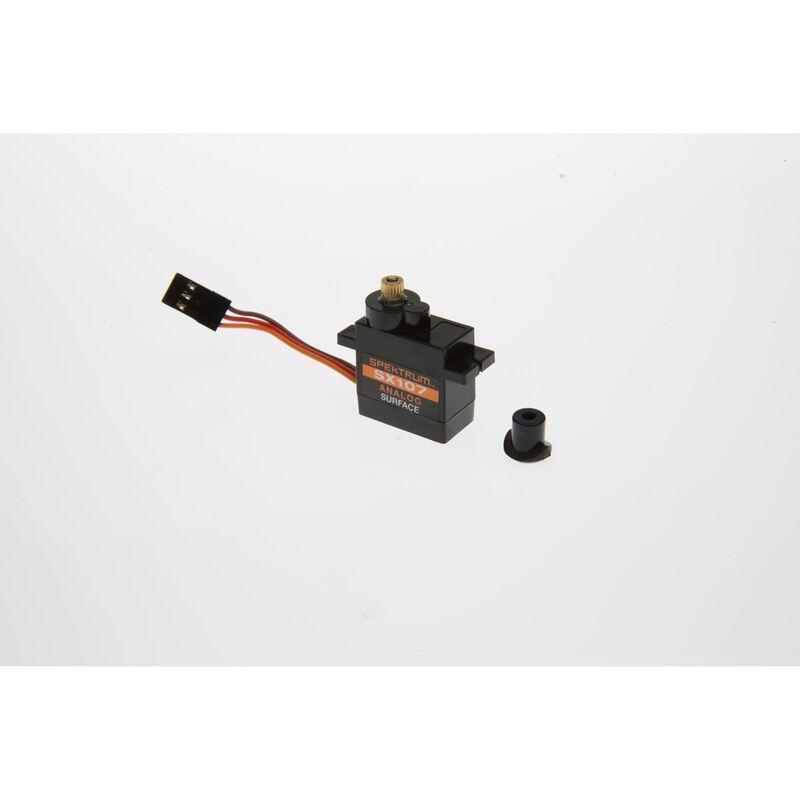

SX107 Micro Analog Metal Gear Surface Servo
Regular price
$14.99
Unit price
/
Unavailable
SX107 Micro Analog Metal Gear Surface Servo is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Details
The SX107 is purpose built for steering micro and mini models and is a great servo for utility functions like 2 – Speed transmissions and Dig. With its durable design combined with dual bearing output support, metal-gear durability, smooth coreless motor operation, an impressive 41.8 oz-in torque rating, the SX107 is the perfect mighty micro servo for your small scale vehicles.In The Box
- - SX107 Micro Analog Metal Gear Servo
- - Spline to servo saver adapter
- - Additional 4 inch extension
Product Specifications
Specs
| Servo Type | Analog |
| Servo Size Category | Mini and Micro |
| Speed | 4.8V 0.09 sec/60 deg, 6.0V 0.08 sec/60 deg |
| Torque | 4.8V 34.9oz/in (2.5kg/cm), 6.0V 41.8oz/in (3.0kg/cm) |
| Servo Operating Voltage | 4.8 - 6.0V |
| Maximum Servo Torque | 40-99 oz-in |
| Product Height | 0.87" (22.2mm) |
| Product Length | 0.89" (22.8mm) |
| Product Weight | 0.35oz (10g) |
| Product Width | 0.49" (12.5mm) |
| Programmable | No |
| Maximum Servo Speed | 0.050-0.099 sec |
| Application | Small scale vehicles |
| Gear Material | Metal |
