HORIZON HOBBY | SKU:
SEHREEFS03

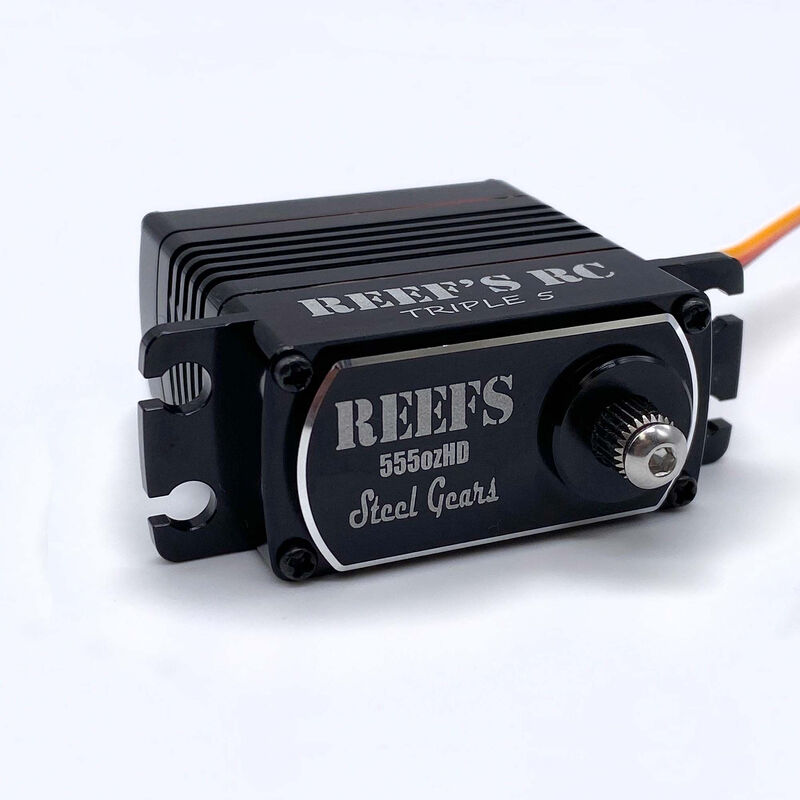

Triple5 V2 Standard Digital Metal Gear Waterproof Servo, Black - SEHREEFS03
Regular price
$138.99
Unit price
/
Unavailable
Triple5 V2 Standard Digital Metal Gear Waterproof Servo, Black - SEHREEFS03 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Details
Overview
High Torque High Speed HV Coreless WATERPROOF : Not a Submarine
Use a minimum of m3x8mm screw to attach the servo horn to output shaft. Use of a shorter screw can cause failure and will void your warranty.
Product Specifications
| Deadband | 2µs |
| Servo Type | Digital |

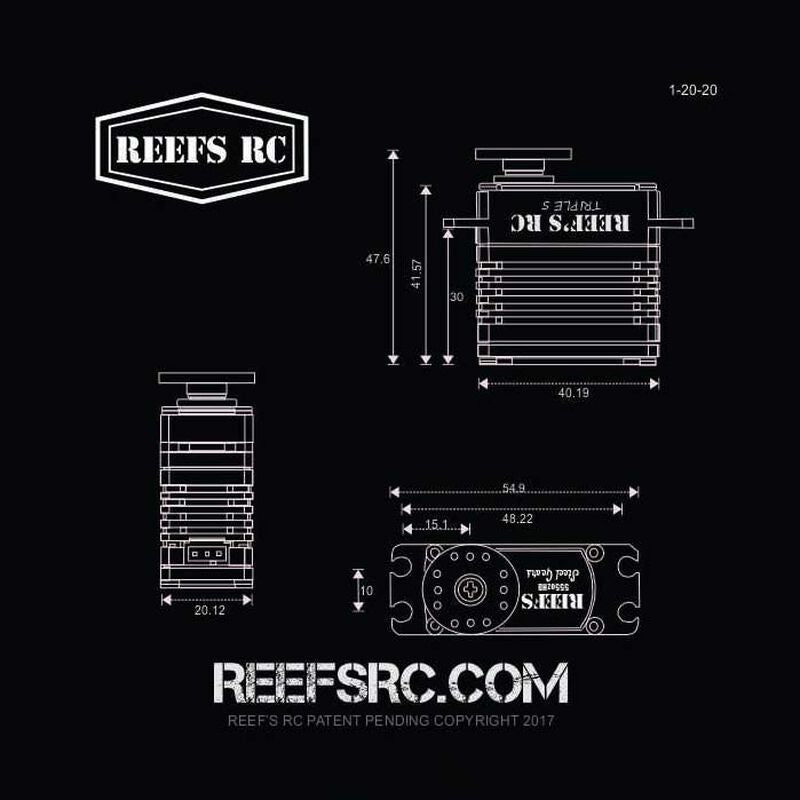

| Product Height | 1.5" (38 mm) |
| Servo Operating Voltage | 6.0 - 7.4V (HV) |
| Connector Type | Universal |
| Maximum Servo Speed | 0.20 sec/60 deg @ 6.0V, 0.17 sec/60 deg @ 7.4V |
| Product Length | 1.6" (41 mm) |
| Bearing | Dual Ball Bearings |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Product Width | 0.8" (20 mm) |
| Servo Size Category | Standard |
| Maximum Servo Torque | 500oz/in @ 6.0V, 555oz/in @ 7.4V |
| Application | 1/10 - 1/8 Cars, Trucks |
| Product Weight | 2.2oz (62g) |
| Spline Count | 25 - Tooth |
| Water-Resistant | Yes |
