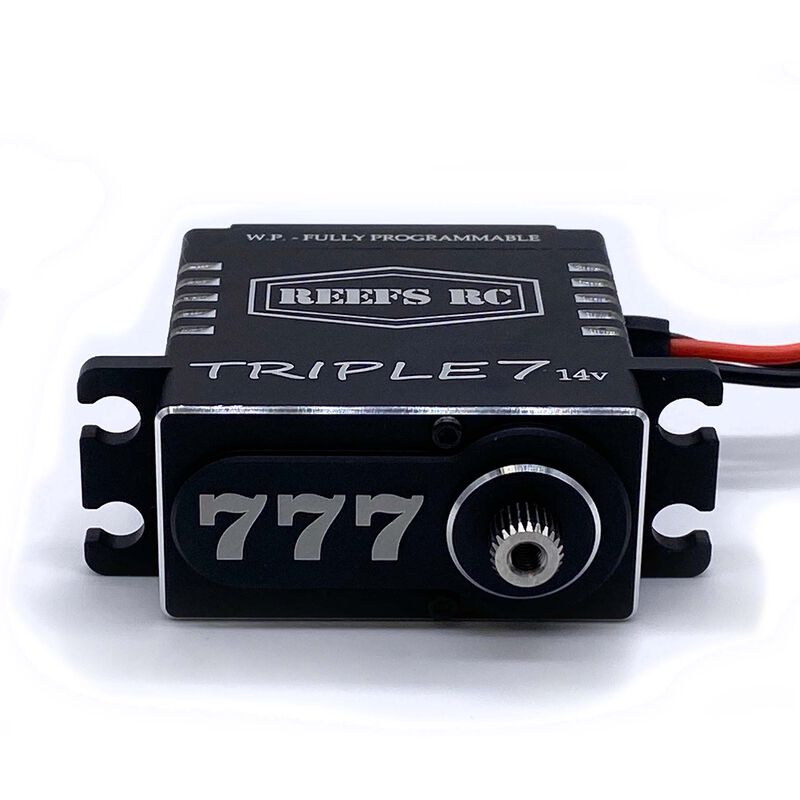

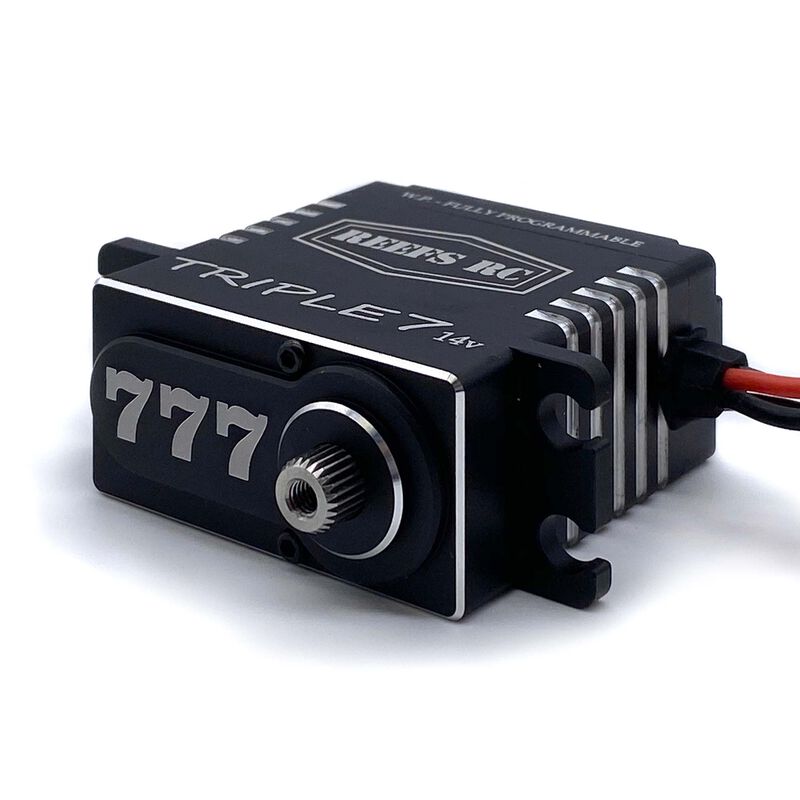

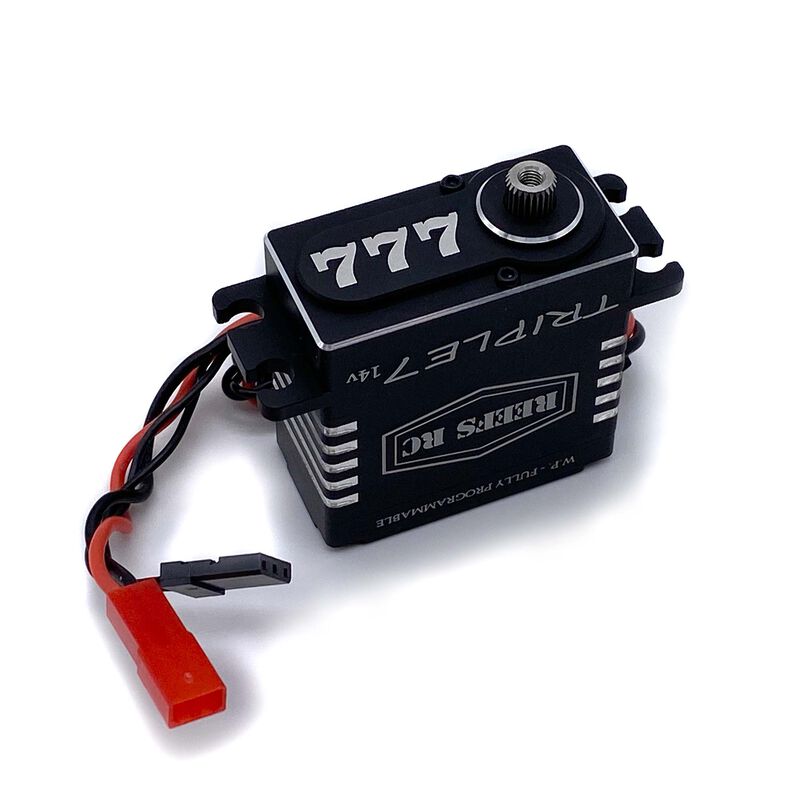

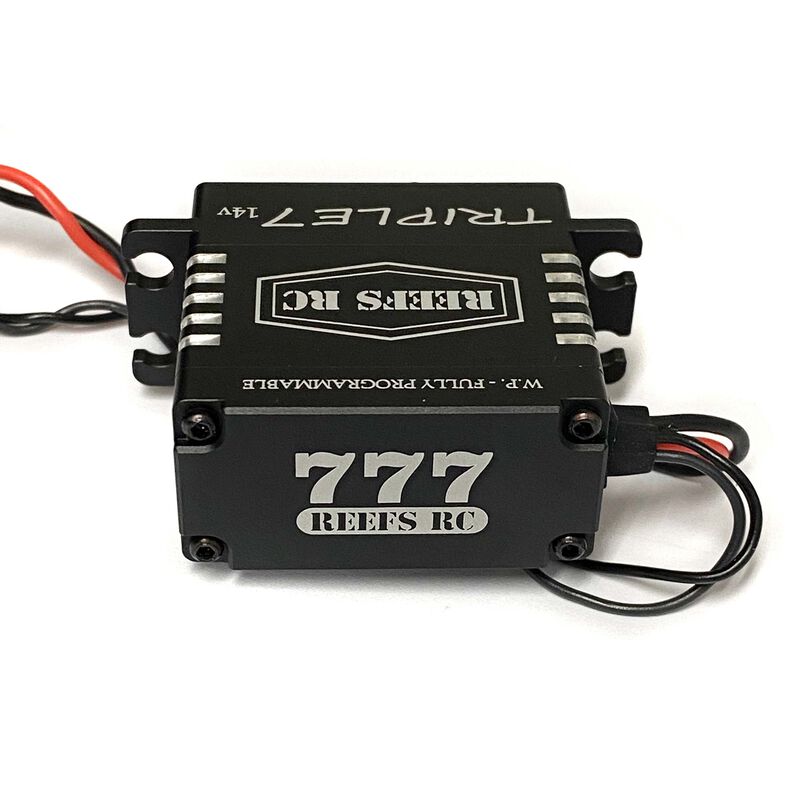

Triple7 14V Servo, Programmable - SEHREEF777
Triple7 14V Servo, Programmable - SEHREEF777 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Details
Overview
The all new Triple7 14v Fully Programmable Servo by REEFS RC is built from the ground up using the new REEFS RC CNC Case and features full parameter controls via REEFS Software.
Utilizing the REEFS USB Link (sold seperately) you will have the ability to increase output power, adjust the servo angle, sensitivity, inversion and so much more with the click of a button. Lipo to Servo Connectors give you the ability to run your battery of choice, without relying on your ESC for power.
Product Specifications
| Deadband | 2µs |
| Input Voltage | 10V ~ 14V |
| Product Height | 1.63" (41 mm) |
| Servo Type | Digital |
| Product Width | 0.78" (20 mm) |
| Servo Size Category | Standard |
| Programmable | Yes |
| Connector Type | JST-RCY, Universal |
| Application | 1/10 Cars, Trucks |
| Maximum Servo Speed | 0.10 sec/60 deg @ 11.1V, 0.09 sec/60 deg @ 12.0V, 0.08 sec/60 deg @ 14.0V |
| Product Weight | 3.12oz (88g) |
| Product Length | 1.57" (40 mm) |
| Spline Count | 25 - Tooth |
| Water-Resistant | Yes |
| Bearing | Triple Ball Bearings |
| Bushing Or Bearing | Bearing |
| Gear Type | Metal |
| Servo Operating Voltage | 10.0V - 14.0V (HV) |
| Maximum Servo Torque | 666oz/in @ 11.1V, 700oz/in @ 12.0V, 777oz/in @ 14V |
